Product >>ECG/EKG cables>>compatible Suzuken kenz PC-109 ECG machine patient cable

Description: Kenz 10-Lead EKG Cable IEC/AHA/AAMI color coding are available, DIN 3.0 end
Connector: DB 15 pins connector to the machine; medical TPU jacket; double shileding; anti-noise design; fully compatible with the original cable;
Compatibility: Kenz ECG 108/110,1203,1205 Kenz Cardico 302

All the following cable types are available:

Part No

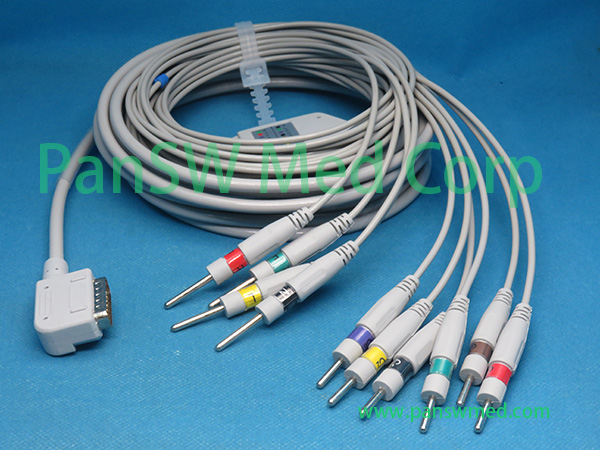

integrated; IEC, DB15M-Din3.0

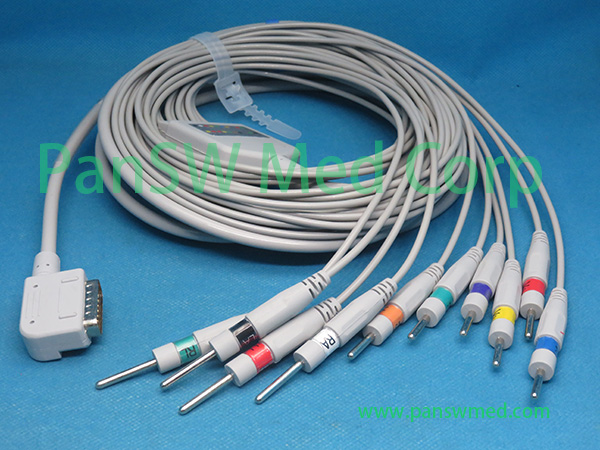

integrated;  AHA, DB15M-Din3.0

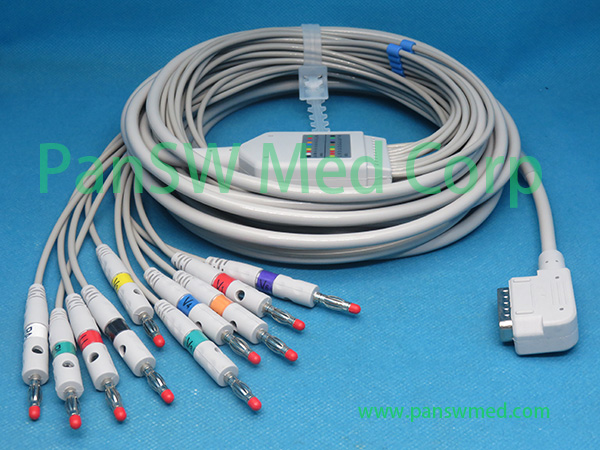

integrated; IEC, DB15M-Banana4.0



integrated; AHA, DB15M-Banana4.0



integrated; IEC, 10 leads clip end



integrated; AHA, DB15M-clip

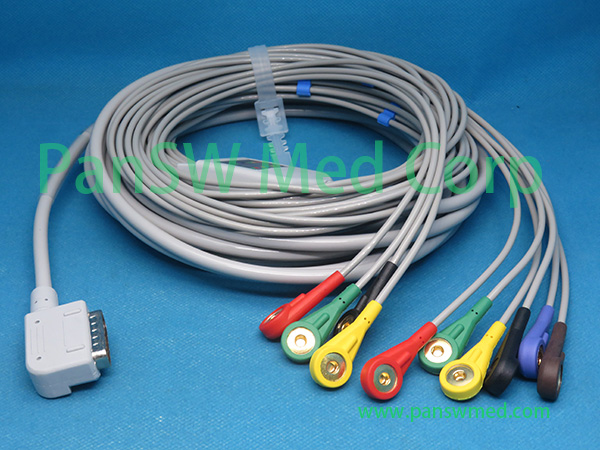

integrated; IEC, DB15, snap



integrated; AHA, DB15M-snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

cable diagram

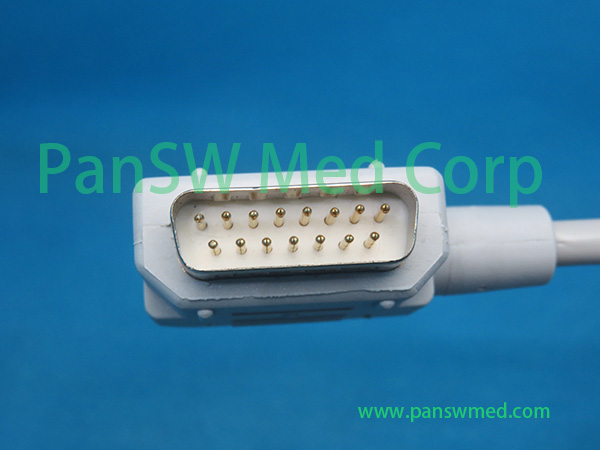

Kenz ECG cable pinout

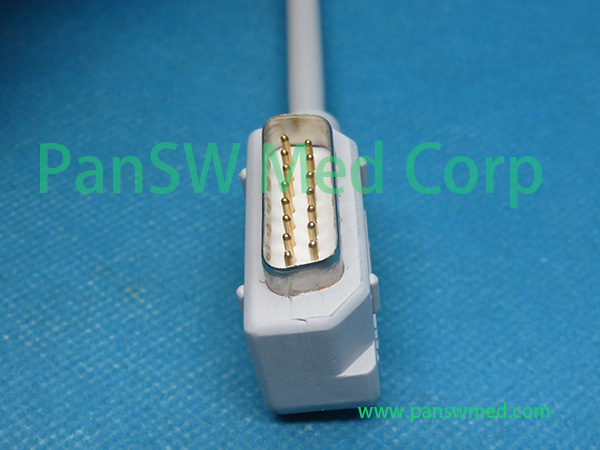

connector view 1

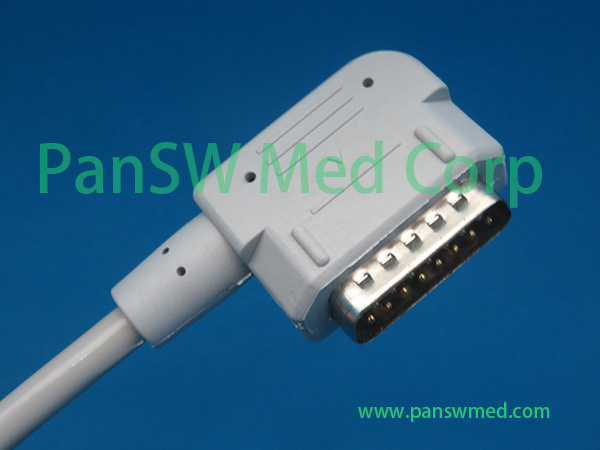

connector view 2

multi use adapter to use with disposible electrodes...

ten leads ECG connector banana to adapter to disposible ecg electrodes

Related products:
Suction ball ECG electrode Limb clamps ECG electrode

universal flat clip adapter banbana to ecg electrodes

suction balls ecg electrode ecg electrode limb clamp ECG electrodes adapter

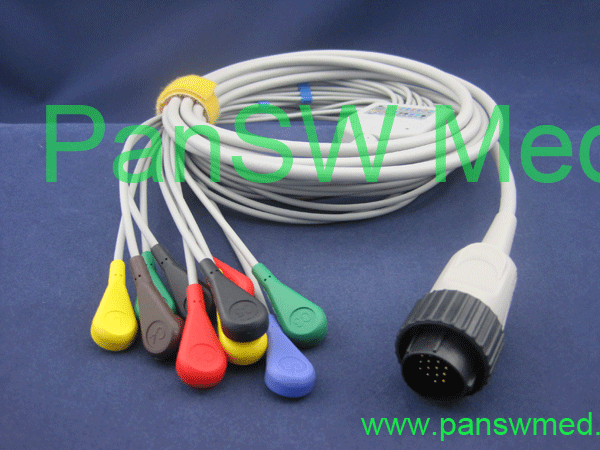

compatible Kenz PC-104 EKG cable compatible NEC one piece 10-lead
