Product >>ECG/EKG cables>>Mortara 10 leads EKG cable for ELI 200/100/50

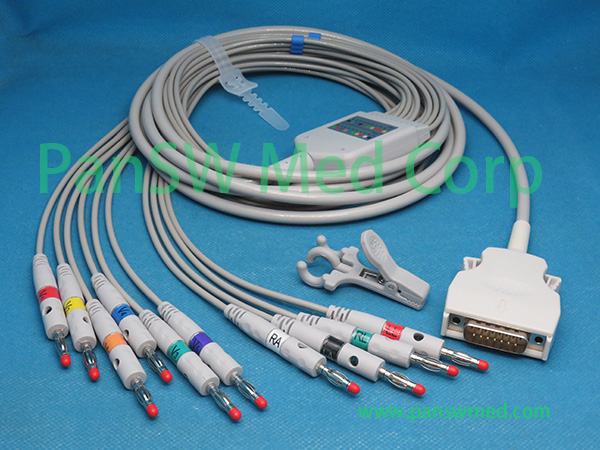

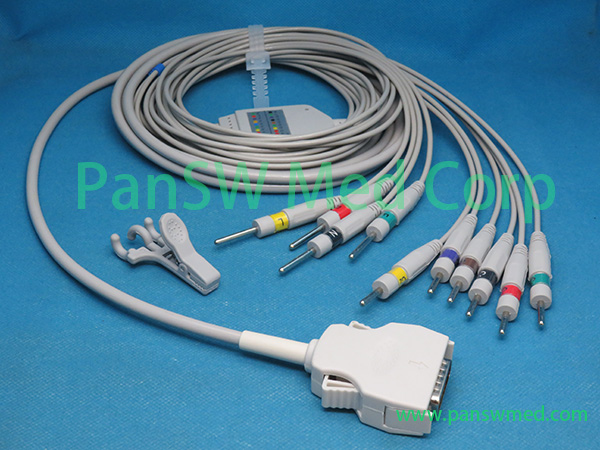

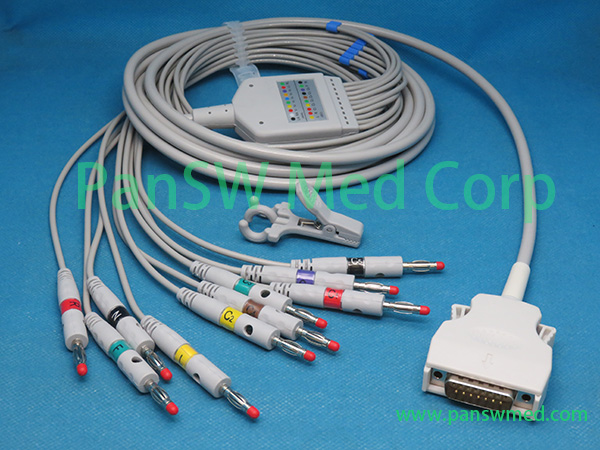

Mortara 10 leads EKG cable for ELI 200 100 50

Description: 10 leads EKG cable, IEC/AHA/AAMI color coding available banana end, clips end, snaps end available; DB15 connector, impedance protected; Medical TPU jacket, shielded cable; anti-noise design; gold plated pins; fully compatible with the original cable;
Compatible with Mortara ELI200/100/50,
For Mortara ELI250/210 cable, please check here

Note: there is different applications on ELI100 machines, so please contact PanSW if you are looking for 9293-021-50 cable. Also we can sell this Mortara D-sub connector set for repair junction box cable use.

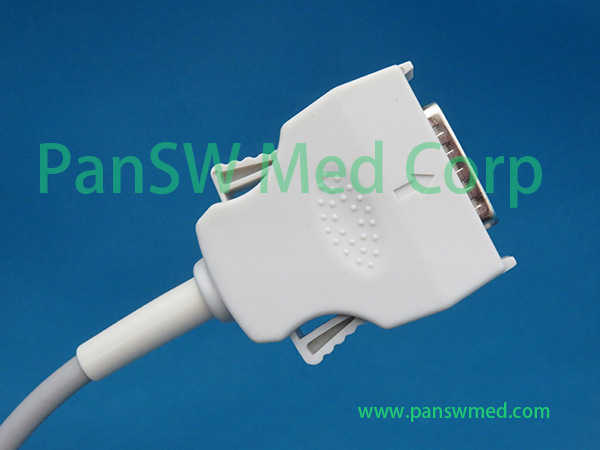

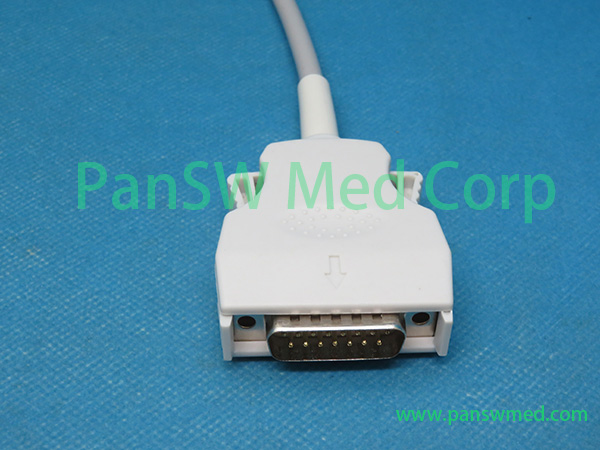

Mortara ELI 200 connector connector view 1

For all the types cables, please refer list below:

EKG-10018A



integrated; IEC, DB15M-Din3.0

EKG-10018B



integrated; AHA,DB15M-Din3.0

EKG-10018C



integrated; IEC,DB15M-Banana4.0

EKG-10018D

9293-022-50

integrated; AHA,DB15M-Banana4.0

EKG-10018E



integrated; IEC, DB15M-clip

EKG-10018F



integrated; AHA, DB15M-clip

EKG-10018G



integrated; IEC, DB15M-snap

EKG-10018H



integrated; AHA, DB15M-snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

cable diagram

mortara ELI 200 ECG cable pinout

Original part number: 9293-022-50

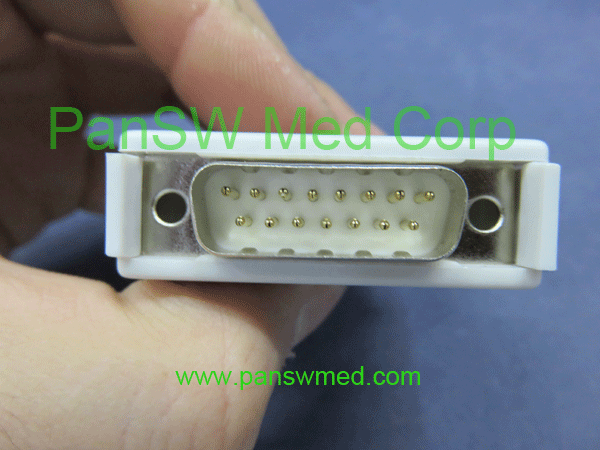

connector view 2

ECG electrodes adapter

multi use adapter to use with disposible electrodes...

ten leads ECG connector banana to adapter to disposible ecg electrodes


Related products:

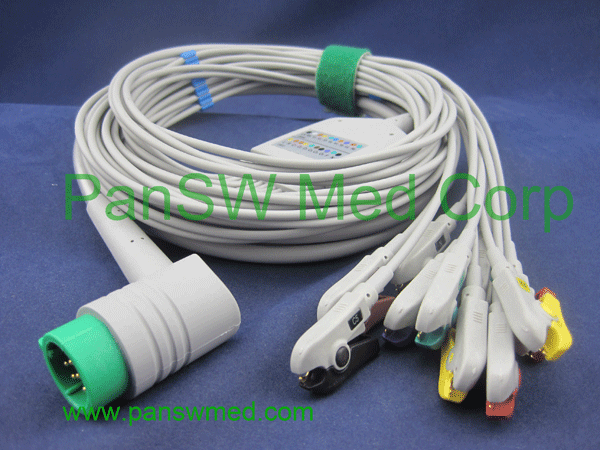

compatible Medtronic Physio Control 10
leads integrated EKG cable
compatible Mortara ELI250 /ELI210 ECG cable compatible Mortara holter cable
medtronic physio control ECG cable Mortara ELI210 ELI250 ECG cable Mortara ten leads holter cable

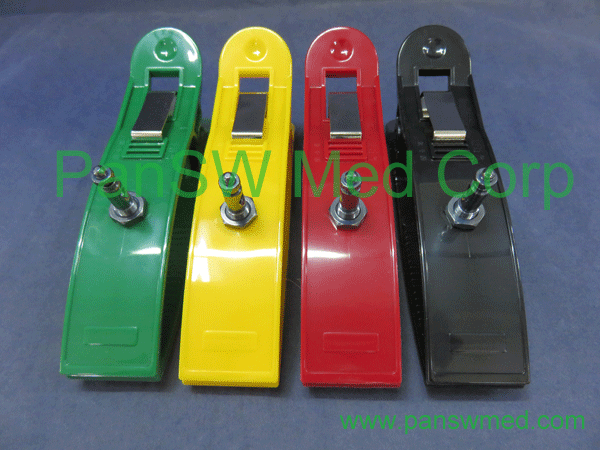

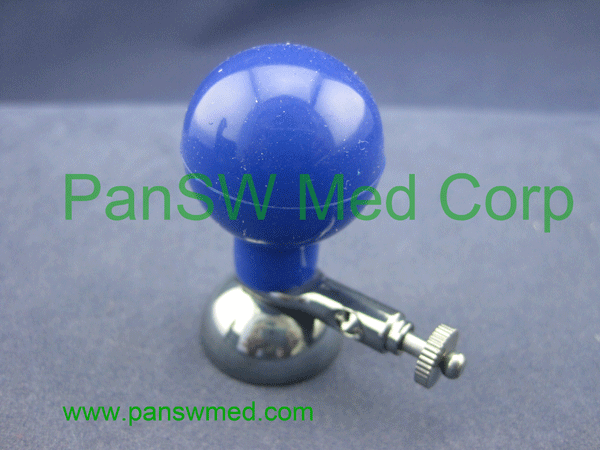

Suction ball ECG electrode Limb clamps ECG electrode
