Description please refer to below
for detailed pictures please click here

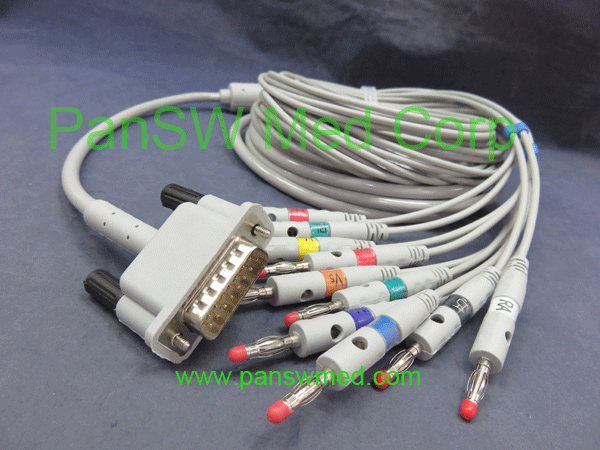

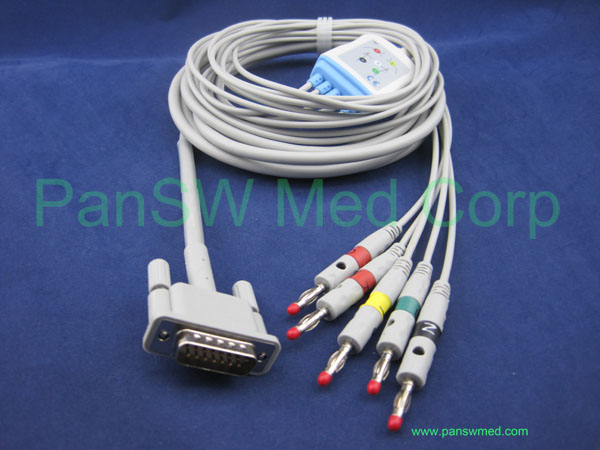

Compatible with: Cardiette/Cardioline AR600/AR1200/AR2100
AHA/IEC color coding, banana end, clips end, etc available;

Description: all cables are carefully shielded to protect the signal to the best; connectors are molded strong and durable; cables are TPU jacket--smooth and durable;

Please check the list following for the options avaiable, if you need customized specifications please feel free to contact Pansw

original part number: 63050025

Part No	OEM No	Description
EKG-10019A		integrated; IEC, DB15M-Din3.0
EKG-10019B		integrated; AHA,DB15M-Din3.0
EKG-10019C		integrated; IEC,DB15M-Banana4.0
EKG-10019D		integrated; AHA,DB15M-Banana4.0
EKG-10019E		integrated; IEC, DB15M-clip
EKG-10019F		integrated; AHA, DB15M-clip
EKG-10019G		integrated; IEC, DB15M-snap
EKG-10019H		integrated; AHA, DB15M-snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

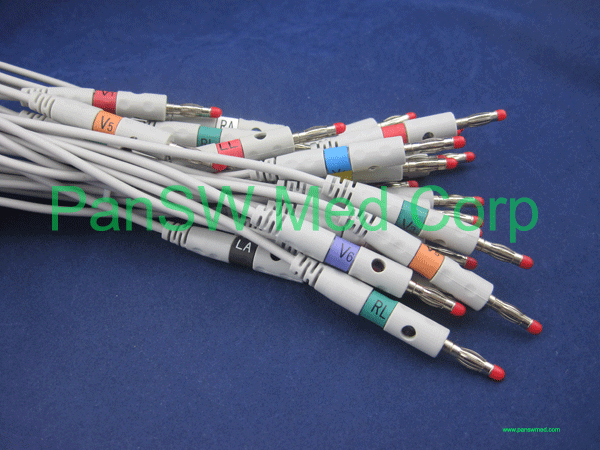

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

Description please refer to above
for detailed pictures please click here

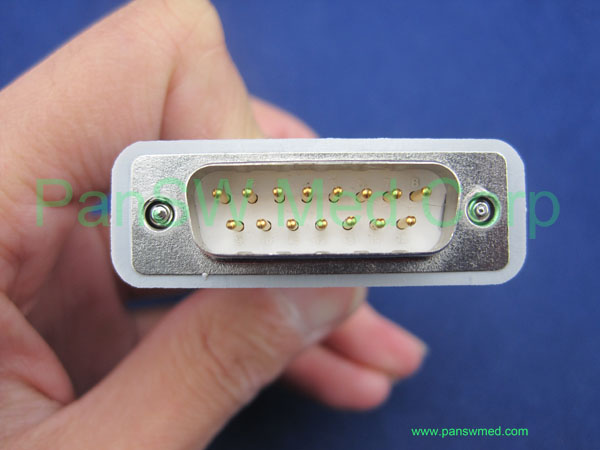

pinout of Cardiette ECG cable
