Product >>ECG/EKG cables>>compatible Bexen Cardio Reanibex 800 ECG machine patient cable

bexen cardio reanibex 800 ecg patient cable

Part No OEM No Description
EKG-10039A integrated; IEC, DB15M-Din3.0
EKG-10039B  integrated;  AHA, DB15M-Din3.0
EKG-10039C integrated; IEC, DB15M-Banana4.0
EKG-10039D integrated; AHA, DB15M-Banana4.0
EKG-10039E integrated; IEC, 10 leads clip end
EKG-10039F integrated; AHA, DB15M-clip
EKG-10039G integrated; IEC, DB15, snap
EKG-10039H integrated; AHA, DB15M-snap

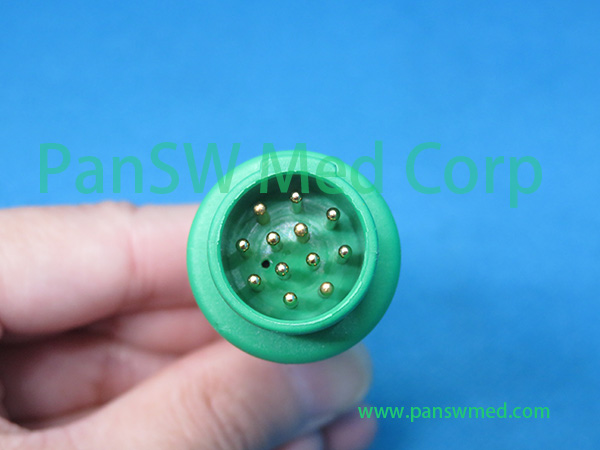

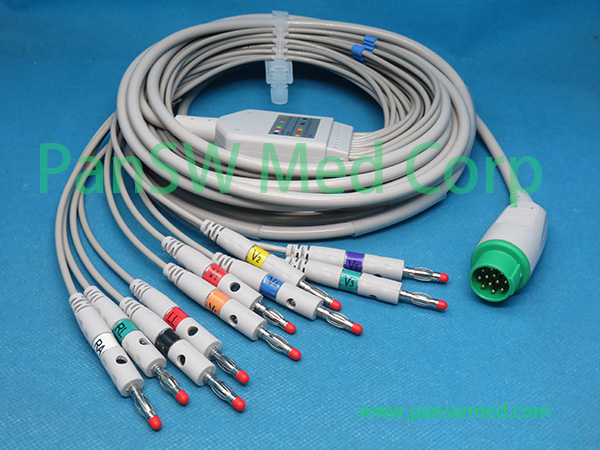

Compatible with: Bexen Cardio Reanibex 800 ten leads ECG cable
Description: ten lead, TPU jacktet, gold plated pins; anti-noise design;
AHA/IEC color coding, banana end, clips end, etc available;

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

compatible bexen cardio reanibex 800 ecg cable

ECG electrodes adapter

multi use adapter to use with disposible electrodes...

ten leads ECG connector banana to adapter to disposible ecg electrodes

more details for cable structure here:

Related products:

compatible Bionet one piece ten leads
ECG cable with leadwire
compatible Edan Spo2 cable & sensor compatible Edan ECG cable
Edan spo2 cable
