| models | cables type | connectors | PanSW part link | |

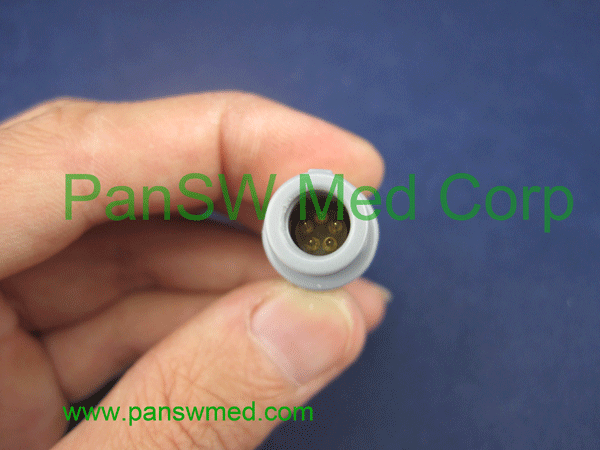

| SpO2 sensor | biolight spo2 probe, 5 pins Lemo connector
|
5 pins single bit | RSP-10003A | |
biolight M900; M7000; M9500; A8 Modular spo2 probe
|
RSP-10149A | |||

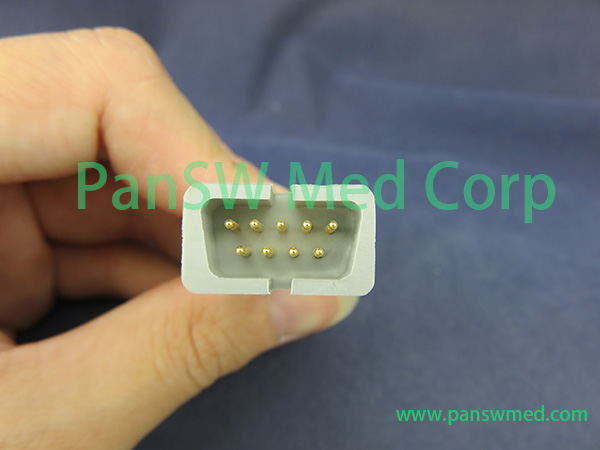

biolight A series digital spo2 sensor |
RSP-10150A | |||
 |
RSP-10075A | |||
There are about 4 types Biolight ECG cables, we have listed as following, the first one is a 6 pins connector ECG cable, it is old models like M8, it is a typical Chinese models, it works on old fashioned Mindray PM9000, Edan M3, GE medical... the second one is a 12 pins big connector ECG cable, it works with M8500 M9500... the third one is a 12 pins big connector same as the second one, it works with newly sold M8000 ..., the appearance is same as the second one but there is an encryption ID chip inside the connector. the fourth one is a 12 pins connector, it is smaller than the second and the third one, it works with A series and th fourth one is also 12 pins, same connectors as the fourth one, but it is encrypted with a ID chip inside the connector, it usually with the newly released Q5 Q7 models.
|
||||
| biolight ECG cables | biolight ECG cable, 6 pins;
|
6 pins black connector | ECG-10009 | |

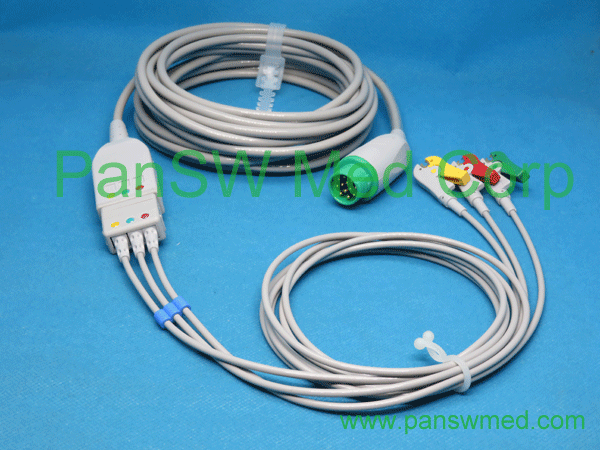

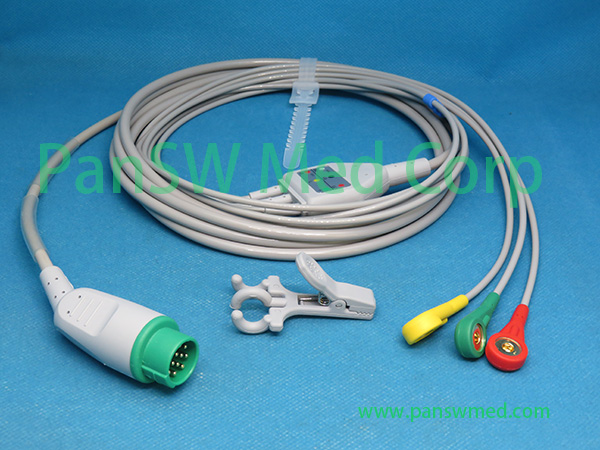

biolight ECG cable, 12 pins,
|
green connector, 12 pins, it works with M9500 M8500 we have both integarted or detachable |
ECG-10031A | ||
biolight A series ECG cable, new 12 pins |
this is a smaller, green connector for early released A series models | ECG-10070 | ||
|
there is a new cable also with the same connector, but it is with a built in ID chip inside the connector | |||
| NIBP hose |
|
this is traditionally used NIBP hose, same with Mindray, goldway, | NBT-10001 | |
|
NBT- 10001N |
|||
 |
newly realease models use this NIBP hose same as Mindray | NBT-10046 | ||
| nibp cuff | biolight nibp cuff
|
this cuff is a typcial Mindray style NIBP cuff, and it works on all the single hose NIBP systems. | NBC-10001D | |

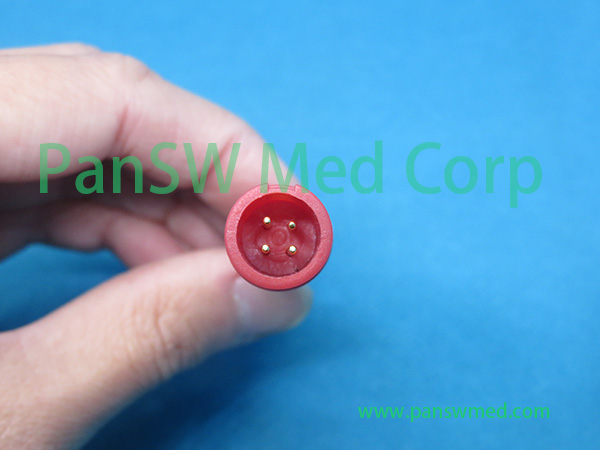

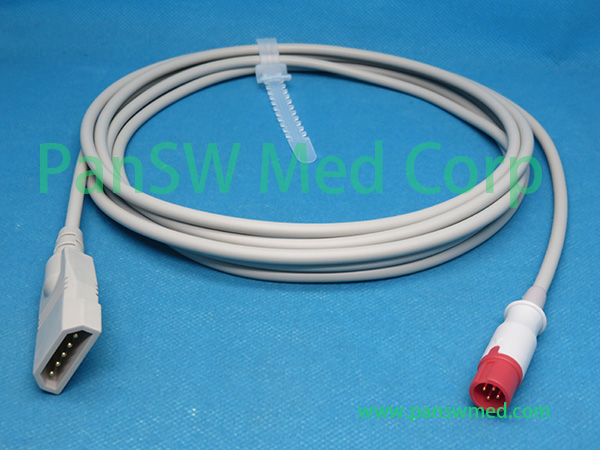

| IBP cable | biolight IBP cable
|
this 4 pins IBP cable | ||
18h*6d technical support, products consultion, please contact PanSW for the specific cable you need and avoid mistake and unnecessary cost.
