FAQs>>Mindray spo2 ECG NIBP accessories compatibility chart
all kinds of spo2 sensors spo2 cables ecg cables nibp cuffs for Mindray
1, Mindray spo2 sensors & spo2 cables;
2, MINDRAY ecg cables
3, Mindray nibp interconnect hoses;
4, nibp cuffs;
5, nibp connectors;
6, Temperature probe;
7. Mindray IBP cables
1, Mindray spo2 sensors & spo2 cables;
Mindray machine model |
Connector picture and description:
|
PanSW medical parts & reference link; |
|

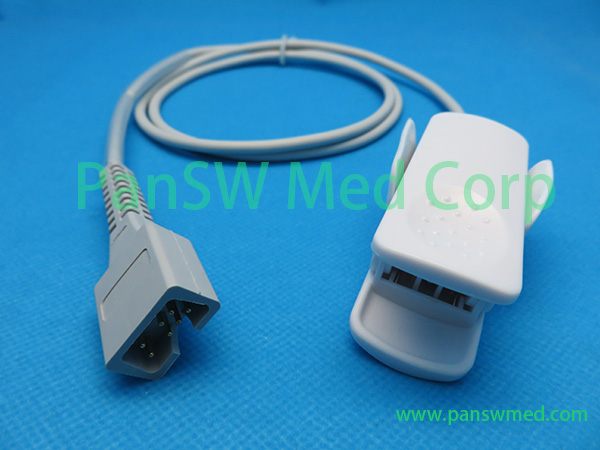

![](../SPO2_Products/spo2img/SpO2-sensor-compatible-Mindray-512F.jpg)

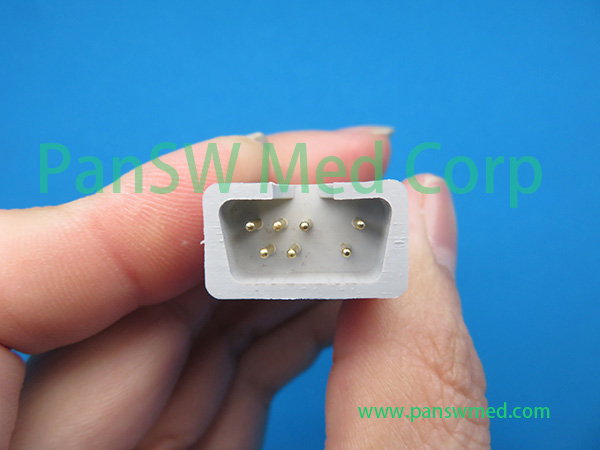

Mindray 512F SpO2 sensor
![](../SPO2_Products/spo2img/compatible-Mindray-512F-spo2-sensor-connector3.jpg)
|
RSP-10037A |
500A; 508; 509; |
![CSI spo2 sensor](../SPO2_Products/spo2img/CSI511-10L-spo2-sensor-connector.gif)

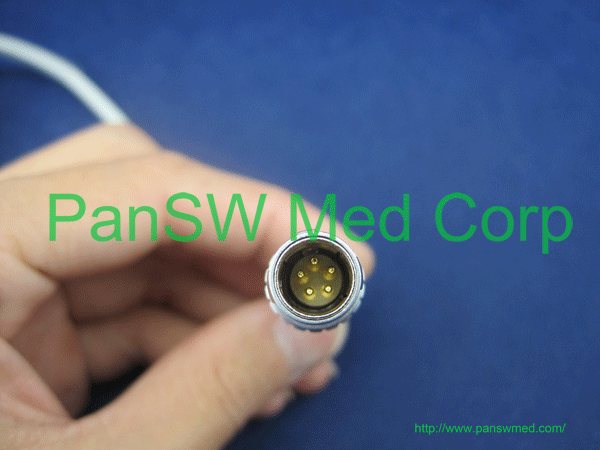

Lemo connector, 5 pins; metal connector; 10 feet (3 meters) length; |
RSP-10008A |
Masimo spo2 sensor for allo Mindray patient montiors with masimo modules |
![masimo LNOP spo2 sensor](../SPO2_Products/spo2img/masimo-LNOP-spo2-sensor1.gif)

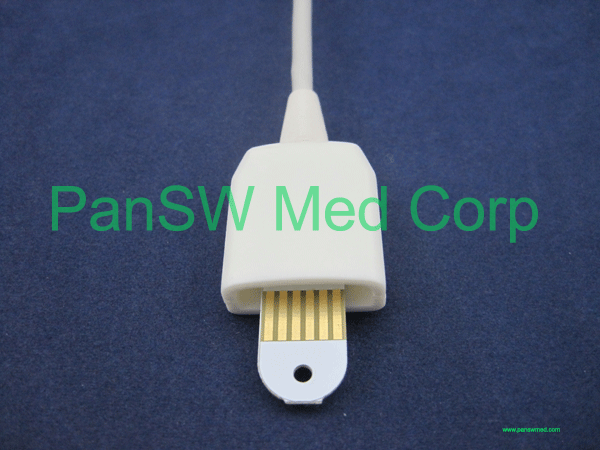

masimo LNOP spo2 sensor; 3 feet (1 meter) length; requires related spo2 cable; |
RSP-10031A |
Masimo spo2 sensor for allo Mindray patient montiors with masimo modules |
masimo LNCS spo2 sensor c onnector; 3 feet (1 meter) length; requires related spo2 cable; |
RSP-10032A |
PM50, PM60; VS-800 (Mindray module) |
![](../SPO2_Products/spo2img/Nellcor-DS100-SpO2-sensor-connector-non-oximax.jpg)

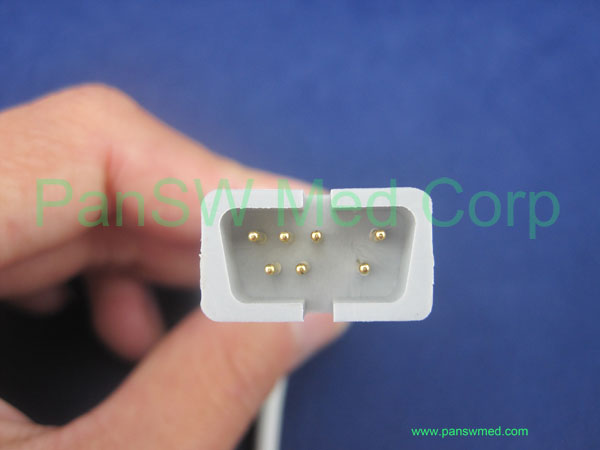

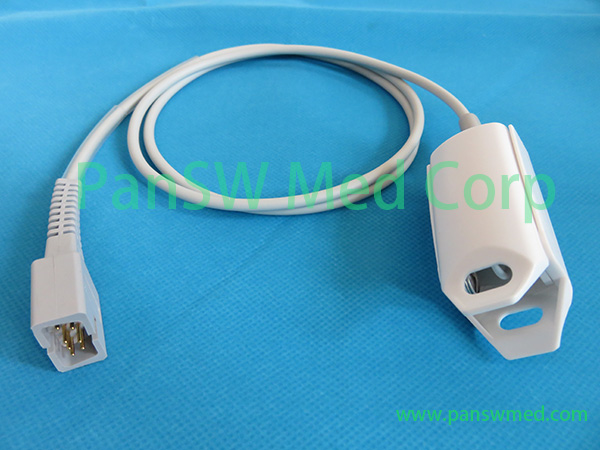

D-sub connector for all Mindray module spo2 sensor; in some cases requires related spo2 cable;
![](../SPO2_Products/spo2img/compatible-Nellcor-DS-100-SpO2-sensor1.jpg)
|
RSP-10037A |

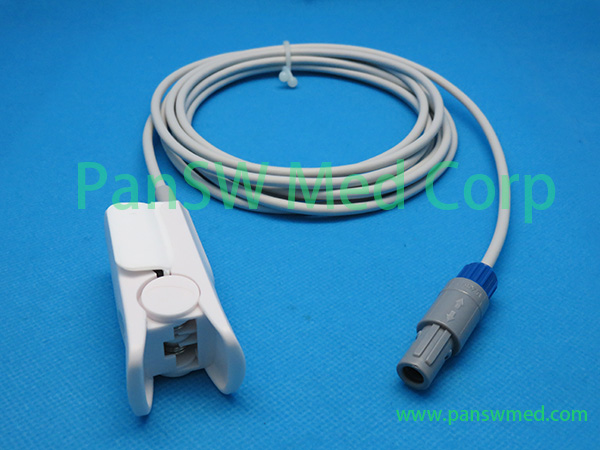

PM7000, 6201, PM8000, PM9000; VS800 (Mindray module), MEC-1000; MEC-1200; |
![](../SPO2_Products/spo2img/compatible-spo2-sensor-for-Mindray-PM9000.jpg)

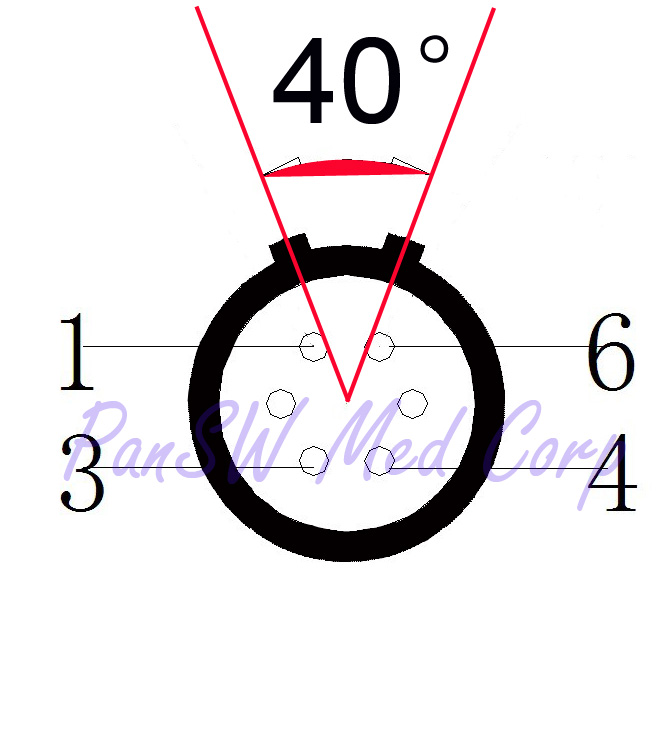

Redel 6 pins connector; dual notches with 40 degree;![mindray spo2 sensor mindray module](img/mindray-40-degree-spo2.jpg)
![](../SPO2_Products/spo2img/compatible-PM9000-Mindray-SPO2-sensor-adult-clip.jpg)

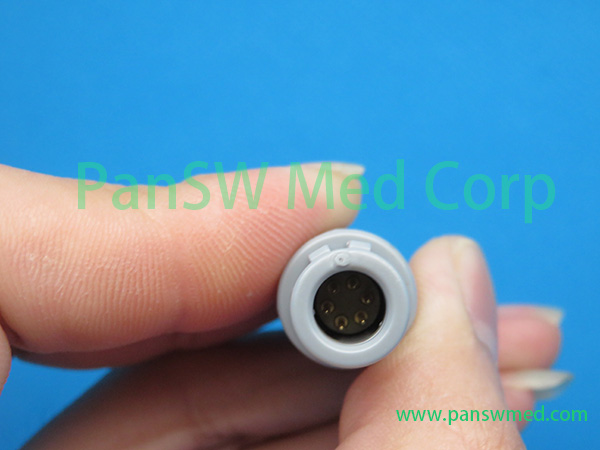

![](../SPO2_Products/spo2img/compatible-Mindray-SpO2-sensor-PM9000-connector.jpg)
![](../SPO2_Products/spo2img/compatible-Mindray-spo2-sensor-finger-clip.jpg)
![compatible-Mindray-0010-20-42594-spo2-cable](../SPO2_Products/spo2img/compatible-Mindray-0010-20-42594-spo2-cable.jpg)
the SpO2 adapter cable; PANSW part number: ADP-10016A
![](../SPO2_Products/spo2img/compatible-spo2-sensor-for-Mindray-PM9000.jpg)

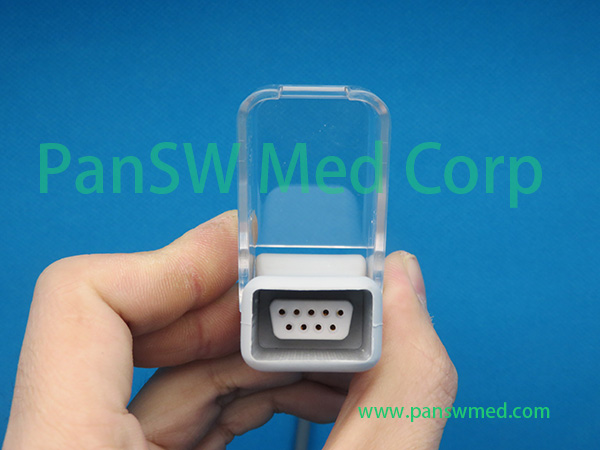

![](../SPO2_Products/spo2img/compatible-spo2-040-000332-00-Mindray-masimo-cable4 (2).jpg)
|
RSP-10038A |
PM9000,9100,9200,PM-6201,7000,8000,M1K0,M2K0; (before 2006,Jan.)
For Masimo modules! |
![mindray spo2 sensor mindray module](img/mindray-40-degree-spo2.jpg) |
|

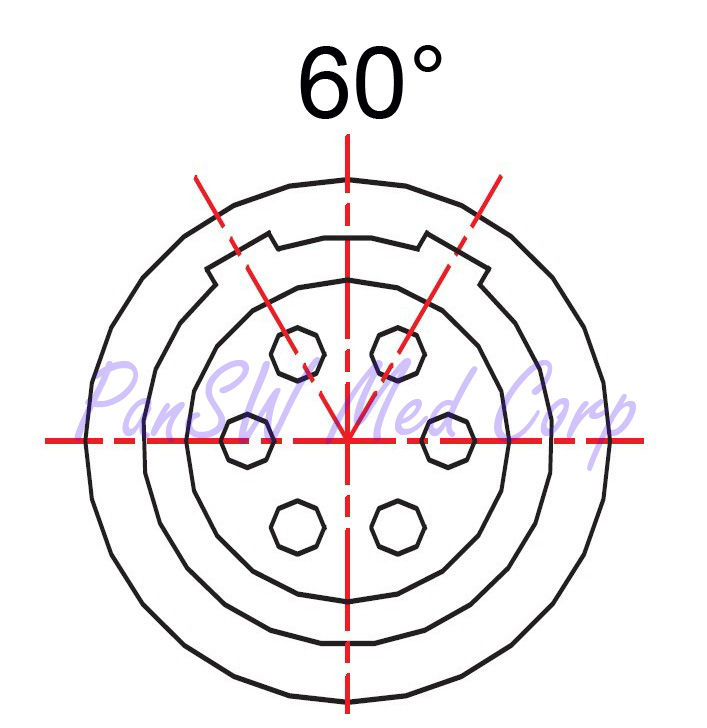

PM9000express(Masimo); PM8002; 9201;
(PM-6201, PM7000, PM8000, M1K0, M2K0 since 2006), T8
OEM No.0010-30-42625
For Masimo modules! |
![Mindray spo2 sensor masimo module](img/mindray-60-degree-spo2.jpg) |
RSP-10039A |
VS800, 8002, 9201,
PM7000 (Since Jan. 2006) patient monitor of Nellcor module and
6 pins redel connector (80°)
Nellcor Oximax module; (in a few case it uses with Masimo modules)
spo2 cable original part number:
0010-20-42595 |
![Mindray spo2 connector 80 degree](img/mindray-80-degree-spo2.jpg)

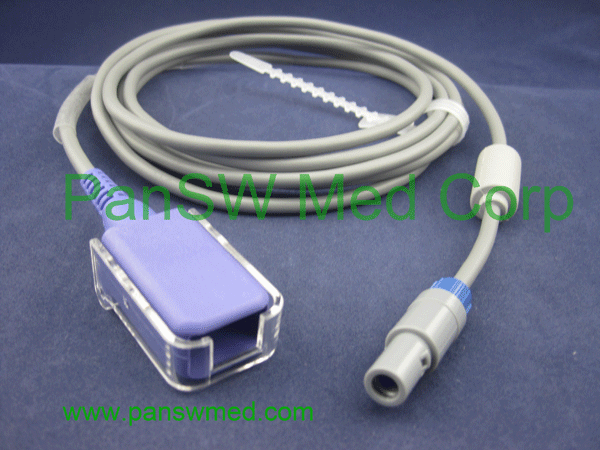

![mindray VS800 OXIMAX SPO2 CABLE 42595](../SPO2_Products/spo2img/goldway-oximax-spo2-cable-nellcor-oximax-cable.gif)
could be extension or integrated sensor from monitor to patient.
|
RSP-10172A
or
ADP-10016L |
PM5000, PM6000, PM8100 (Mindray modules) |

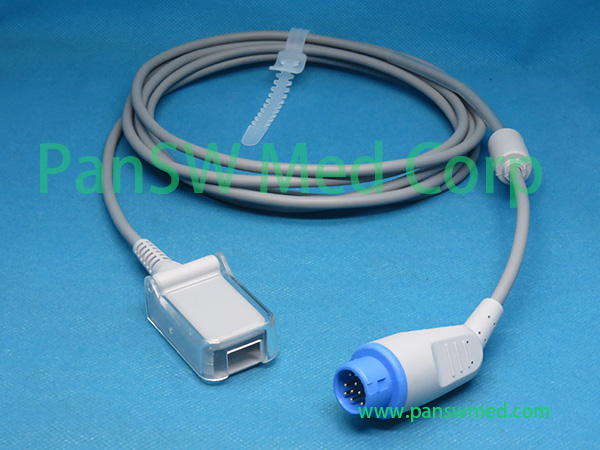

![](../SPO2_Products/spo2img/compatible-Philips-M1900B-SpO2-cable.jpg) |
ADP-10016E |

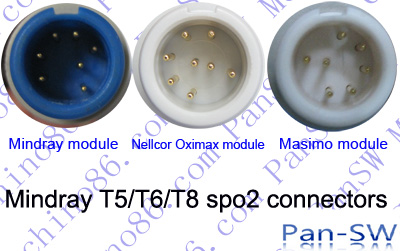

Mindray T5 T6 T8 |
![Mindray T5 T6 T8](../SPO2_Products/spo2img/Mindray-T5-T6-T8-spo2-sensor-connectors-comparison.jpg)
![](../SPO2_Products/spo2img/compatible-0010-20-42710-SpO2-cable-Mindray.jpg)

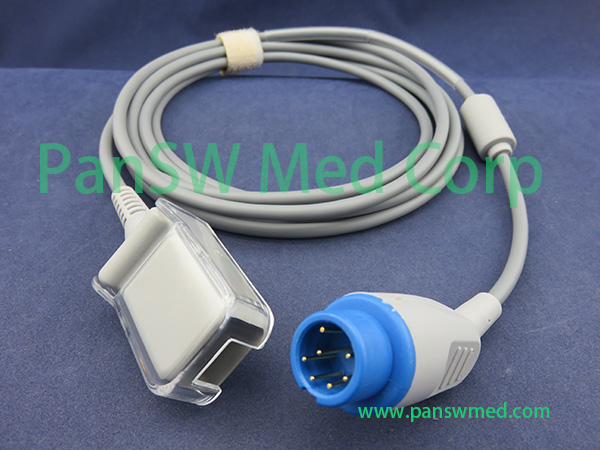

0010-20-42710 SpO2 cable
![](../SPO2_Products/spo2img/compatible-Mindray-512F-integrated-sensor.jpg)
integrated spo2 sensor

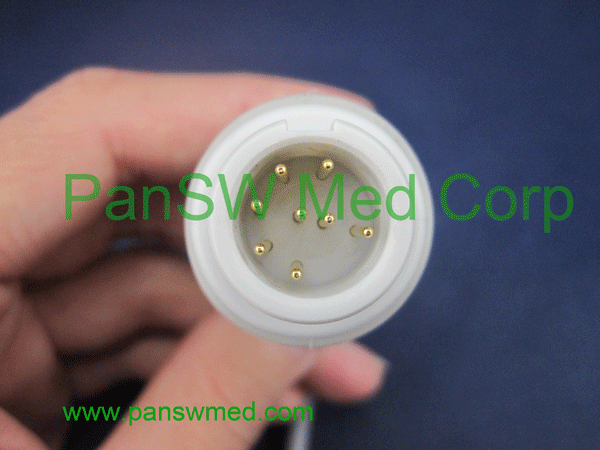

![](../SPO2_Products/spo2img/compatible-Mindray-Nellcor-Oximax-cable-0010-20-42712 拷贝.jpg)

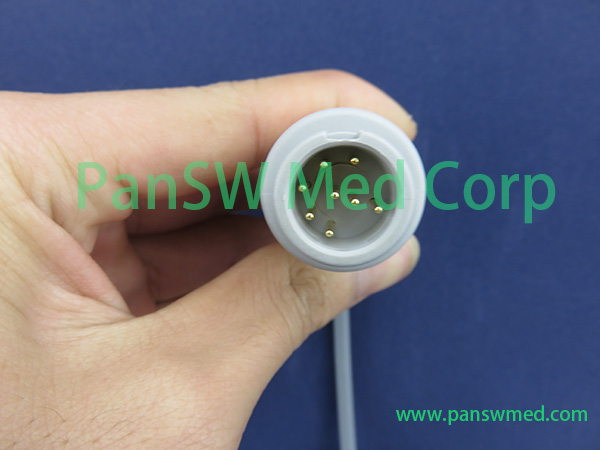

![](../SPO2_Products/spo2img/compatible-Mindray-Nellcor-Oximax-cable-0010-20-42712-connector.jpg)
|
ADP-10016K |
2, Mindray ECG cable;
Mindray machine model |
Connector picture and description: |
PanSW medical parts & reference link; |

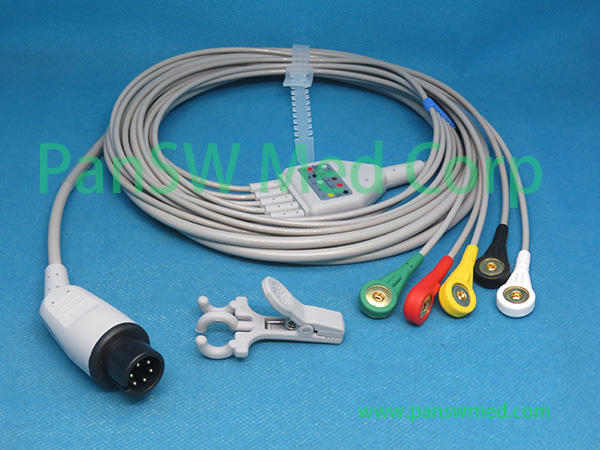

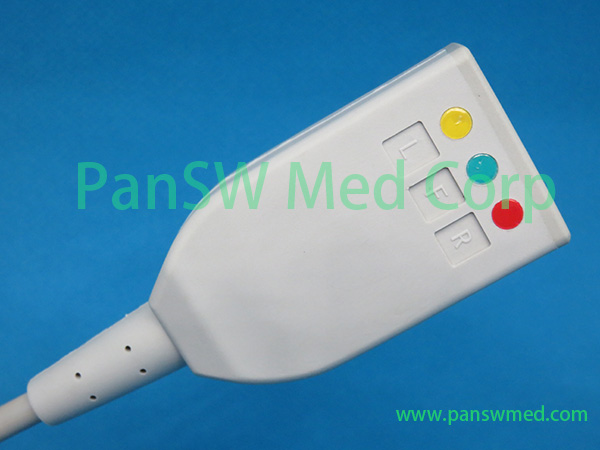

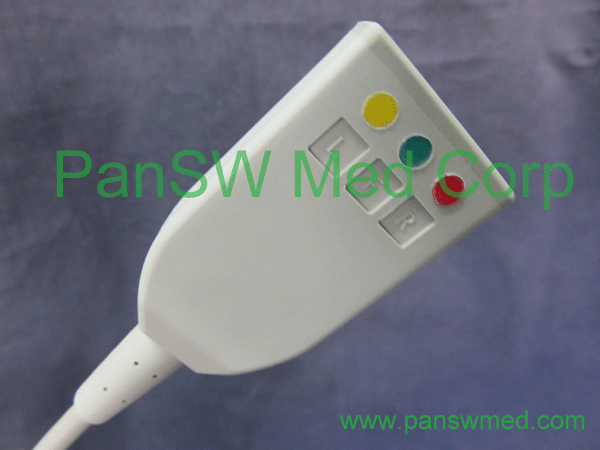

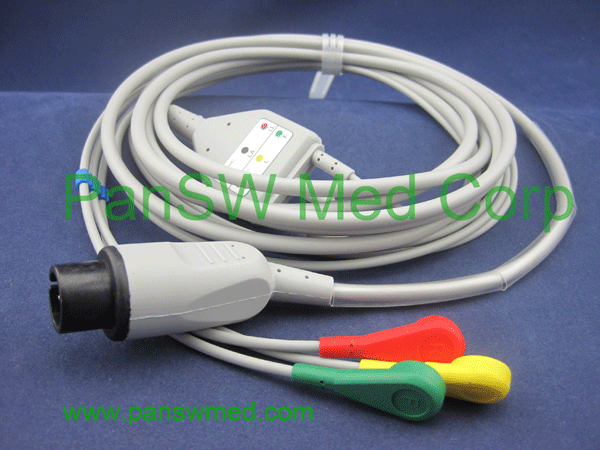

PM7000, PM8000, PM9000, MEC1000; MEC1200
6 pins AMP connector |

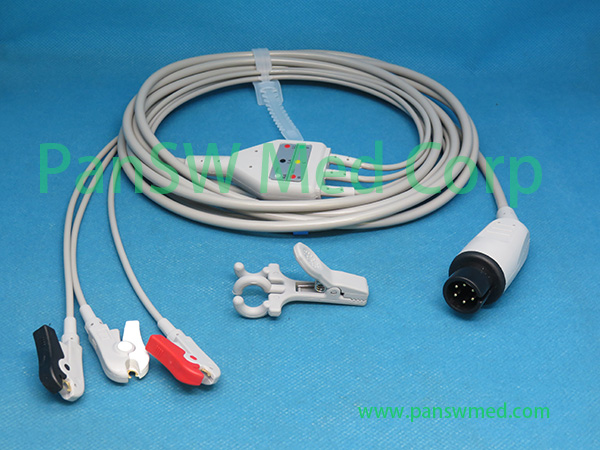

![](../patient_monitor_products/ECGimage/compatible-Mindray-PM9000-ECG-cable-AHA-3leads-clip.jpg)
![](../patient_monitor_products/ECGimage/compatible-Mindray-PM9000-ECG-cable-IEC-snap.jpg)

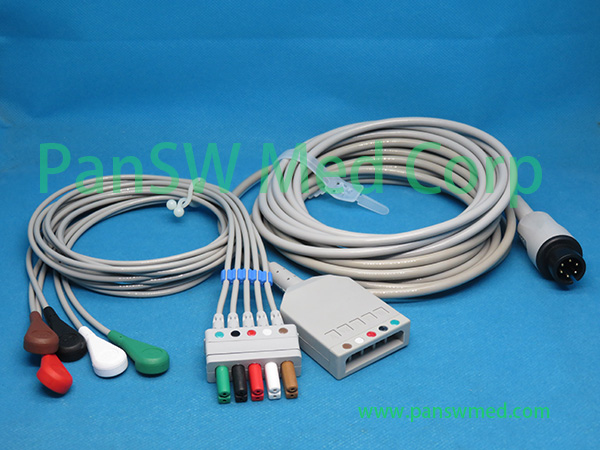

![](../patient_monitor_products/ECGimage/compatible-Mindray-0010-30-42728-with-trunk-for-PM9000-AHA-SNAP2.jpg)

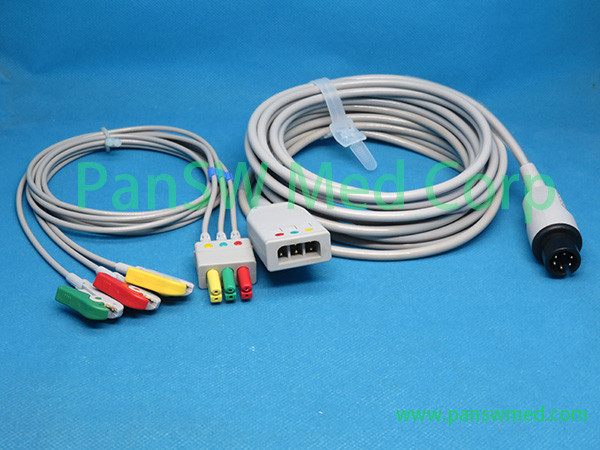

![](../patient_monitor_products/ECGimage/compatible-Mindray-0010-30-12377-with-leads.jpg)
![](../patient_monitor_products/ECGimage/compatible-Mindray-ECG-trunk-3leads1.jpg)
|
ECG-10009A |

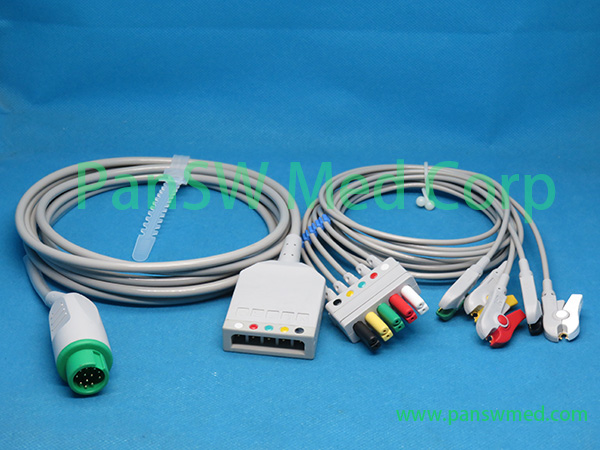

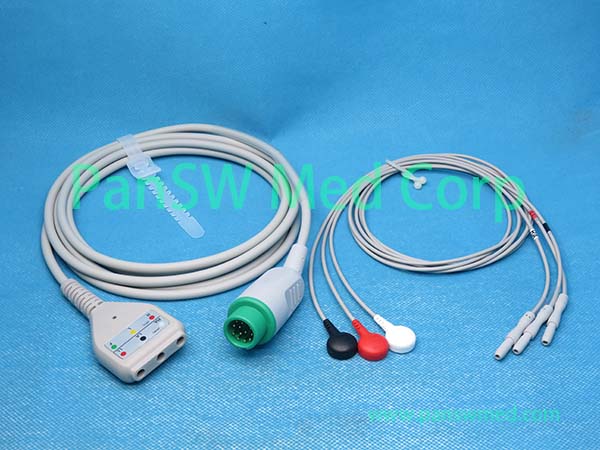

BeneView (T5,T6,T8)

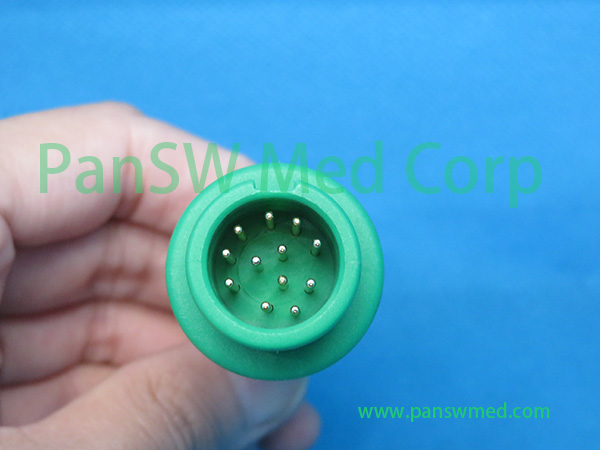

12 pins connector |
![](../patient_monitor_products/ECGimage/compatible-Mindray-0010-30-42719-ECG-trunk-cable4.jpg)
![](../patient_monitor_products/ECGimage/compatible-Mindray-0010-30-42719-with-leads.jpg)
![Mindray ECG leads](../patient_monitor_products/ECGimage/Mindray-ECG-leads-set-snap-AHA-color.gif)

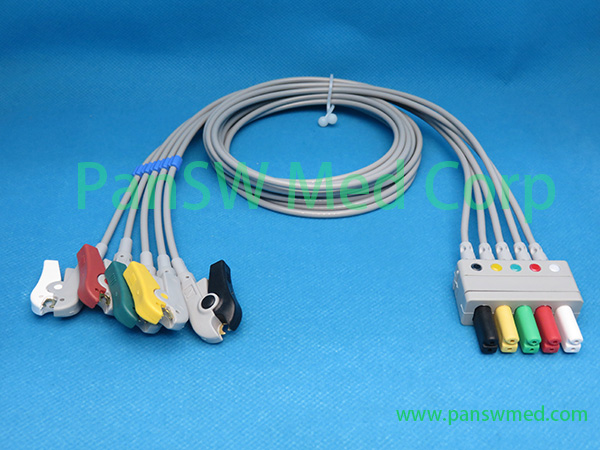

![](../patient_monitor_products/ECGimage/compatible-Mindray-0010-30-42730-ECG-leads-IEC-CLIP.jpg)

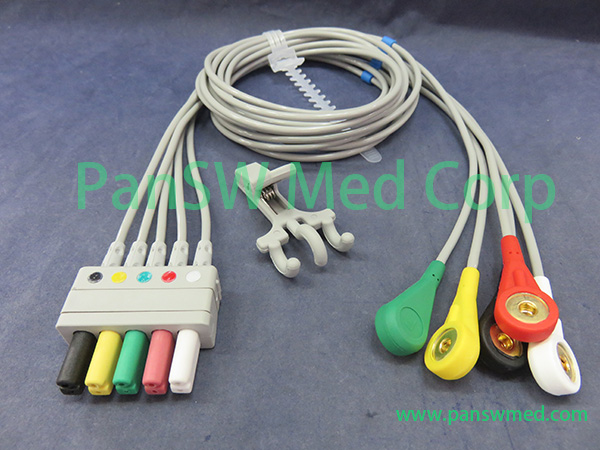

![](../patient_monitor_products/ECGimage/compatible-Mindray-0010-30-42736-ECG-leads1.jpg)
![compatible Mindray ecg leads](../patient_monitor_products/ECGimage/compatible-Mindray-ECG-leads-AHA-color-snap.gif)
![mindray ecg cable](../patient_monitor_products/ECGimage/compatible-Mindray-ECG-cable-IEC-snap-ECG-10010B.gif)
|

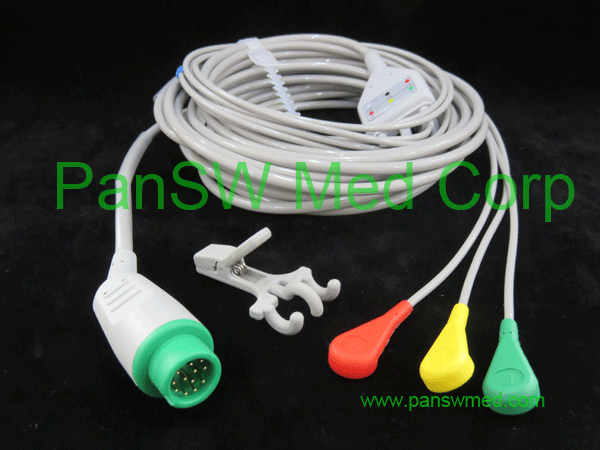

ECG-10010A integrated cable
ETC-10028F(trunk cable) |

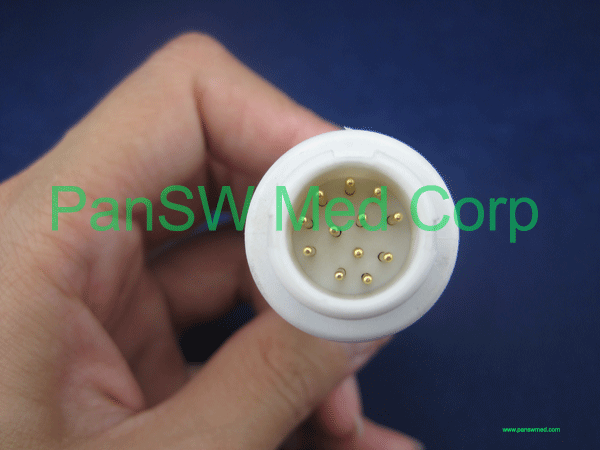

Mindray PM5000 PM6000
12 pins connector |
![mindray PM5000 ECG cable](../patient_monitor_products/ECGimage/Philips-ECG-cable-connector2.gif) |
ECG-10010L |
3, NIBP interconnect hose;
Mindray machine model |
Connector picture and description: |
PanSW medical parts & reference link; |
PM9000 |
![](../BP_products/BPimg/compatible-biolight-Mindray-Edan-NIBP-hose.jpg) |
NBT-10001 |

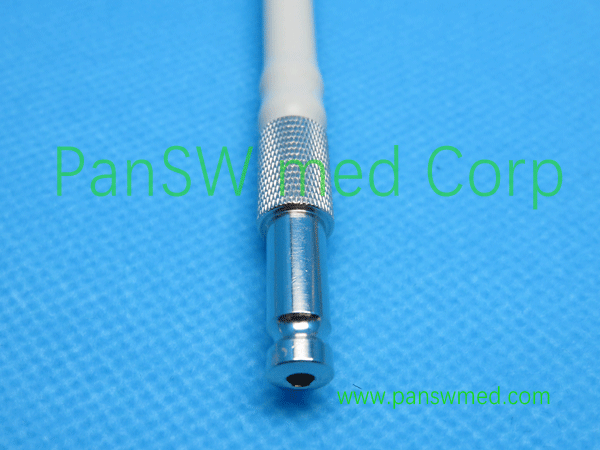

For BeneView, iPM, iMEC series monitors, BeneHeart defibrillator |
![](../BP_products/BPimg/compatible-Mindray-6200-30-09688-nibp-hose1.jpg)

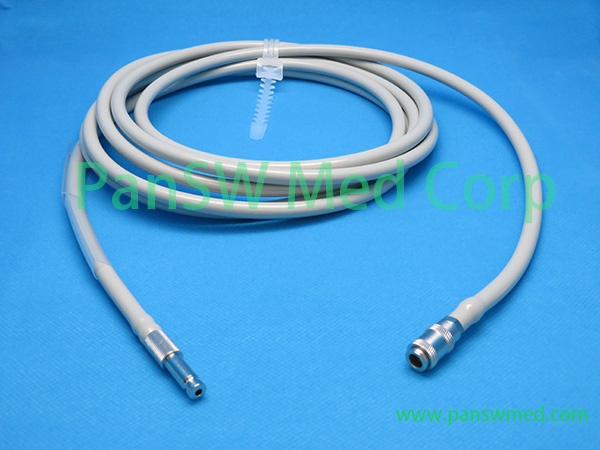

6200-30-09688 NIBP Tubing, Adu/Ped/Inf, with connectors, 3m
115-012522-00 NIBP Tubing, Adu/Ped/Inf, with connectors, 3m
(For iMEC series patient monitor)

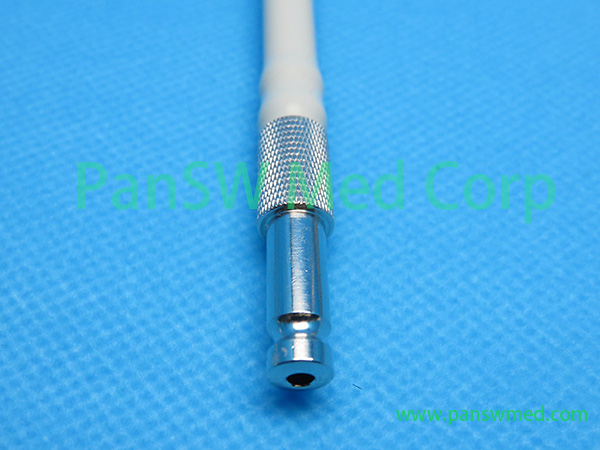

![](../BP_products/BPimg/compatible-Mindray-6200-30-09688-nibp-hose2.jpg)
|
NBT10046 |
4; NIBP cuff
Mindray machine model |
Connector picture and description: |
PanSW medical parts & reference link; |
all models, disposible nibp cuff |
![](../BP_products/BPimg/compatible-child-size-nibp-cuff-disposible.jpg) |
see list |
all models; reusable |
![](../BP_products/BPimg/compatible-adult-size-nibp-cuff-single-hose2.jpg) |
see list |
5, nibp connector
Mindray machine model |
Connector picture and description: |
PanSW medical parts & reference link; |
|
![](../BP_products/BPimg/CNT-24N-nibp-connector-for-philips2.jpg) |

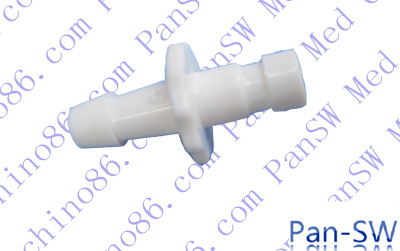

CNT-24 |
|
![](../BP_products/BPimg/CNT-07M-nibp-connector-Philips-Mindray-Edan3.jpg) |
CNT-07M |

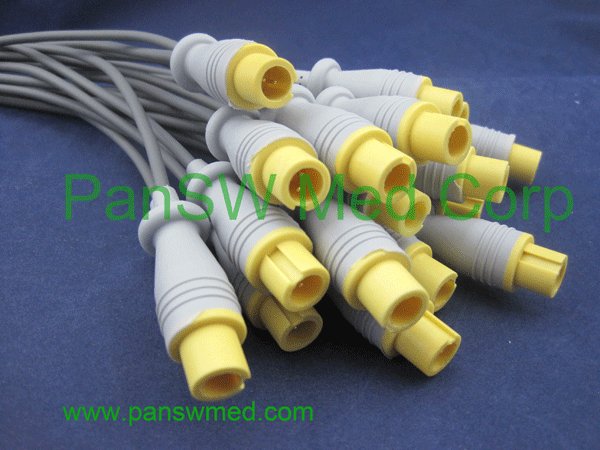

6, Mindray temperature probe;
Mindray machine model |
Connector picture and description: |
PanSW medical parts & reference link; |

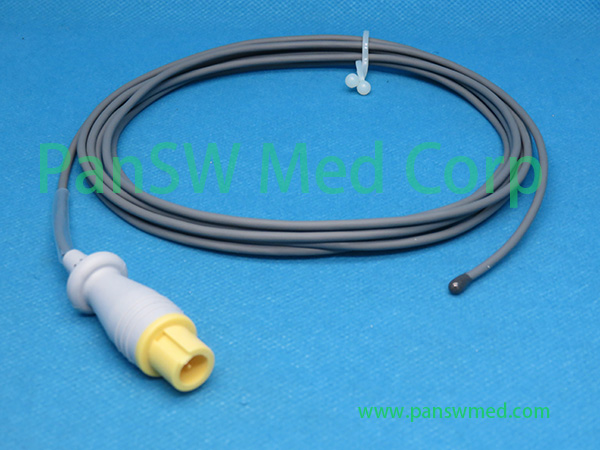

Mindray
PM6800
series
patient
monitors |
![](../medical_temperature_probes/medical_temperature_probes/compatible-Mindray-0011-30-37392-temperature-probe-rectal.jpg) |
see list |
Mindray all
module, except
PM6800 Series |
![](../medical_temperature_probes/medical_temperature_probes/compatible-temperature-probe-YSI400.jpg) |
7, Mindray IBP cable;
Mindray machine model |
Connector picture and description: |
PanSW medical parts & reference link; |

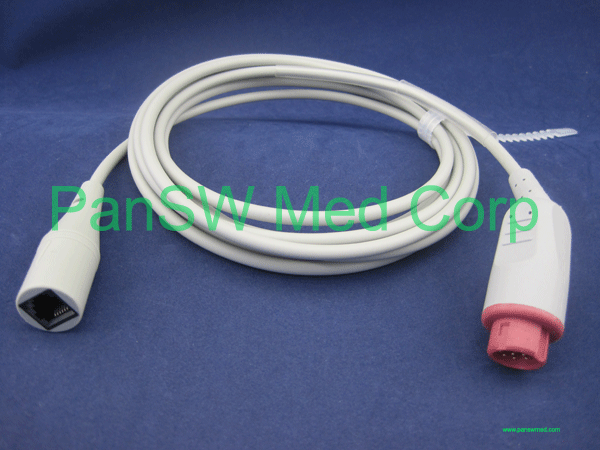

compatible Mindray IBP cables |
![compatible IBP cable for Mindray](../IBP_cables/img/IBP-10001A-IBP-to-MedexAbbott-IBP-cable.gif)

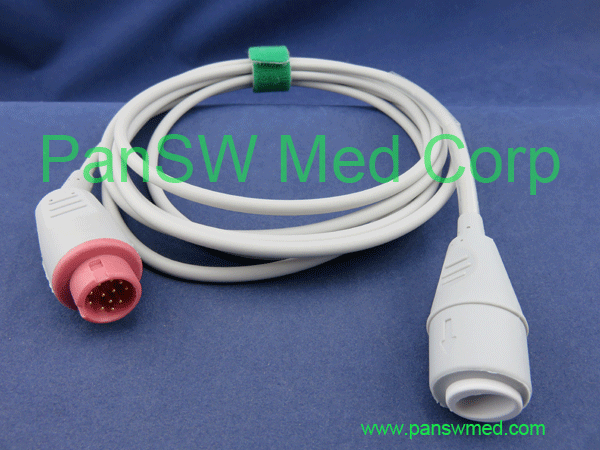

![compatible ibp cable for Mindray](../IBP_cables/img/philips-to-edward-ibp-cable.gif)
|
IBP-10011 |
compatible Mindray IBP cable |
![compatible IBP cable for Mindray PM9000](../IBP_cables/img/IBP-10003C-ibp-cable-spacelabs-Mindray-MEK1.gif)

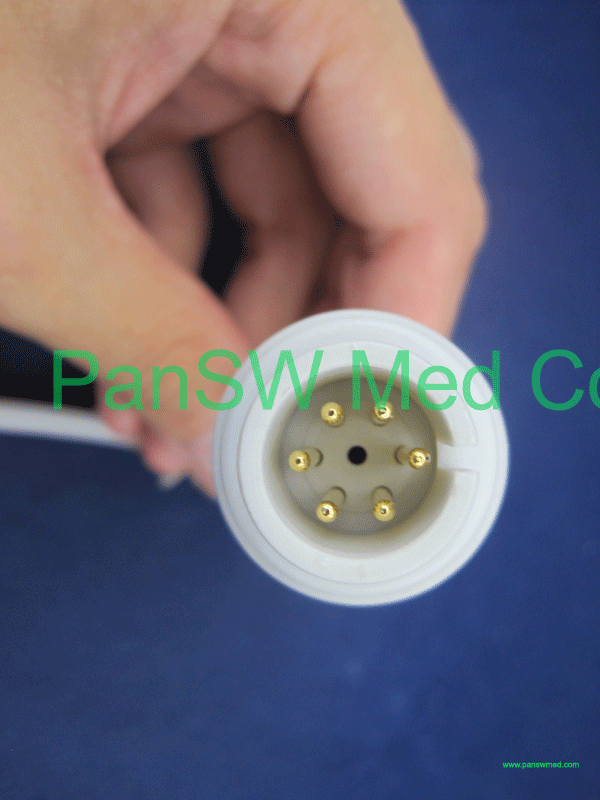

![compatible Mindray IBP cable](../IBP_cables/img/IBP-10003C-ibp-cable-spacelabs-Mindray-MEK.gif)
|
IBP-10003 |
Please feel free to contact PanSW if there is any doubt or further questions.
18h*6d technical support, products consultion, please contact PanSW for the specific cable you need and avoid mistake and unnecessary cost.
