Product >>Holter cables

Pansw part number description picture compatibility original part number
HOC-10001A

10 leads, snaps end, IEC

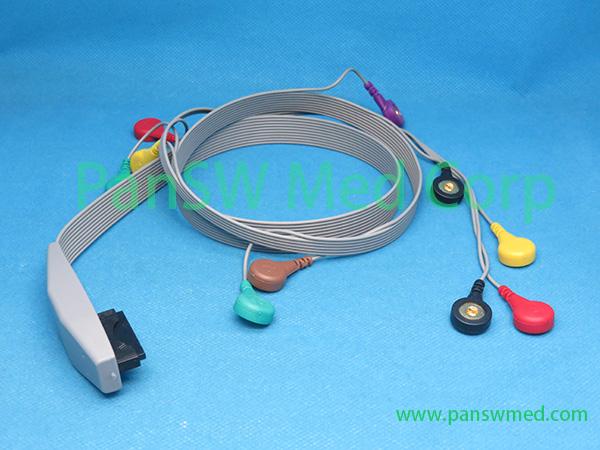

mortara h12 holter cable

Mortara and Quinton H12, H12+ holter and X12, X12+ telemetr



HOC-10001B

10 leads, snaps end, AHA

mortara H12 holter cable Mortara and Quinton H12, H12+ holter and X12, X12+ telemetr

HOC-10002A

7 leads, snaps end, IEC, DIN 2.0 female connecto

r


HOC-10002B

7 leads, snaps end, AHA, Din 2.0 female connector

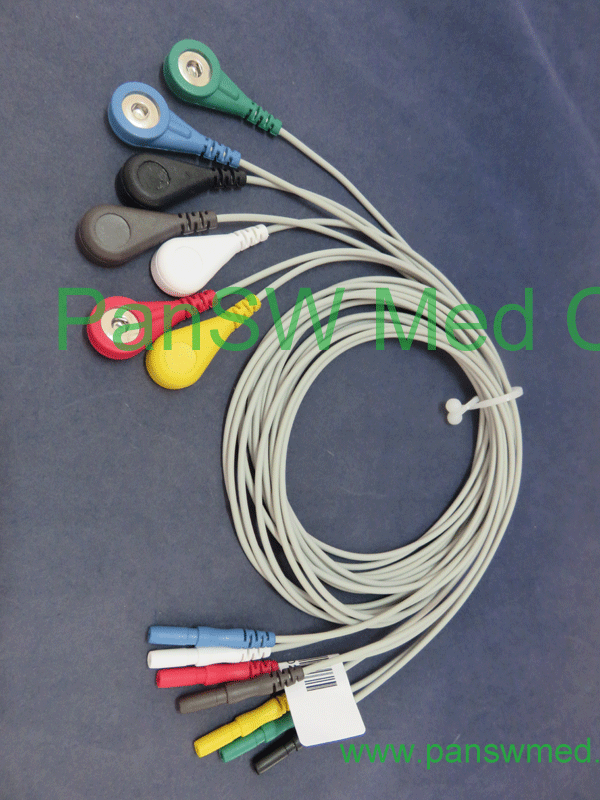

holter cable AHA snap

HOC-10002C

7 leads,clip end, IEC, DIN 2.0 female connector



HOC-10002D

7 leads, clips end, AHA, Din 2.0 female connector



HOC-10003A

10 leads, snaps end, IEC, DIN 2.0 female connector



HOC-10003B

10 leads, snaps end, AHA, Din 2.0 female connector



HOC-10004

7 leads ECG cable



HOC-10005

7 leads ECG cable

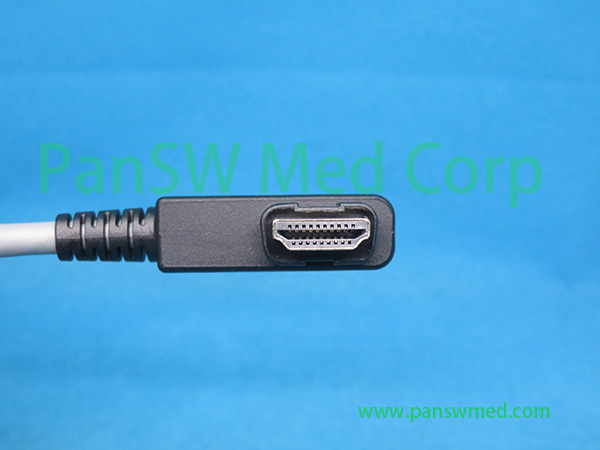

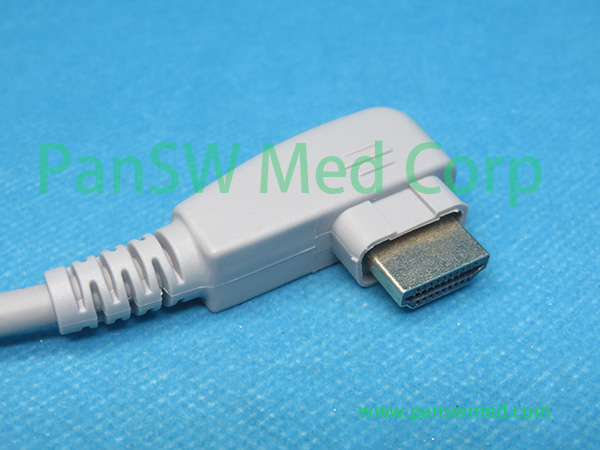

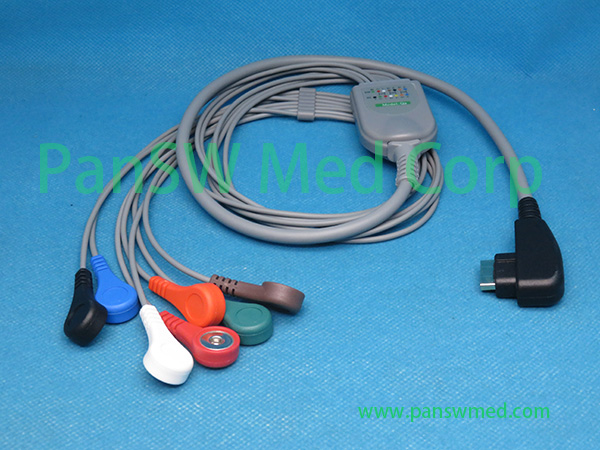

DMS-840

HOC-10006A

10 leads ECG cable; IEC snap

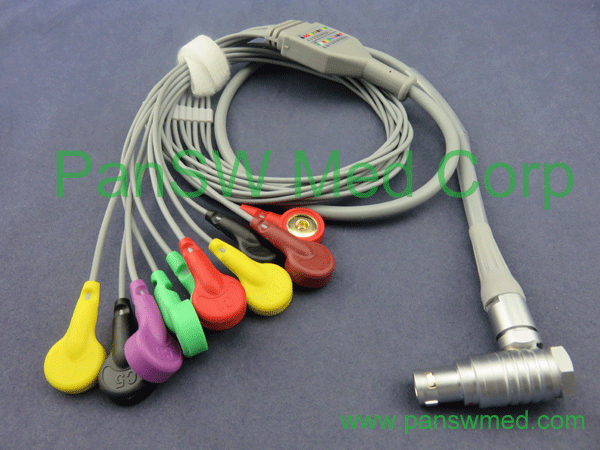

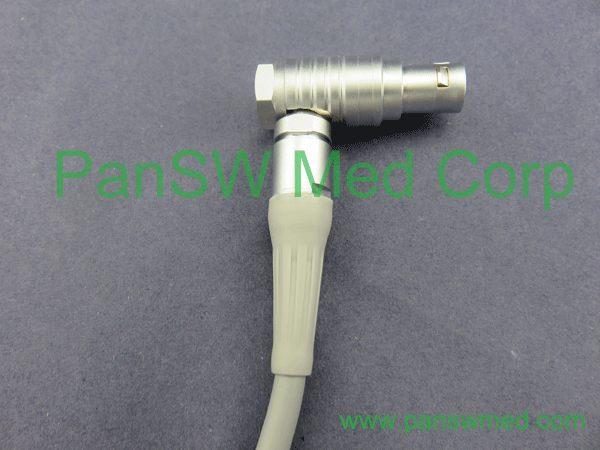

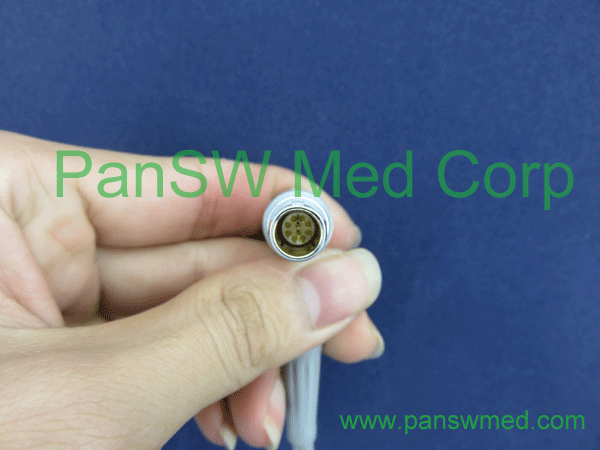

holter cable for GE ecg cable for CM3000-12 BT /SEER 12, 10 LEADS, 2014606-635

HOC-10006B

10 leads ECG cable; AHA snap

holter cable for GE seer

HOC-10007A

7 leads ECG cable; IEC snap

holter cable for GE seer

HOC-10007B

7 leads ECG cable; AHA snap

holter cable for GE seer

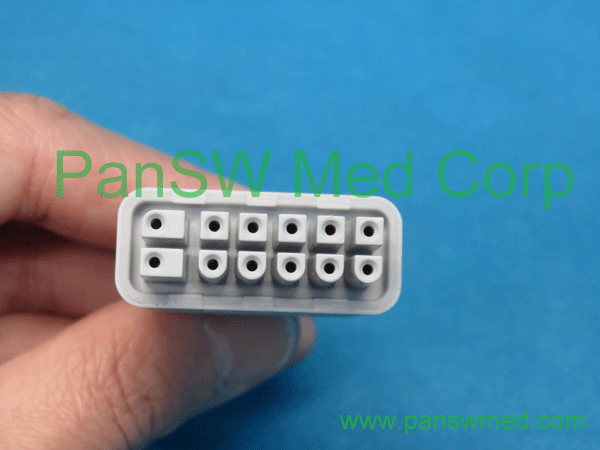

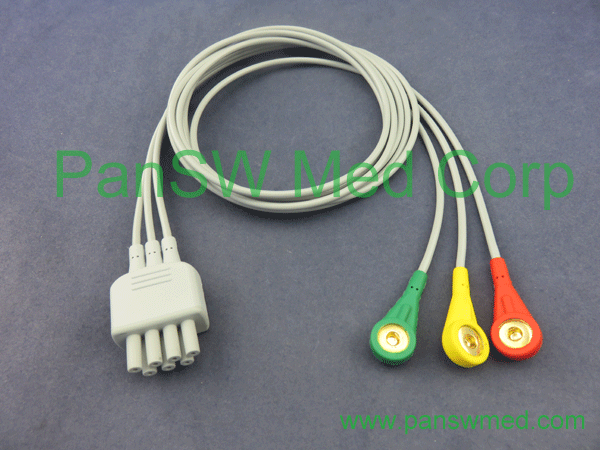

HOC-10008A

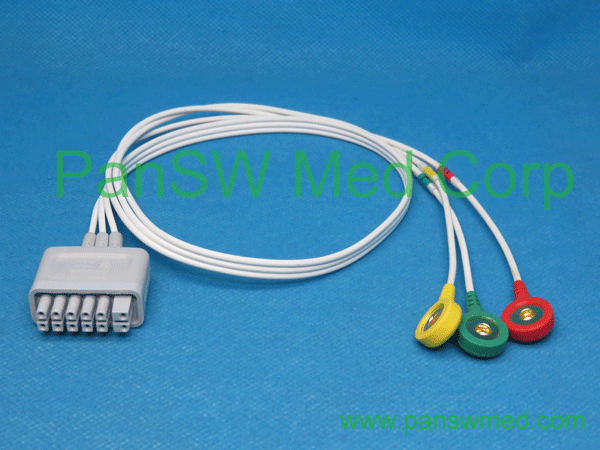

3 leads ECG cable, IEC snap

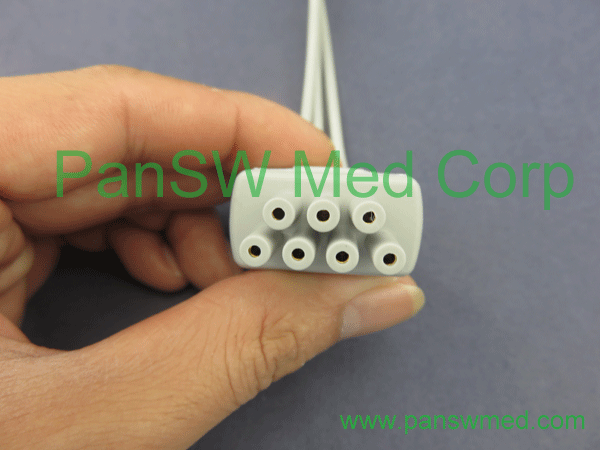

Mindray telemetry cable 3 leads Mindray telemetry IEC snap

HOC-10008B

3 leads ECG cable AHA snap

mindray telemetry cable 3 leads AHA snap Mindray telemetry AHA snap

HOC-10009A

5 leads ECG cable

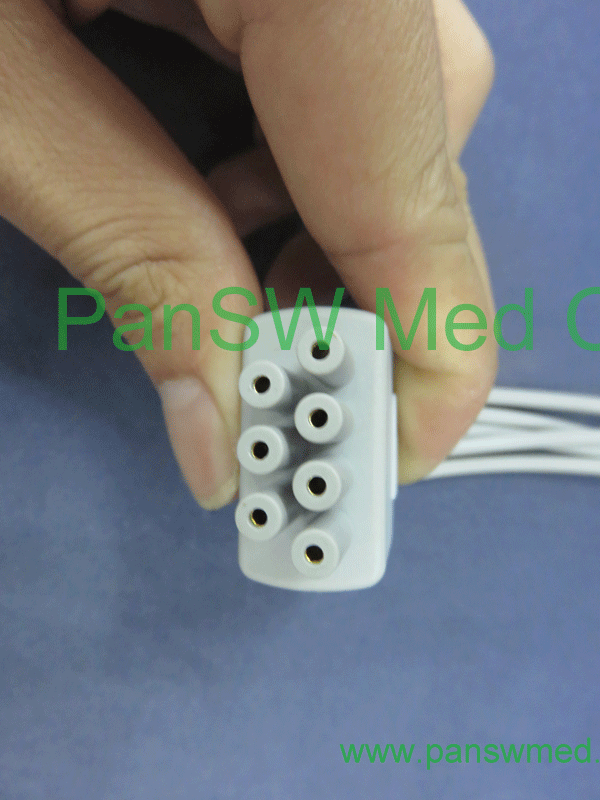

holter cable for Mindray, telemtry

HOC-10009B

5 leads ECG cable

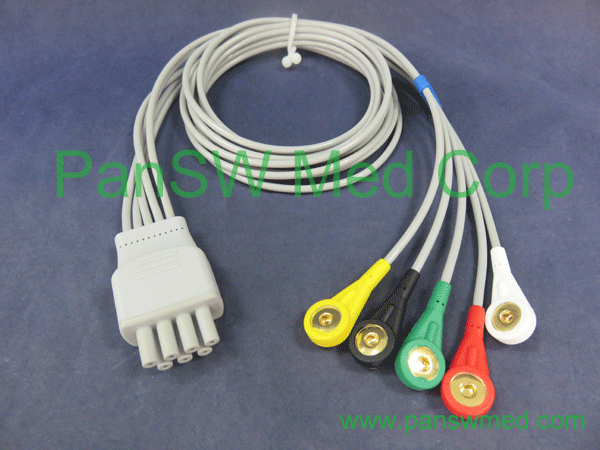

telemtry cable for Mindray

HOC-10010A

7 leads ECG trunk cable

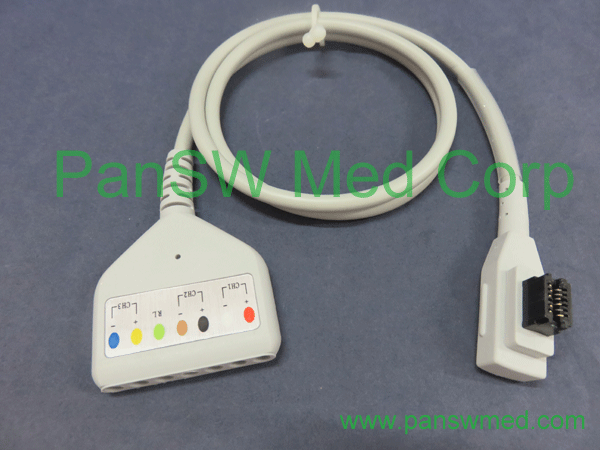

rozin holter cable

HOC-10010B

7 leads ECG trunk cable

rozin holter cable

HOC-10011A

5 leads ECG cable; IEC snap

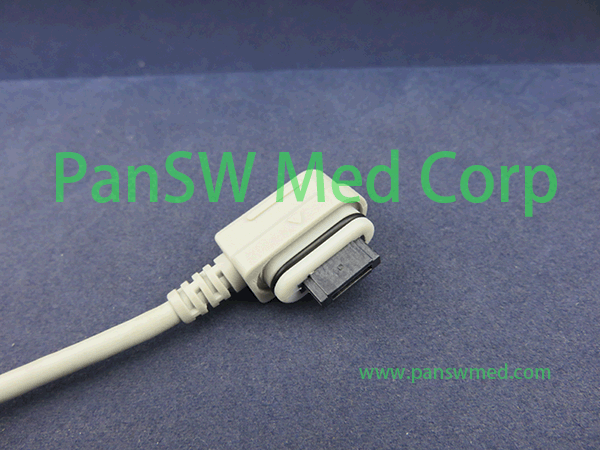

compatible with GE seer light



HOC-10011B

5 leads ECG cable; AHA snap

compatible with GE seer light

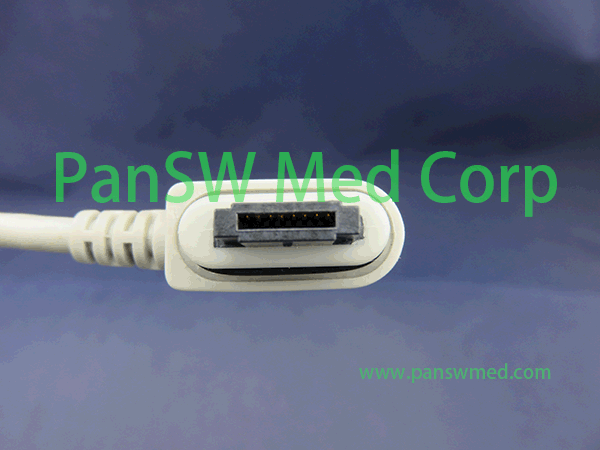

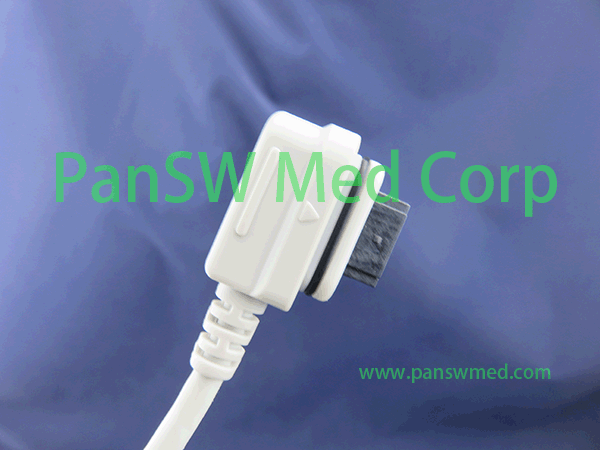

HOC-10012A

7 leads ECG cable; IEC snap

compatible with GE seer light

HOC-10012B

7 leads ECG cable; AHA snap

compatible with GE seer light

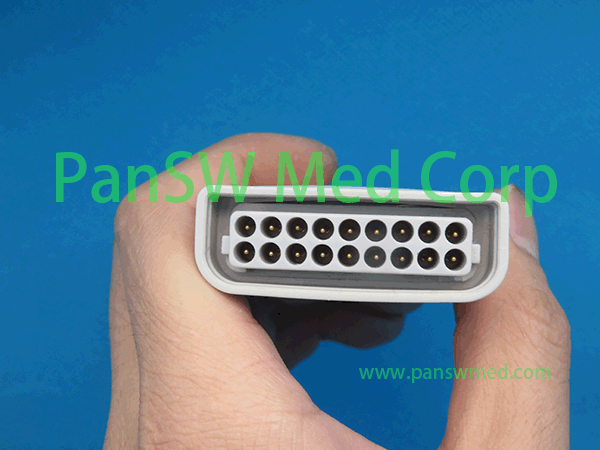

HOC-10013A

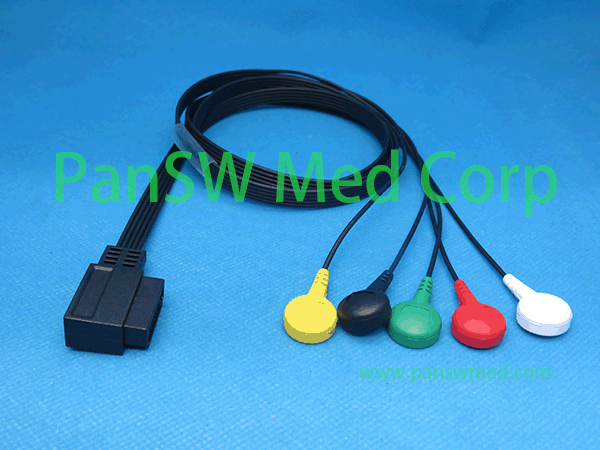

compatible Philips M4725A holter cables, IEC color, snap, 5 leads

HOC-10013B

compatible Philips M4725A holter cables, AHA color, snap, 5 leads

HOC-10014A

IEC SNAP 10 LEADS

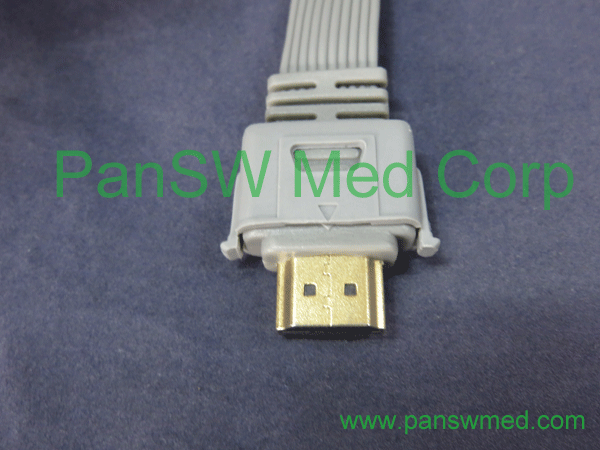

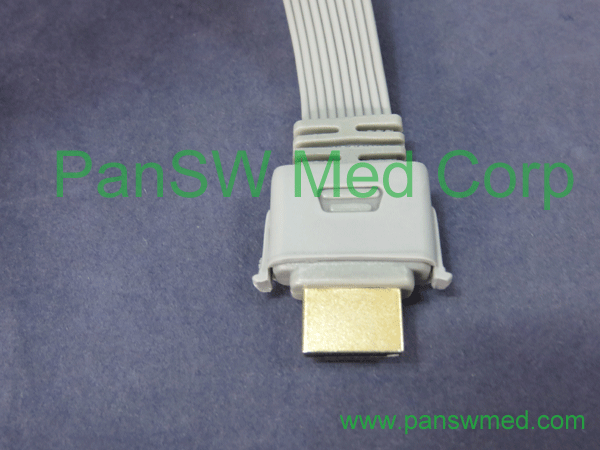

biocare holdter cable

IEC SNAP 10 LEADS



HOC-10014B

AHA SNAP 10 LEADS

biocare holter cable AHA SNAP 10 LEADS

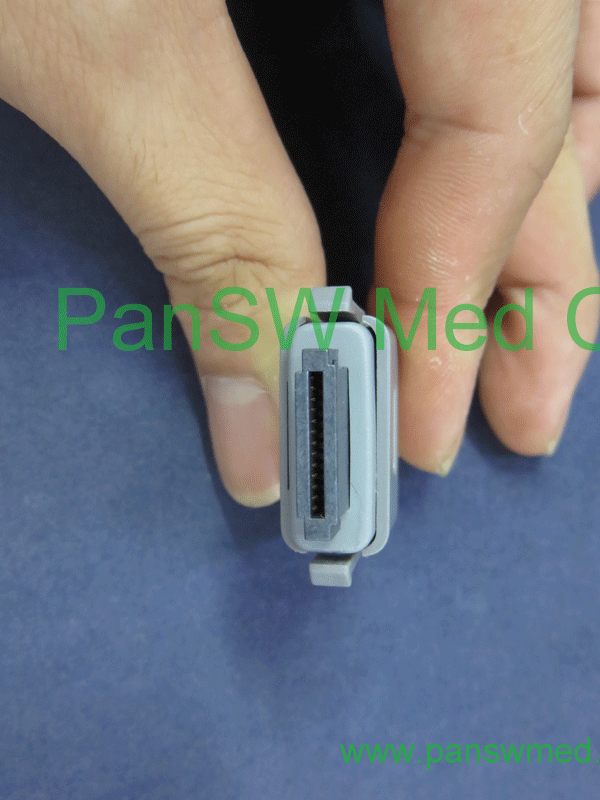

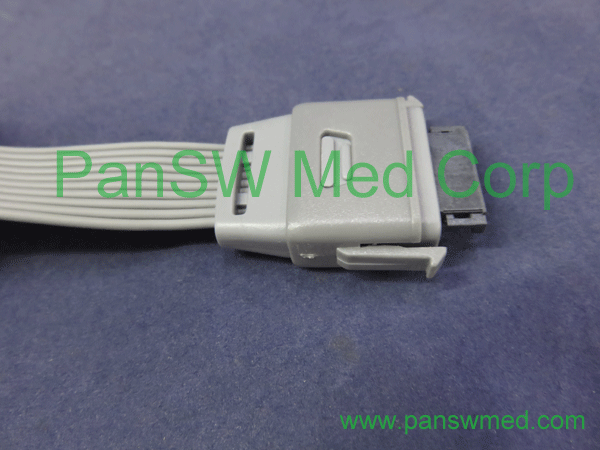

HOC-10015A

IEC SNAP 10 LEADS

holter cable for Edan IEC SNAP 10 LEADS

HOC-10015B

AHA SNAP 10 LEADS

holter cable for Edan holter AHA SNAP 10 LEADS

HOC-10015C

IEC SNAP 5 LEADS

holter cable for Edan IEC SNAP 5 LEADS

HOC-10015D

AHA SNAP 5 LEADS

holter cable for Edan holter AHA SNAP 5 LEADS

HOC-10016A

IEC SNAP 5 LEADS

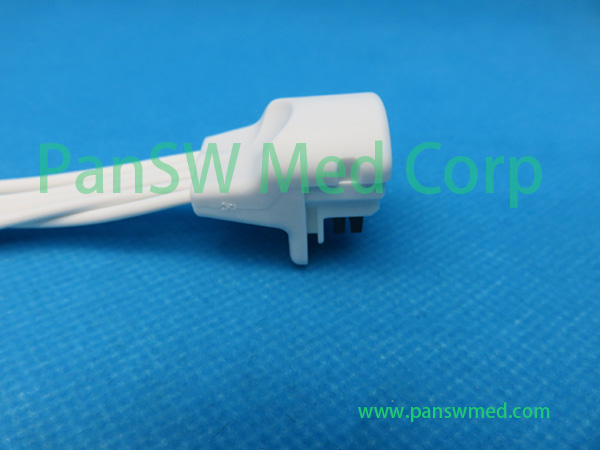

compatible Mortara H3

compatible Mortara H3+ holter cable

compatible mortara holter cables; H3

HOC-10016B

AHA SNAP 5 LEADS

compatible mortara H3+ compatible mortara holter cables; H3

HOC-10017A

IEC SNAP 10 LEADS



HOC-10017B

AHA SNAP 10 LEADS

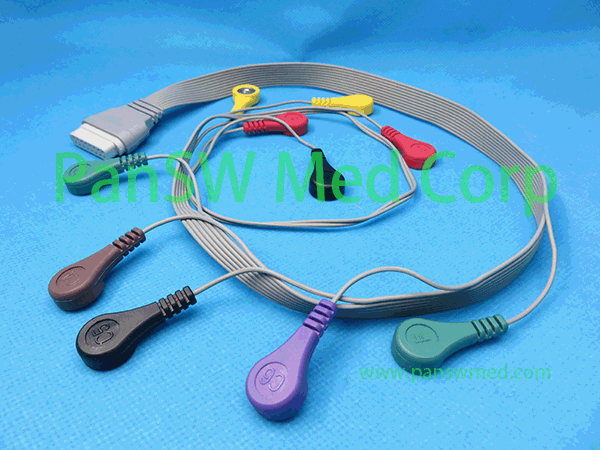

HOC-10018A

IEC SNAP 10 LEADS

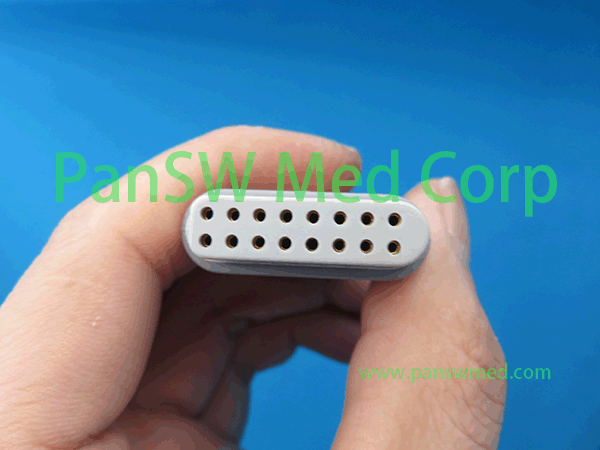

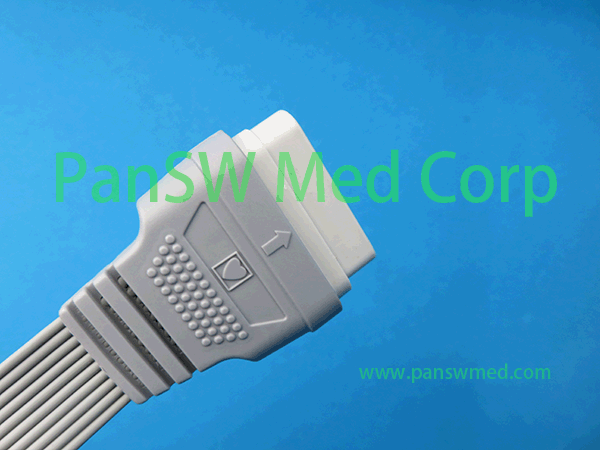

compatible Edan SE2003 SE 2012 holter cbales, ten leads, IEC snap

HOC-10018B

AHA SNAP 10 LEADS

compatible Edan SE2003 SE 2012 holter cbales, ten leads, AHA snap

HOC-10018C

IEC SNAP 7 LEADS

compatible Edan SE2003 SE 2012 holter cables, 7 leads, IEC snap

HOC-10018D

AHA SNAP 7 LEADS

compatible Edan SE2003 SE 2012 holter cables, 7 leads, AHA snap

HOC-10018E

IEC SNAP 5 LEADS

compatible Edan SE2003 SE 2012 holter cables, 5 leads, IEC snap

HOC-10018F

AHA SNAP 5 LEADS

compatible Edan SE2003 SE 2012 holter cables, 5 leads, AHA snap

HOC-10019A

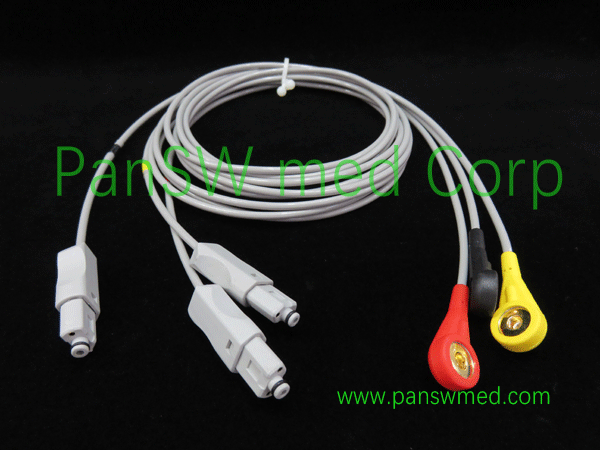

3 leads snap; IEC color

compatible holter cable

compatible holter cable



HOC-10019B

3 leads snap; AHA color

compatible holter cable

compatible holtercable


HOC-10020A
HOC-10020B
HOC-10020C
HOC-10020D

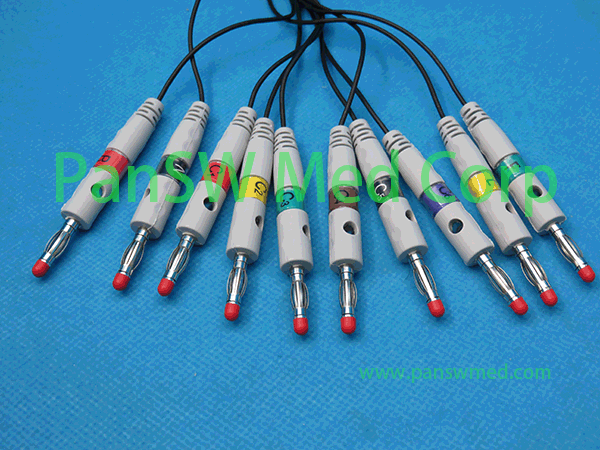

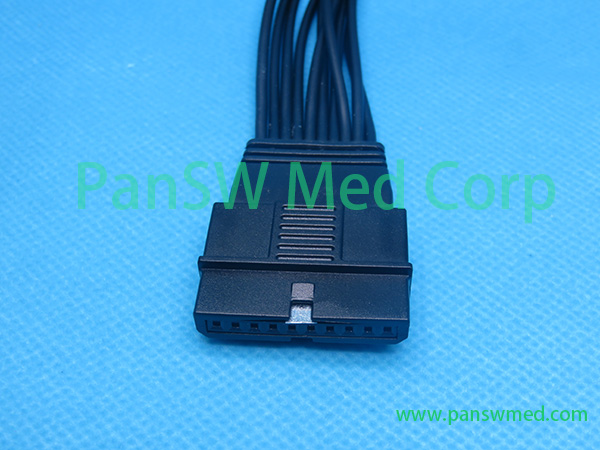

HOC-10021A   compatible Schiller holter cable, IEC color, ten leads, banana
HOC-10021B

compatible Schiller holter cable, AHA color, ten leads, banana

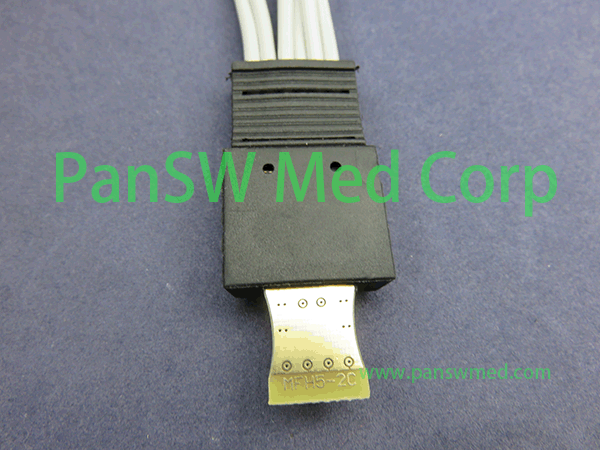

HOC-10022A

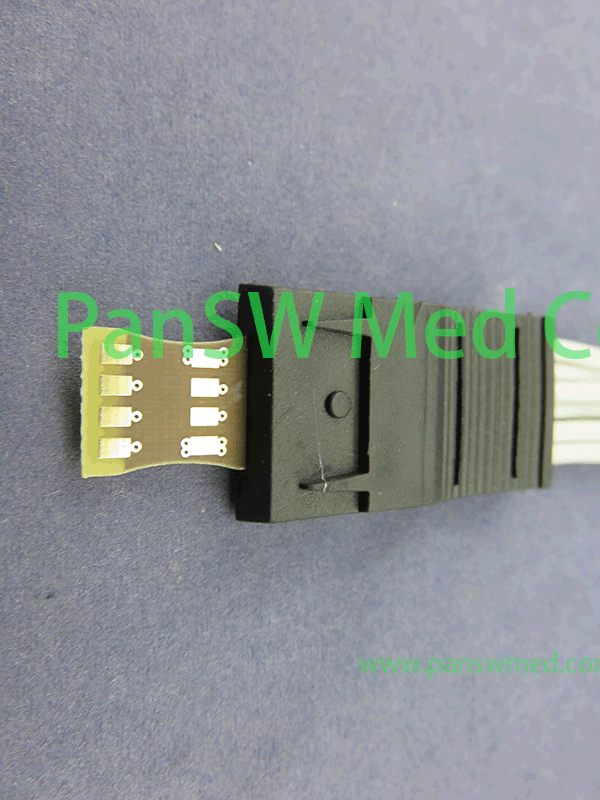

for Schiller MT101 IEC color, 6 leads
HOC-10022B   for Schiller MT101 AHA color, 6 leads

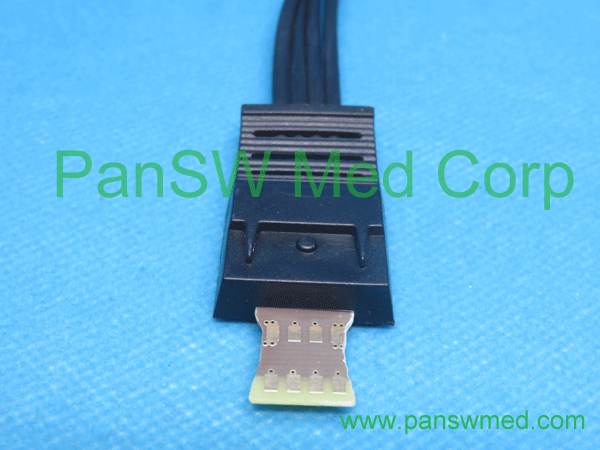

HOC-10022C   for Schiller MT101 AHA color, 4 leads
HOC-10022D   for Schiller MT101 AHA color, 4leads

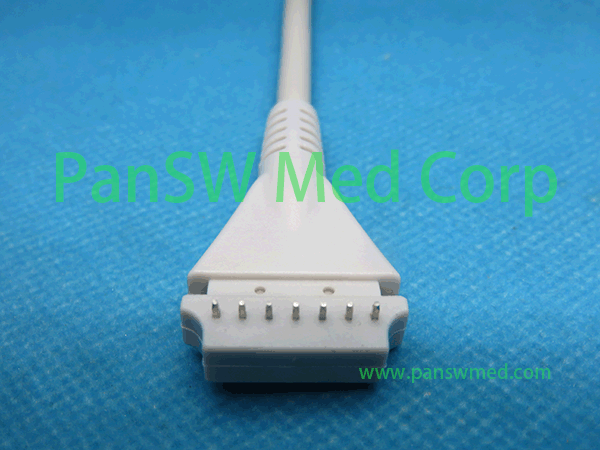

HOC-10023A

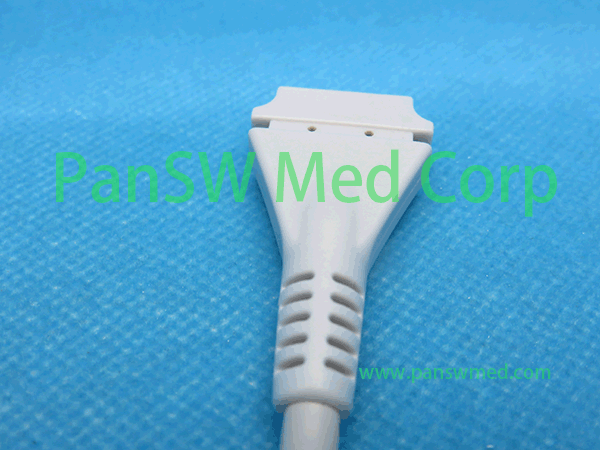

for burdick, IEC color, 5 leads, snap



HOC-10023B



for burdick, AHA color, 5 leads, snap



HOC-10023C



for burdick, IEC color, 7 leads, snap



HOC-10023D



for burdick, AHA color, 7 leads, snap





Tips of how to place holter electrodes (Reference from Welch Allyn products catalogue):

7 leads Placement
lead AHA color IEC color Placement
CH1+ Red Green 4th intercostal space at left border of sternum
CH1- White Red Left clavicle, lateral of sternum border
CH2+ Brown White 6th intercostal space at the anterior axillary's line
CH2- Black Yellow Right clavicle, lateral to the mid-clavicle line
CH3+ Orange Orange 6th intercostal space on left midclavicular line
CH3- Blue Blue Manubrium sternum
RL Green Black Lowest rib on right side of chest
