Compatible Masimo SpO2 Extension Cable, LNOP Interconnect Cable

PanSW Medical supplies compatible Masimo SpO2 extension cable / LNOP interconnect cable, PanSW part number ADP-10014B. This cable is used as an interconnect cable from AMP14P connector to Masimo LNOP SpO2 sensor connection.

Compatible reference numbers include Masimo PC08 LNOP interconnect cable, PC04 LNOP interconnect cable, and Masimo cable part numbers 1173, 1005 and 1006. Please confirm the monitor model and SpO2 technology before ordering.

PanSW Part Number ADP-10014B

Connector AMP14P connector to Masimo LNOP

Reference Numbers PC08, PC04, 1173, 1005, 1006

Use With Compatible Masimo LNOP SpO2 sensors

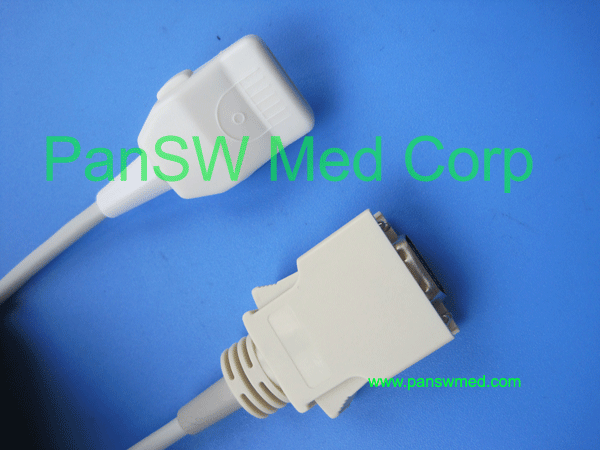

Product Image

Product Specifications

Product Name	Compatible Masimo SpO2 Extension Cable / LNOP Interconnect Cable
PanSW Part Number	ADP-10014B
Compatible References	Masimo PC08 LNOP interconnect cable 2009743-001, Masimo PC04 LNOP interconnect cable 2027278-001, Masimo 1173, 1005, 1006
Reference Lengths	PC08: 2.4 m; PC04: 1.2 m; 1173: 4 ft; 1005: 8 ft; 1006: 12 ft
Connector Type	AMP14P connector to Masimo LNOP SpO2 connection
Compatible Systems	DINAMAP ProCare with Masimo option, DINAMAP ProSeries V2 with Masimo option, DINAMAP Pro 1000 V3 with Masimo option, Medtronic / Physio-Control Lifepak 20 and other compatible systems.
Use With	Compatible Masimo LNOP SpO2 sensor
Compliance Information	EN60601-1, ISO80601-2-61, ISO 10993-1, ISO 10993-5, ISO 10993-10 and RoHS information available upon request.

Product Video

Inquiry Information:
To confirm the correct compatible Masimo SpO2 extension cable, please provide the monitor brand, model, SpO2 technology, original cable part number, connector photo and required cable length.
