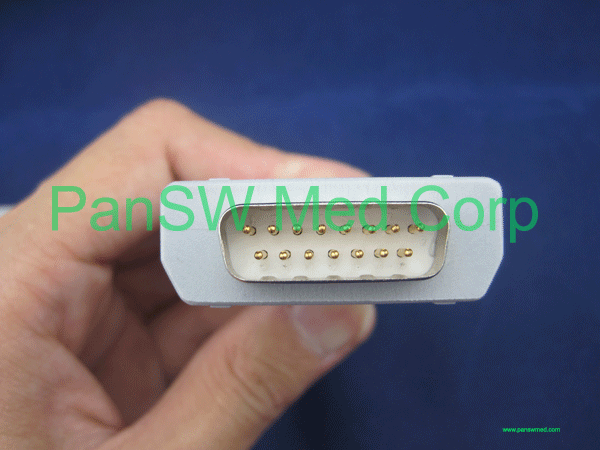

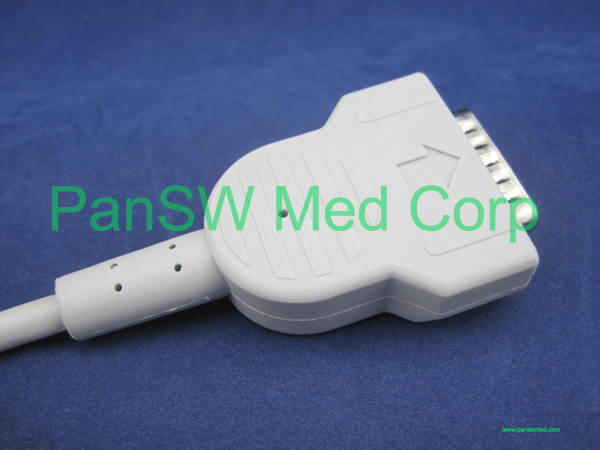

Description: Connector: DB 15pin male connector , 4.0 Banana ending; completely shielded cable; TPU jacket cable; durable& flexible; molded connector;
Compatibility:Hellige: MicroSmart, MAC 500/1100 MAC 1200/1200 ST
| Part No | OEM No | Description |
| EKG-10043A | integrated; IEC, DB15M-Din3.0 | |
| EKG-10043B | integrated; AHA, DB15M-Din3.0 | |
| EKG-10043C | 2029890-001 | integrated; IEC,DB15M-Banana4.0 |
| EKG-10043D | 2029893-001 | integrated; AHA,DB15M-Banana4.0 |
| EKG-10043E | integrated; IEC,DB15M-Clip end | |
| EKG-10043F | integrated; AHA,DB15M-Clip end | |
| EKG-10043G | integrated; IEC,DB15M-snap end | |
| EKG-10043H | integrated; AHA,DB15M-snap end |
Core technology:
1, All the leads we have longer length to coordinate with bigger size patients without difficulty.
2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment
3, the wires we use bigger size, very durable; surface is convenient for cleaning
4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.
compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
integrated ecg cable ten leads banana, AHA color
