For gallery of detailed pictures please click here

For description please refer the below

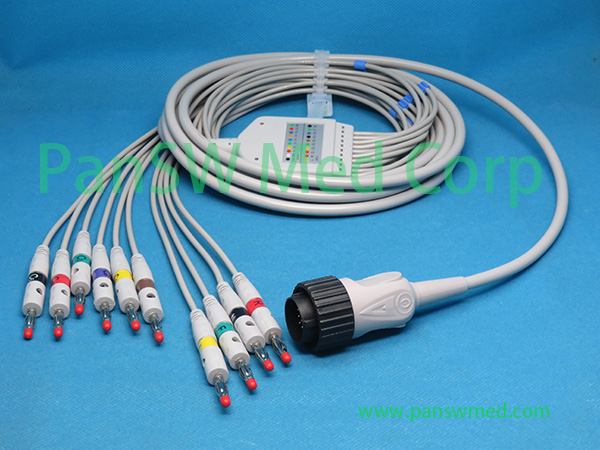

Description: Connector: Round 16 pin connector ,
Electrode terminal: Din 3.0 on electrode end .
Compatibile with:
Kanz: 103, 106 Cardioline/remco: delta 1,3,30,60 delta 1 plus, delta 3 plus, V delta 60 plus

Part No	OEM No	Description
EKG-10003A	PC-104	integrated; IEC,DDK16P-Din3.0
EKG-10003B		integrated; AHA, DDK16P-Din3.0
EKG-10003C		integrated; IEC, DDK16P-Banana4.0
EKG-10003D		integrated;  AHA, DDK16P-Banana4.0
EKG-10003E		integrated; IEC, DDK16P-clip
EKG-10003F		integrated; AHA, DDK16P-clip
EKG-10003G		integrated; IEC, DDK16P-snap
EKG-10003H		integrated; AHA, DDK16P-snap

Description: medical TPU jacket cable; dual shielding; anti-noise design; fully compatible with original cable;
Cable length: 2.5 meters for main cable; 0.8 meters/1.2 meters for lead wires; OD for main cable: 6.0mm; OD for leadwire: 3.0 mm;
more details for cable structure here:

For gallery of detailed pictures please click here

For description please refer the above



Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
