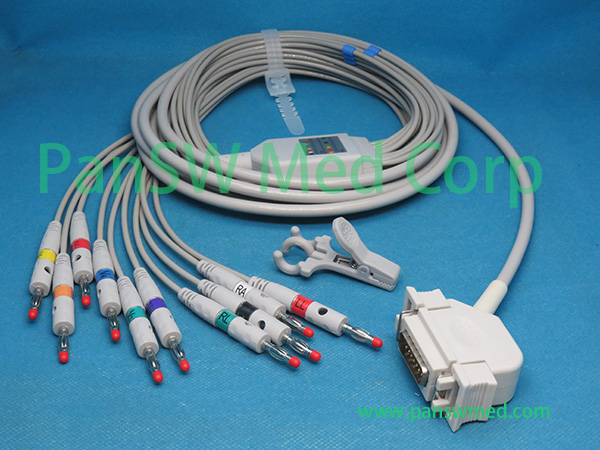

Product >>ECG/EKG cables>>compatible Hellige EK43 EK53 ECG cable

Description:
main cable length: 2.5 meters; leadwire length: 0.8 mm for chest leads; 1.2 meters for limb leads;
D-sub 15 pins connector with Hellige clips connector;
Medical TPU cable; completed shielded from machine connector to patient connector; anti-noise design;


Compatible with:

Bosch:603 D, 603 ER, 603 S, 606
Cambridge: CM 6000, CM 6400
Custo-med: Custo-card
DEGO: Cardiomed 3

Hellige: EK 36, EK 41, EK 43, EK 53,
EK 56, EK 403, EK 413, EK 512, EK 512 E,
EK 512 P, Cardiosmart, CardioSys, Corna

Siemens:Cardiostat1/3T/703/710/31/31S
Cardina C, Cardirex 3T/4/6T/62, Cathcor,
Megacard Elema A/B, R, R/E, Mingodoc,
Mingocard 3 / 4 / 7, Mingograph 4 / 62 / 81
Mingograph 82 / 740, Mingolog 7,
Mingophon 3/7/310/410/420/710/720,
Miracard 1, Sirecard440/440S/460/460S/740
Siereg, Sirecard 803, Sirecust 701
Megacart;

Von Berg:Bioset3500/3600/3700/6000/8000

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

all types available: clips, snaps, banana, DIN; IEC/AAMI/AHA color coding are available; for detailed products codes please review the list below:

Part No	OEM No	Description
EKG-10021A		integrated; IEC, DB15M-Din3.0
EKG-10021B		integrated; AHA,DB15M-Din3.0
EKG-10021C		integrated; IEC,DB15M-Banana4.0
EKG-10021D		integrated; AHA,DB15M-Banana4.0
EKG-10021E		integrated; IEC, DB15M-clip
EKG-10021F		integrated; AHA, DB15M-clip
EKG-10021G		integrated; IEC, DB15M-snap
EKG-10021H		integrated; AHA, DB15M-snap

Cable diagram for IEC color;

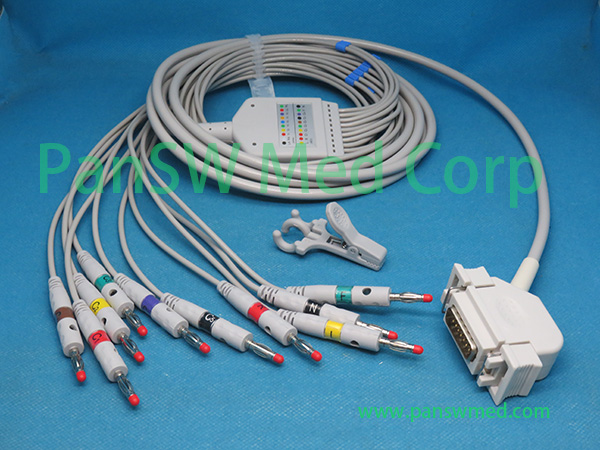

compatible Hellige EK43 EK53 ECG cable IEC banana

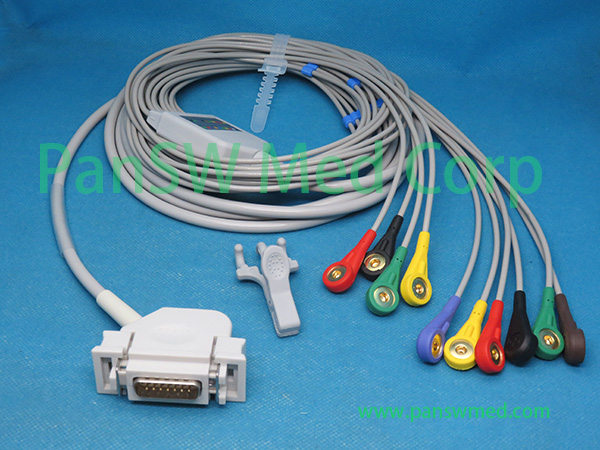

compatible Hellige EK43 EK53 ECG cable IEC snap

compatible Hellige EK43 EK53 ECG cable IEC grabber

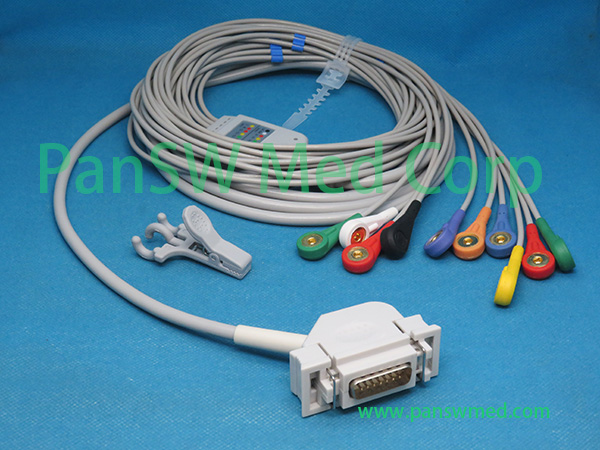

compatible Hellige EK43 EK53 ECG cable AHA snap

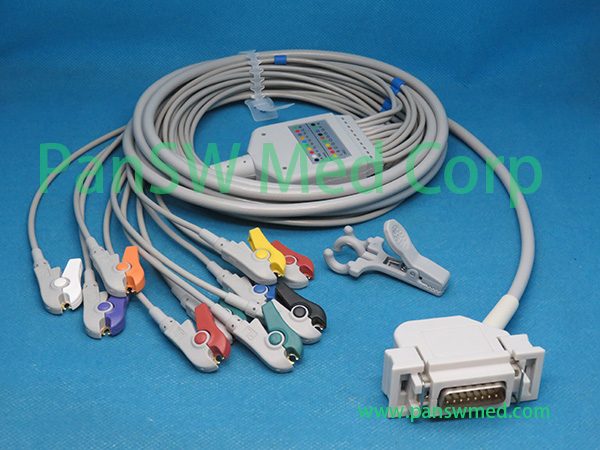

compatible Hellige EK43 EK53 ECG cable AHA grabber

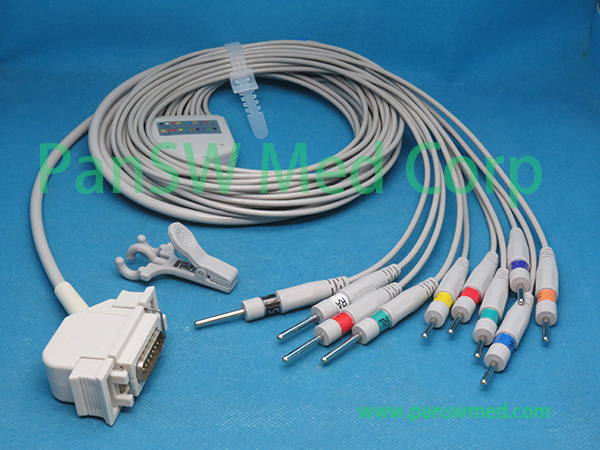

compatible Hellige EK43 EK53 ECG cable AHA DIN

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

---
