GE Medical SpO₂ Modules Explained Types Differences And Compatibility Guide
GE Medical SpO₂ Modules Explained Types Differences And Compatibility Guide. Compare module types, connector styles and sensor compatibility for patient monitor accessory selection.
Page Details
Application and Ordering Notes
GE medical SpO₂ Modules Explained: Types, Differences, and Compatibility Guide Layer Category Details Technology platform Masimo SET High-end modules, motion tolerance Nellcor OxiMax / Oxismart Widely used, mainstream compatibility GE Ohmeda (legacy) Older Datex-Ohmeda systems TruSignal (GE proprietary) Newer GE ecosystem Connection type Direct connect Sensor → monitor Cable + sensor Monitor → cable → sensor Patient type Adult / Pediatric / Neonatal Standard segmentation Sensor form Finger clip / Soft tip / Wrap / Ear / Disposable Application-based Series / Family Example Models / PN Technology Type Patient Reusable Notes TruSignal Finger Sensor TS-F-D GE TruSignal Finger clip Adult/Pediatric Yes Standard reusable sensor TruSignal Integrated Finger TS-F4-GE / TS-SA4-GE GE TruSignal Finger (integrated cable) Adult Yes No extension cable needed TruSignal Ear Sensor TS-E-D / TS-E4-GE GE...
Please confirm the exact monitor model, module technology, connector shape, cable configuration, patient size and original part number where available before ordering.
Compatibility and Reference Information
| Layer | Category | Details |
|---|---|---|
| Technology platform | Masimo SET | High-end modules, motion tolerance |
| Nellcor OxiMax / Oxismart | Widely used, mainstream compatibility | |
| GE Ohmeda (legacy) | Older Datex-Ohmeda systems | |
| TruSignal (GE proprietary) | Newer GE ecosystem | |
| Connection type | Direct connect | Sensor → monitor |
| Cable + sensor | Monitor → cable → sensor | |
| Patient type | Adult / Pediatric / Neonatal | Standard segmentation |
| Sensor form | Finger clip / Soft tip / Wrap / Ear / Disposable | Application-based |
| Series / Family | Example Models / PN | Technology | Type | Patient | Reusable | Notes |
|---|---|---|---|---|---|---|
| TruSignal Finger Sensor | TS-F-D | GE TruSignal | Finger clip | Adult/Pediatric | Yes | Standard reusable sensor |
| TruSignal Integrated Finger | TS-F4-GE / TS-SA4-GE | GE TruSignal | Finger (integrated cable) | Adult | Yes | No extension cable needed |
| TruSignal Ear Sensor | TS-E-D / TS-E4-GE | GE TruSignal | Ear clip | Adult/Pediatric | Yes | Better for low perfusion |
| TruSignal Cable | TS-G3 | GE TruSignal | Interconnect cable | — | — | Required for modular systems |
| GE Adult Sensor (Generic) | OMN00133 | Mixed | Finger/soft | Adult | Yes | Service-shop generic listing |
| Masimo-compatible sensors | 2017002-001 / -003 | Masimo SET | Various | All | Yes/No | High-end monitors |
| Nellcor OxiMax sensors | 2021406-001 | Nellcor | Finger / wrap | All | Yes/No | Very common platform |
| Ohmeda sensors (legacy) | TS-G3 + Ohmeda probe | GE Ohmeda | Various | All | Yes | Old Datex systems |
| Disposable sensors | (various SKUs) | Mixed | Adhesive wrap | Neonate/Pediatric | No | Infection control use |
| Connector Type | Technology | Typical Pin | Notes |
|---|---|---|---|
| Masimo SET port | Masimo | 11-pin | Not interchangeable with Nellcor |
| Nellcor OxiMax port | Nellcor | 9 / 11-pin | Very common |
| GE Ohmeda port | GE legacy | DB9 / proprietary | Needs correct cable |
| TruSignal (GE) | GE proprietary | GE connector | Works with GE modules only |
| Monitor Series | Compatible SpO2 Type |
|---|---|
| CARESCAPE Bx50 / Canvas | TruSignal / module-based |
| CARESCAPE V100 / VC150 | TruSignal |
| B20 / B40 / B105 / B125 | TruSignal / Nellcor / Masimo (depends on module) |
| Dash / Solar series | Mostly Nellcor / Masimo |
| Datex-Ohmeda monitors | Ohmeda / Masimo |

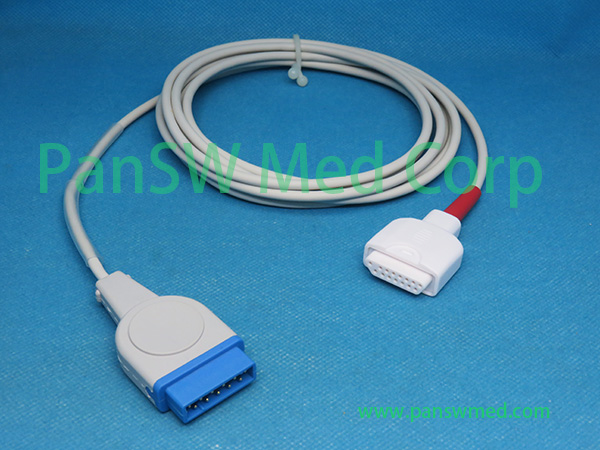

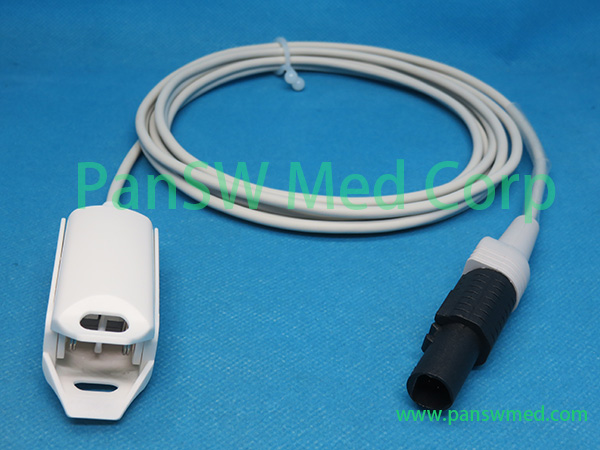

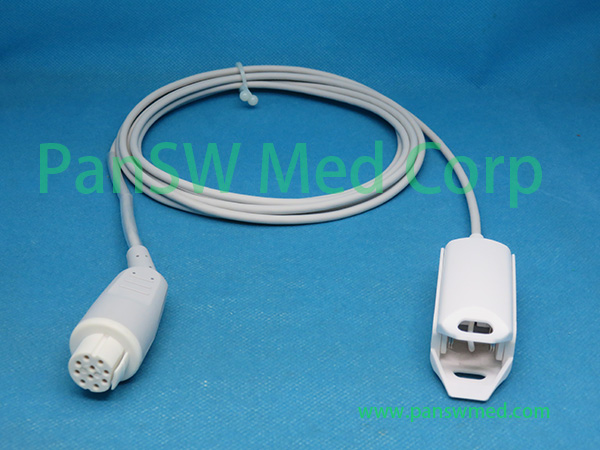

Product Images and Reference Photos
Compliance Information
Pan-SW Med supplies compatible medical accessories and replacement parts for professional use. Product selection should be confirmed by model, connector type and clinical application before use.
Compliance references may include applicable medical accessory requirements, material safety standards, biocompatibility references and RoHS requirements where relevant to the product type.
