ECG color coding; leadwires

IEC (European standard) color coding Standards:

(International Electrotechnical Commission)

3 leads:	R (red); F (green); L (yellow)
	R (red); N (black); L (yellow)
5 leads	leads R (red); N (black); C (white); F (green); L (yellow)
10 leads	R (red); N (black); F (green); L (yellow); C1 (red); C2 (yellow); C3 (green); C4 (brown); C5 (black); C6 (purple);



AAMI/AHA (American standard) color-coding standards

(Association for the Advancement of Medical Instrumentation)

3 leads	RA (white); LL (red); LA (black);
5 leads	RA (yellow); RL (green); V (brown); LL (red); LA (black);
10 leads	RA (white); RL (green); LL (red); LA (black); V1 (brown); V2 (yellow); V3 (green); V4 (blue); V5 (orange); V6 (purple);



holter cables system color system, IEC color or AHA color



AAMI/AHA standards electrodes placement (12 leads);

Pansw leadwires are made to meet either IEC or AAMI/AHA color-coding standards.

Options of detachable leadwire sets include clip or snap connectors, choice of lengths, DIN style or traditional style connector, and individually replaced or grouped sets are available. The product line includes ECG cables that are shielded, protected against defibrillation and electrosurgery, can be used for respiration monitoring

Examples:

3 leads snaps IEC color coding;

3 leads clips AHA/AAMI color coding

3 leads clips IEC color coding;

3 leads snaps AHA/AAMI color coding;

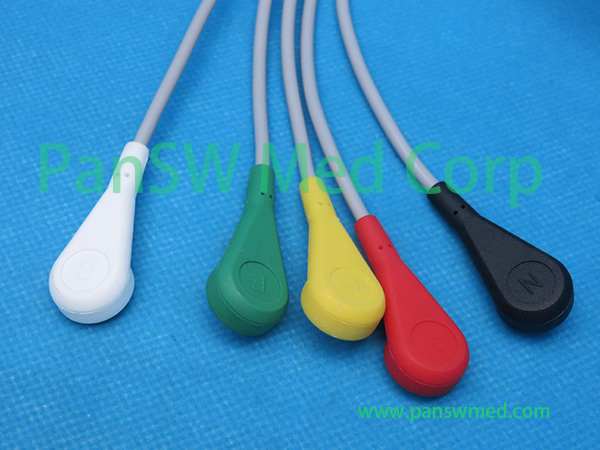

5 leads clips IEC color coding;
