Covidien Nellcor N-560 Front Panel, Keypad and Display Board Assembly
Front housing panel, keypad and LED display-board components for repairing compatible Covidien Nellcor N-560 pulse oximeters.
Product Overview

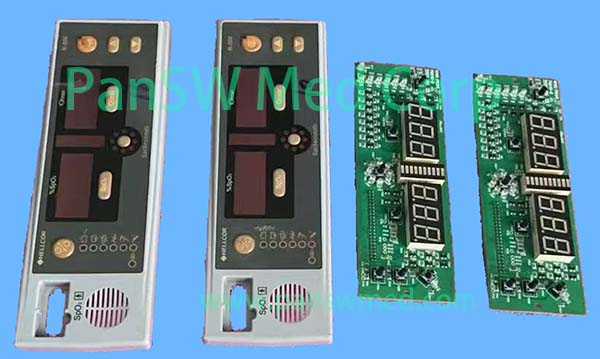

These front-panel components are intended for the Covidien Nellcor N-560 pulse oximeter. Available components shown include the molded front housing panel with printed control overlay and the internal keypad/display circuit board with numerical LED displays. They can be used to repair an N-560 with a damaged front panel, worn buttons, defective indicator display or faulty keypad/display PCB. This product differs from a replacement display alone because it may include the front housing panel, control overlay, keypad switches and display-board assembly. The exact supplied configuration should be confirmed when ordering. The complete pulse oximeter, rear housing, main board, battery and SpO₂ sensor are not included.
Application and Ordering Notes
Before ordering, confirm:
The equipment model is Nellcor N-560
The required item is the front panel, display board or complete front-panel assembly
The button positions and printed control overlay match the original
The LED-display arrangement matches the existing board
The PCB dimensions, connectors and mounting points are identical
The required hardware revision matches the original unit
Please provide photographs of the original front panel, both sides of the circuit board and all connector positions when compatibility confirmation is required.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
