Display Connection Cable for Mindray uMEC6 uMEC10 Patient Monitors
Internal display connection cable harness for compatible Mindray uMEC6 and uMEC10 patient monitors, with multi-pin connectors at both ends.
Product Overview

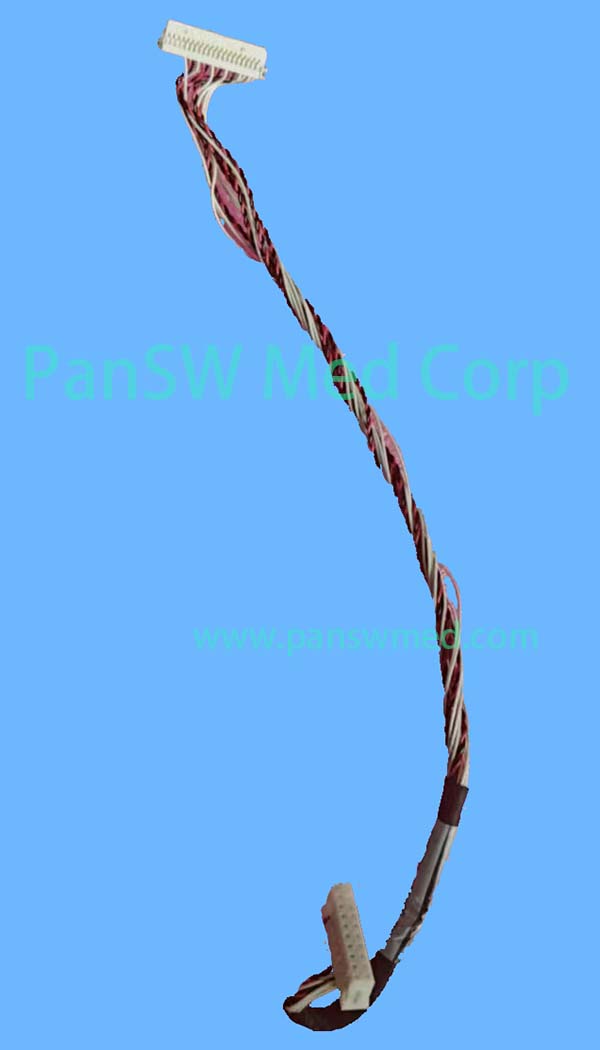

This internal cable harness connects the display assembly to the corresponding circuit board inside compatible Mindray uMEC6 and uMEC10 patient monitors. The cable features twisted conductors, protective wrapping and multi-pin connectors at both ends. It can be used to replace a damaged, intermittent or open display connection cable during patient-monitor repair. This is a display connection harness and should not be confused with the touchscreen cable, backlight power cable or other internal wiring assemblies. The product supplied is one display connection cable as shown. The LCD panel, touchscreen, main board and patient monitor are not included.
Application and Ordering Notes
Different uMEC6 and uMEC10 production versions may use different LCD panels and internal cables. Before ordering, confirm:
The patient-monitor model is uMEC6 or uMEC10
Both connector shapes match the original cable
The connector pin counts and keying positions are identical
The cable length and branch arrangement match
The LCD-panel version is compatible
The required item is the display cable rather than the touchscreen or backlight cable
Please provide photographs of both original connectors, the complete cable and the LCD-panel label when compatibility confirmation is required.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
