Dräger Infinity Delta Patient Monitor Rotary Encoder Assembly
Rotary control encoder assembly with ribbon cable and connector for the Dräger Infinity Delta patient monitor.
Product Overview

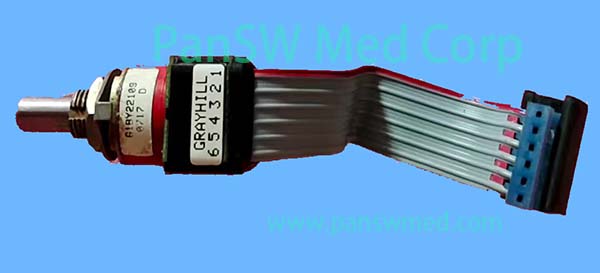

This rotary encoder assembly is used for menu navigation and equipment control on the Dräger Infinity Delta patient monitor. It can replace a diagnosed encoder with intermittent movement, incorrect directional response or failed control input. The assembly includes the encoder, metal shaft, retaining nut, ribbon cable and multipin connector. The external plastic knob cap is not shown.
Application and Ordering Notes
Verify the monitor model, encoder markings, shaft dimensions, ribbon-cable pin count and connector orientation before ordering. Similar Dräger monitor models may use visually similar encoders with different electrical configurations.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
