Dräger Patient Monitor Grayhill Rotary Encoder and Control Knob Assembly 61BY22109 / 62A15-02-030
Grayhill rotary encoder and control-knob assembly for compatible Dräger patient monitors. Supplied with the mounting bracket, ribbon cable and connector shown. References: 61BY22109 and 62A15-02-030.
Product Overview

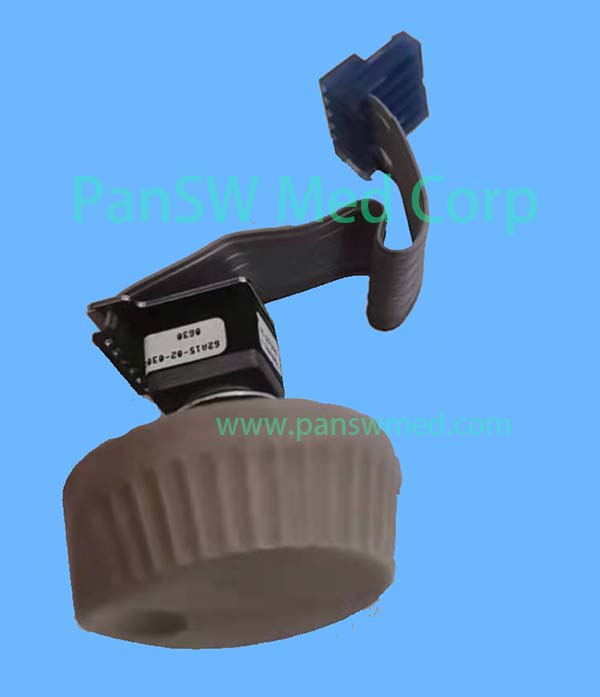

This rotary control assembly is intended for compatible Dräger patient monitors. It is used as a front-panel navigation and adjustment control during equipment servicing. The assembly includes the ridged control knob, Grayhill rotary encoder, metal mounting bracket, flat ribbon cable and connector shown in the product images. The supplied Dräger reference is 61BY22109. The Grayhill encoder is marked 62A15-02-030, with 0630 as an additional marking.
Application and Ordering Notes
Confirm the complete Dräger monitor model, reference number, Grayhill encoder marking, connector type, ribbon-cable configuration, mounting bracket and knob design before ordering. Similar-looking assemblies may use different electrical connections or mounting arrangements.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
