EDAN Elite V5 V6 V8 Patient Monitor Mainboard-to-Keypad Wire Harness
Internal wire harness connecting the mainboard and keypad/control board in compatible EDAN Elite V5, V6 and V8 patient monitors.
Product Overview

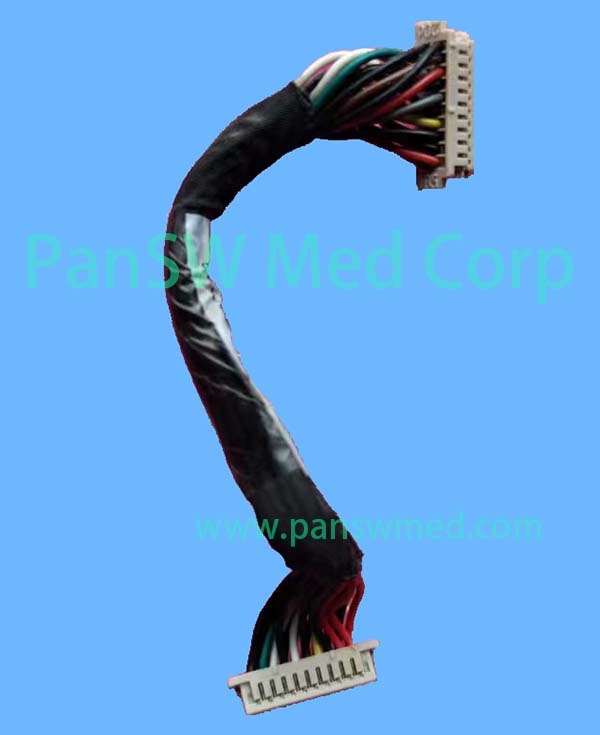

This internal interconnection cable is designed for compatible EDAN Elite V5, Elite V6 and Elite V8 patient monitors. It connects the monitor’s mainboard to the keypad or control board. The assembly consists of individually insulated wires, a protective wrapped section and multi-pin plug connectors at both ends. It can be used when repairing a damaged, loose or unreliable internal keypad connection.
Application and Ordering Notes
Compatibility may vary between hardware revisions. Before ordering, compare the connector pin count, socket keying, connector orientation, cable length and wire arrangement with the original cable. Do not assume that every Elite V5, V6 and V8 revision uses the same harness.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
