Product information
Specifications
| Brand |
EDAN |
| Compatible Model |
iM60 iM70 iM80 |
| Product Type |
Maintenance Part |
| Category |
Machine maintenance parts |
| Product Type |
Multifunction interface / adapter board |
| Compatible Brand |
EDAN |
| Compatible Models |
iM60 / iM70 / iM80 |
| Visible Assembly IDs |
02.05.2513450101; 02.02.452276012 |
| Interfaces |
Multiple external I/O ports and internal board connectors as pictured |
| Included Item |
One multifunction interface board assembly as pictured |
| External Cables Included |
No |
| Patient Monitor Included |
No |
| Installation |
Professional installation recommended |
| Condition |
Please confirm before ordering |
Product Overview

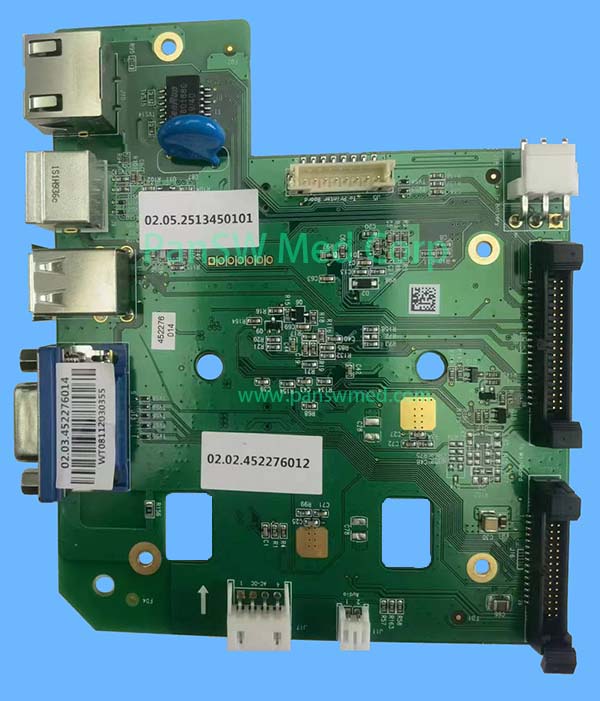

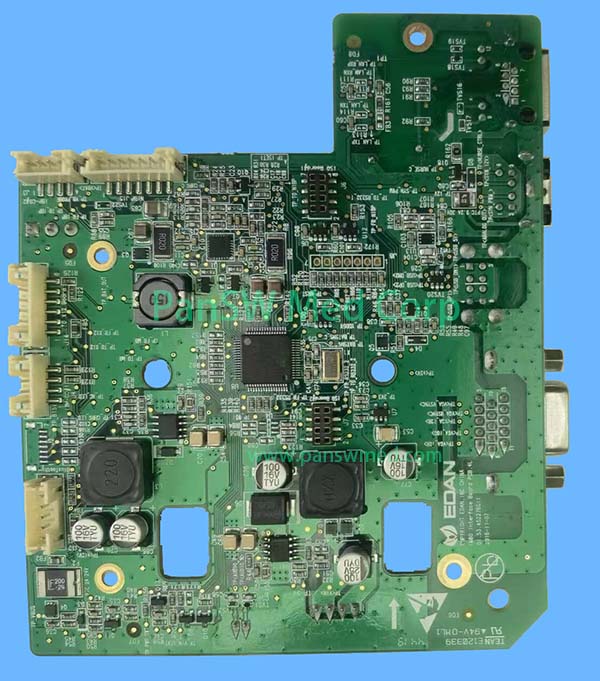

This multifunction interface board is used inside compatible EDAN iM-series patient monitors as an internal I/O and signal-routing assembly. It may replace a board affected by damaged ports, failed communication interfaces, broken connectors, liquid damage, component failure, or intermittent internal connections after qualified diagnosis. The assembly includes the external connectors, internal headers, and board components shown in the photographs. The patient monitor, display, parameter modules, cables, and other internal boards are not included unless specifically confirmed.
Application and Ordering Notes
Before ordering, compare the original board’s complete part number, revision, PCB shape, mounting-hole locations, port types, connector count, connector positions, and component layout with the photographs. EDAN iM60, iM70, and iM80 hardware revisions may use different interface boards, so the model name alone is insufficient for compatibility confirmation.
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
