EDAN M8 M8B iM8 Patient Monitor LCD Display Adapter Video Interface Board
LCD display adapter and video interface board for compatible EDAN M8, M8B, and iM8 patient monitors. This internal PCB connects the display assembly to the monitor electronics and should be matched by its board number, connectors, and hardware revision.
Product Overview
This LCD socket and video interface board is used inside compatible EDAN M8-series patient monitors as part of the display connection system.
Application and Ordering Notes
Before ordering, compare the original board’s PCB number, board outline, mounting-hole positions, flat-flex connectors, pin-header layout, power sockets, and connector orientation with the photographs. EDAN M8-series monitors may use different display boards across production and hardware revisions.

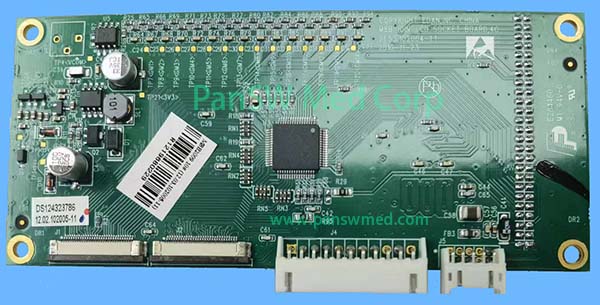

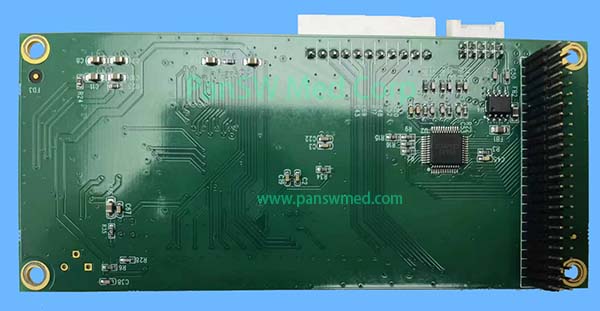

Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
