EDAN M8, M8B, M9 and M9B Patient Monitor Main Board / Main Control Board
Main board/main control board for compatible EDAN M8, M8B, M9 and M9B patient monitors. Confirm the PCB number, hardware revision, firmware and connector arrangement before ordering.
Product Overview

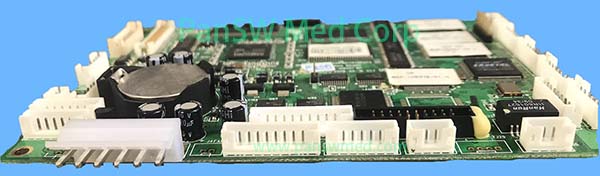

Replacement main board and main control board for selected EDAN patient monitors, including the M8, M8B, M9 and M9B models. The photograph shows one representative mainboard version with multiple internal cable connectors. The complete PCB number and revision labels are not readable from the supplied photograph. Different hardware revisions, firmware versions, connectors and monitor configurations may exist among these models. Please compare the original board’s markings, layout and connectors before ordering. This listing includes only the specifically quoted mainboard. The display, power board, parameter modules, internal cables and complete patient monitor are not included.
Application and Ordering Notes
Different PCB revisions, processors, firmware configurations and connector arrangements may exist. Before ordering, please send PanSW the monitor model, serial number, complete board markings and clear photographs of both sides of the original board and its connectors.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
