EDAN SE-601 ECG Machine LCD Display Module
Replacement LCD display module for the EDAN SE-601 electrocardiograph, supplied with the attached interface PCB and connector.
Product Overview

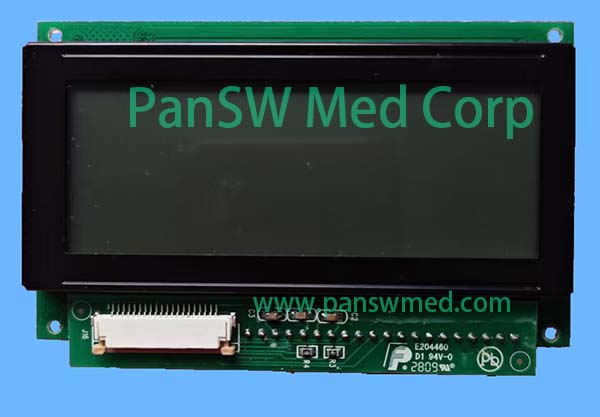

This LCD display module is intended for repairing compatible EDAN SE-601 ECG machines with a damaged, blank, dim or malfunctioning display. The assembly consists of the LCD panel, display frame, attached circuit board and interface connector shown in the product photograph. No unique EDAN replacement-part number is visible, so compatibility must be established by comparing the original display assembly.
Application and Ordering Notes
Confirm compatibility by comparing the ECG machine model, LCD dimensions, connector type, connector position, mounting-hole locations and PCB layout. Different SE-601 production revisions may use different display assemblies.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
