Front Panel Keypad Control Board 050-000734-00 for Mindray iMEC 8 iMEC 10 iMEC 12 Patient Monitors

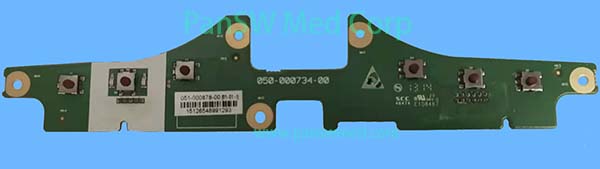

Front panel keypad control PCB for compatible Mindray iMEC 8, iMEC 10, and iMEC 12 patient monitors. The board has seven tactile switches and is marked 050-000734-00.
Product Overview
This front panel keypad control board is designed for compatible Mindray iMEC-series patient monitors, including the iMEC 8, iMEC 10, and iMEC 12. The PCB contains seven tactile switches used with the monitor’s external keypad or button membrane. It can be used when troubleshooting unresponsive, intermittent, or physically damaged front-panel controls. This listing is for the internal keypad circuit board shown in the photographs. The external silicone keypad, decorative front-panel label, cables, and other monitor components are not included unless specifically confirmed.
Application and Ordering Notes
Match PCB number 050-000734-00 before ordering. Also compare the board shape, connector positions, mounting holes, switch layout, and monitor revision with the original part. Compatibility may vary between different iMEC configurations and production revisions.

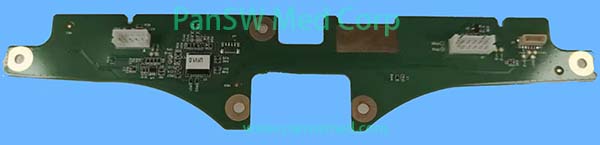

Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
