Fukuda Denshi CardiMax FX-7402 ECG Main Control Board

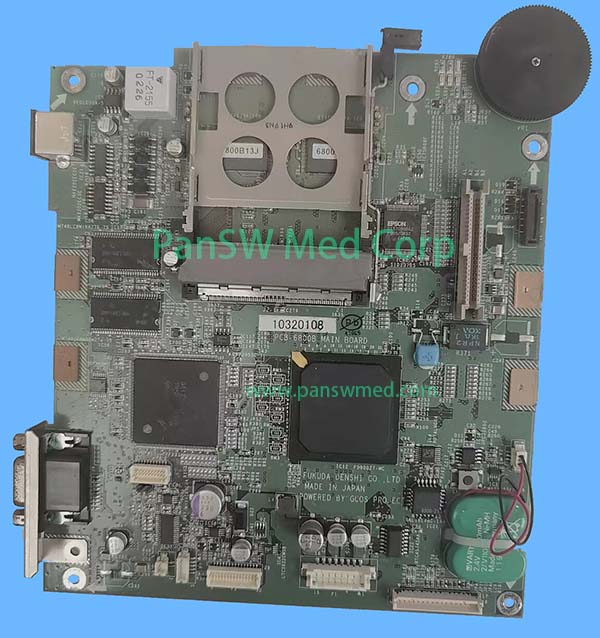

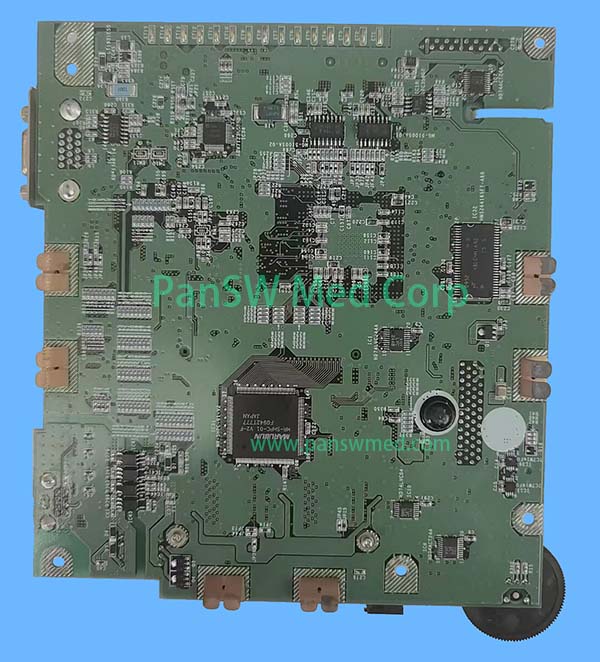

Main control board for compatible Fukuda Denshi CardiMax FX-7402 electrocardiographs. The photographs show both sides of the board, including its card interface, external connectors, control dial, and internal board connectors.
Product Overview
This main control board is intended for compatible Fukuda Denshi CardiMax FX-7402 electrocardiograph machines. It serves as a central electronic assembly for system control and communication with connected internal components.
Application and Ordering Notes
Before ordering, compare the board layout, printed markings, connector positions, card interface, mounting points, control-dial assembly, and component configuration with the original board. FX-7402 production revisions may use different mainboard versions. Installation should be performed by a qualified technician using appropriate ESD precautions.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
