GE Dash 1800 Dash 2500 CCFL Backlight Inverter Board 2023703-001
CCFL display backlight inverter/driver board 2023703-001 for compatible GE Dash 1800 and Dash 2500 patient monitors. The PCB is marked 20223173-001 Revision A.
Product Overview

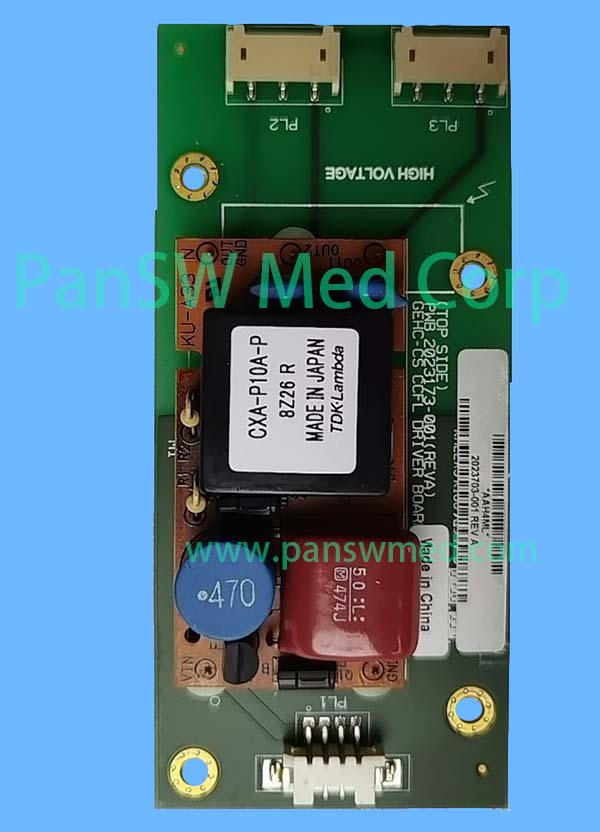

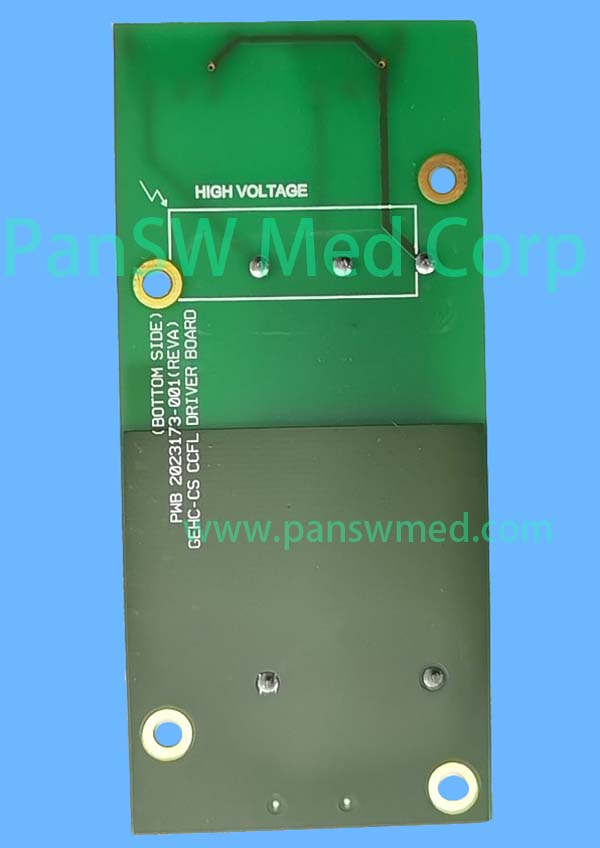

Replacement CCFL backlight inverter and driver board for compatible GE Dash 1800 and Dash 2500 patient monitors. The photographed board carries the assembly marking 2023703-001, Revision A and PCB marking PWB 20223173-001, Revision A. It is identified on the PCB as a GEHC-CS CCFL Driver Board. The installed high-voltage inverter module is marked TDK-Lambda CXA-P10A-P. This board supplies the high-voltage output required by the monitor’s CCFL display backlight. Different LCD panels, backlight technologies, PCB revisions and connector configurations may exist. Please compare all board markings and connectors before ordering. Installation should be performed by qualified service personnel because the board produces high voltage. This listing includes only the specifically quoted inverter board. The LCD screen, backlight lamps, cables and complete patient monitor are not included.
Application and Ordering Notes
Different LCD panels, CCFL backlights, PCB revisions and connector arrangements may exist. Before ordering, please send PanSW the monitor model, serial number, original board number and clear photographs of the board, connectors and installed LCD panel label.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
