Mindray BeneHeart D2 D3 D6 Defibrillator Rotary Encoder Selector Switch
Wired rotary encoder and selector-switch assembly for compatible Mindray BeneHeart D2, D3 and D6 defibrillator/monitors.
Product Overview

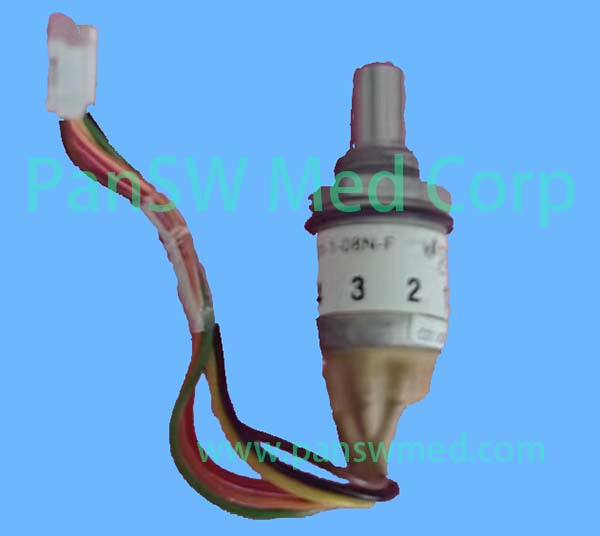

This rotary encoder and selector-switch assembly is intended for the repair of compatible Mindray BeneHeart D2, D3 and D6 defibrillator/monitors. The component incorporates a metal control shaft, multi-position switch body, mounting hardware and attached wiring harness with equipment connector. It is installed behind the equipment’s front control panel and communicates the selected rotary-control position to the associated circuitry. The product supplied is one wired encoder-switch assembly as shown. The external control knob, front panel, control board and complete defibrillator are not included.
Application and Ordering Notes
Different BeneHeart models and hardware revisions may use switches with similar external appearances but different electrical configurations.
Before ordering, confirm:
Exact BeneHeart model and hardware revision
Switch manufacturer and body markings
Number of rotary positions and detents
Shaft diameter, length and profile
Mounting-thread dimensions
Connector shape and number of contacts
Wire colors and pin assignment
Harness length and routing
Do not determine compatibility only from the external appearance. Please provide photographs of the existing switch, connector and identifying markings if confirmation is required.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
