Mindray BeneHeart R3 R12 Electrocardiograph Main Control Boards
Main control board options for Mindray BeneHeart R3 and R12 electrocardiographs. Multiple PCB designs are shown; confirm the installed board number and layout before ordering.
Product Overview

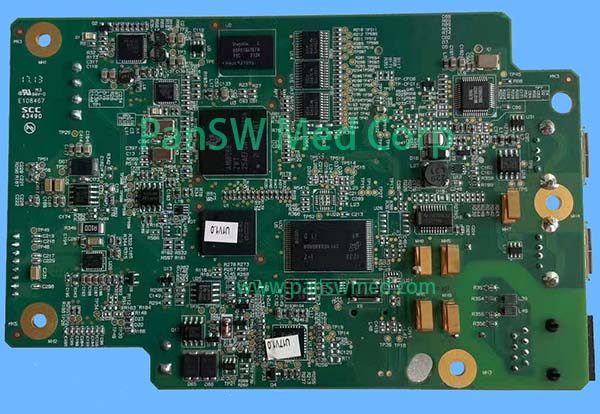

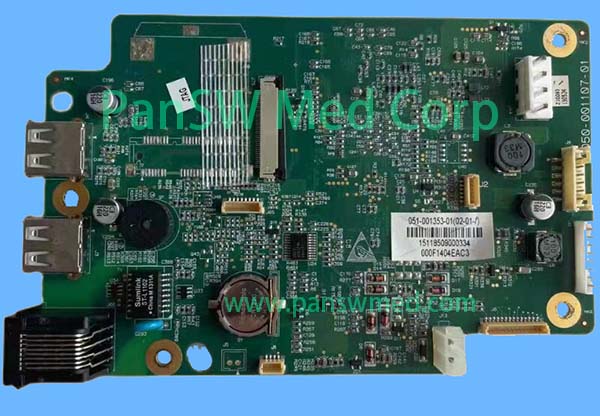

These main control boards are intended for compatible Mindray BeneHeart R3 and R12 electrocardiographs. The photographs show two different PCB designs, indicating model-specific or hardware-revision variants. They should not be treated as the front and reverse sides of one board or assumed to be directly interchangeable. The first photographed board carries identification label 051-001353-01 (02-01-1) and PCB marking 050-001107-01. Please provide photographs and all identification numbers from the original board so that the correct version can be selected.
Application and Ordering Notes
The pictured boards have substantially different layouts and are not automatically interchangeable. Confirm compatibility using the exact ECG-machine model, complete board number, PCB layout, connector positions, mounting holes and original-board photographs. Configuration or software service may be required after installation.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
