Mindray PM50 Handheld Pulse Oximeter LCD Screen PCB-JCG12864A05-01 Rev.B

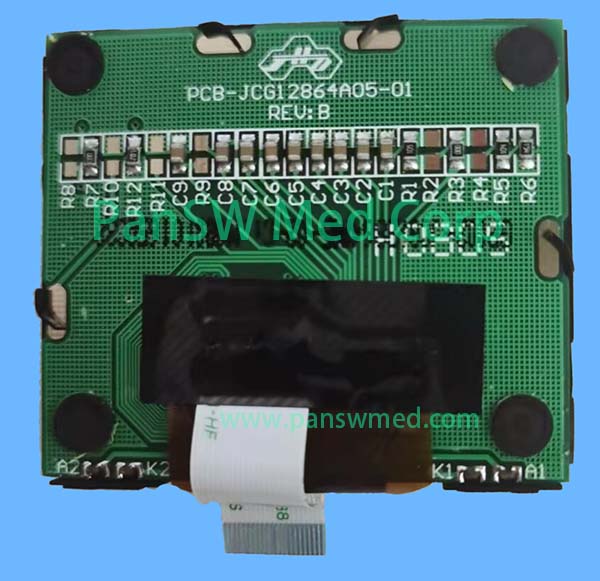

Replacement monochrome LCD screen assembly for compatible Mindray PM50 handheld pulse oximeters. The rear circuit board is marked PCB-JCG12864A05-01 Rev.B and includes the attached flex connector shown in the photographs.
Product Overview

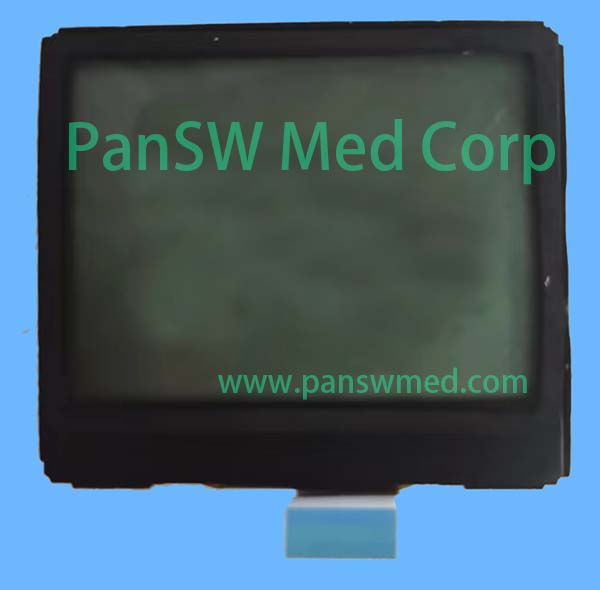

This LCD display module is used in compatible Mindray PM50 handheld pulse oximeters as the internal screen assembly. The pictured LCD, black bezel, rear circuit board, and attached flex connector are included. The device housing, keypad, main board, SpO₂ processing board, and complete pulse oximeter are not included.
Application and Ordering Notes
Before ordering, compare the original screen’s PCB number, revision, overall dimensions, bezel shape, flex-tail position, contact count, contact spacing, and connector orientation with the photographs. PM50 production revisions may use different display assemblies. Confirm that the display fault is not caused by the main board, power circuit, or an internal connection before replacing the screen.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
