New Original Mindray T1 iMEC8 iMEC10 iMEC12 iPM8 iPM10 iPM12 Parameter Boards
New original Mindray patient-monitor parameter boards for selected BeneView T1, iMEC and iPM models. Available configurations support ECG, temperature, NIBP, SpO₂ and, on full versions, IBP. Multiple part numbers are available and must be matched to the monitor configuration before ordering.
Product Overview

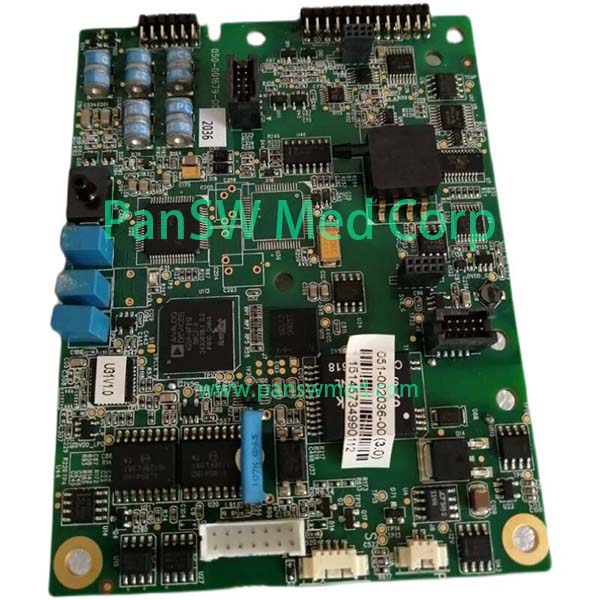

PanSW supplies different new original Mindray parameter boards and related SpO₂ boards for the BeneView T1, iMEC and iPM patient-monitor families. These boards process or transmit signals associated with ECG, respiration, temperature, non-invasive blood pressure and SpO₂ monitoring. Full-configuration versions may also support invasive blood pressure. Different boards are available for 5-lead and 12-lead ECG configurations and for Mindray, Nellcor or Masimo SpO₂ technology. The photograph currently displayed shows Mindray part number 051-002036-00, revision 3.0, which is a BeneView T1 parameter board. Other board photographs are available on request and can be added to the page later. Main Parameter Board Part Numbers Monitor family Part number Configuration Typical application BeneView T1 051-002036-00 5-lead full parameter board T1 only; board currently pictured BeneView T1 051-002037-00 12-lead full parameter board T1 12-lead configuration iMEC series 051-002040-00 5-lead standard ECG, Temp, NIBP and SpO₂ iMEC series 051-002041-00 5-lead full ECG, Temp, NIBP, SpO₂ and IBP iPM/9261 series 051-002063-00 5-lead standard Selected iPM standard configurations iPM/9261 series 051-002042-00 5-lead full Selected iPM full configurations iPM/9261 series 051-002043-00 12-lead full Selected iPM 12-lead configurations The iMEC service parts information identifies 051-002040-00 as the standard ECG/Temp/NIBP/SpO₂ board and 051-002041-00 as the full version with IBP Later iPM Parameter Board References Some iPM monitors use later Mortara-arrangement parameter boards: Part number Configuration Reported applications 115-033059-00 5-lead standard iPM5/6/7/8/10/12 115-033060-00 5-lead full iPM5/6/7/8/10/12 115-033061-00 12-lead full with resting ECG Selected iPM6/7/10/12 115-033062-00 12-lead configuration without resting ECG Selected iPM6/7/10/12 These later references should not be assumed interchangeable with the older 051-series boards. SpO₂ Board Options The main parameter board may work with a separate SpO₂ processing board. Available references include: Part number SpO₂ technology 051-000943-00 Mindray 9008 V2.0 SpO₂ board 051-002870-00 Mindray 9008 V2.0 SpO₂ board with later algorithm 100-000106-00 Nellcor SpO₂ board 040-001149-01 Masimo MS-2013 SpO₂ board The SpO₂ technology must match the monitor’s connector panel, software and installed configuration. iMEC Parameter Connector Assemblies Part number Connector-panel configuration 115-010355-00 ECG, Temp, NIBP and Mindray SpO₂ 115-010356-00 ECG, Temp, NIBP and Nellcor SpO₂ 115-010357-00 ECG, Temp, NIBP and Masimo SpO₂ 115-010358-00 ECG, Temp, NIBP, Mindray SpO₂ and IBP 115-010359-00 ECG, Temp, NIBP, Nellcor SpO₂ and IBP 115-010360-00 ECG, Temp, NIBP, Masimo SpO₂ and IBP 12-Lead iMEC Connector-Panel References Part number Configuration 115-033036-00 12-lead ECG, Temp, NIBP and Mindray SpO₂ 115-033035-00 12-lead ECG, Temp, NIBP and Nellcor SpO₂ 115-033037-00 12-lead ECG, Temp, NIBP and Masimo SpO₂ 115-033028-00 12-lead ECG, Temp, NIBP, Mindray SpO₂ and IBP 115-033027-00 12-lead ECG, Temp, NIBP, Nellcor SpO₂ and IBP 115-033029-00 12-lead ECG, Temp, NIBP, Masimo SpO₂ and IBP Product Information Brand: Mindray Product type: Multiparameter patient-monitor board Condition: New, original Mindray component Available functions: ECG, respiration, temperature, NIBP and SpO₂ Optional function: IBP on applicable full-configuration boards ECG configurations: 5-lead or 12-lead SpO₂ options: Mindray, Nellcor or Masimo Current product photograph: 051-002036-00, BeneView T1 Other photographs: Available on request Availability: Subject to current stock
Application and Ordering Notes
Before ordering, please provide:
Complete monitor model
Monitor serial number
Complete assembly number on the original board
Photographs of both sides of the original board
ECG configuration: 5-lead or 12-lead
SpO₂ technology: Mindray, Nellcor or Masimo
Whether IBP is installed
Software or hardware revision, if available
Installation Notice
Installation and configuration should be completed by qualified biomedical service personnel. After replacement, verify ECG, respiration, temperature, NIBP, SpO₂, IBP where applicable, alarms and patient-connector operation before clinical use.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
