Nihon Kohden ECG-1250P ECG-1250C Key Control Boards UT-24441 UT-24442/24443

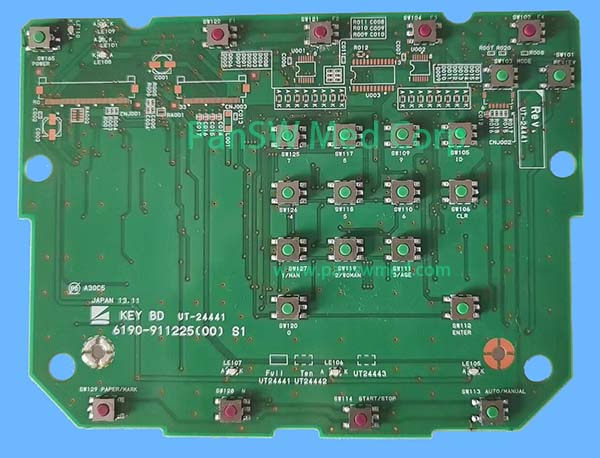

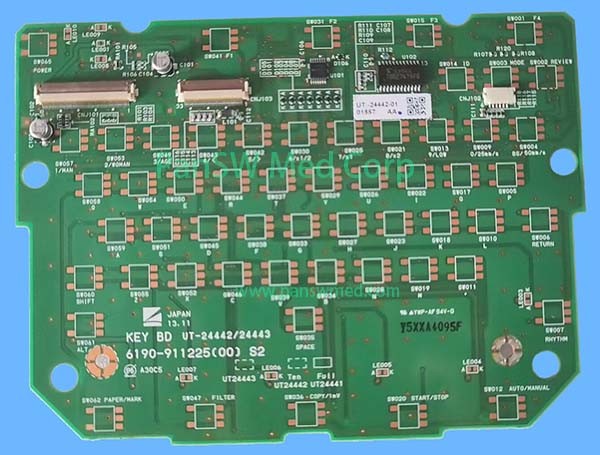

Internal keypad control boards for compatible Nihon Kohden ECG-1250P and ECG-1250C electrocardiographs. The photographed boards are marked UT-24441 and UT-24442/24443, with assembly number 6190-911225(C00). Confirm whether the S1 or S2 board is required before ordering.
Product Overview
These internal key control boards process front-panel button inputs in compatible Nihon Kohden ECG-1250 series electrocardiographs.
Application and Ordering Notes
Before ordering, compare the original board’s UT number, S1 or S2 identifier, 6190-911225(C00) assembly number, connector arrangement, switch layout, mounting holes, dimensions, and PCB shape with the photographs. UT-24441 and UT-24442/24443 represent different board sections or configurations and should not be assumed interchangeable. Installation and post-repair functional testing should be performed by a qualified technician.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
