Nihon Kohden TEC-5521C TEC-5531C Defibrillator Printer Assembly

Internal printer and recorder assembly for compatible Nihon Kohden TEC-5521C and TEC-5531C defibrillator-monitors. The pictured assembly includes the printer mechanism, motor, circuit board, wiring, mounting frame, and housing. Visible markings include UR-0320 and FQSS0-2-100.

Nihon Kohden TEC-5521C TEC-5531C Defibrillator Printer Assembly
Brand
Nihon Kohden
Compatible Model
TEC-5521C TEC-5531C
Product Type
Maintenance Part
Category
Machine maintenance parts
Product Type
Internal printer / recorder assembly
Compatible Brand
Nihon Kohden / Shanghai Kohden
Compatible Models
TEC-5521C and TEC-5531C
Visible PCB Marking
UR-0320
Visible Assembly Marking
FQSS0-2-100
Included Components
Printer mechanism, motor, circuit board, wiring, mounting frame, and housing as pictured
Printer Paper Included
No
Installation
Professional installation recommended
Condition
Please confirm before ordering

Product Overview

Internal printer and recorder assembly for compatible Nihon Kohden TEC-5521C and TEC-5531C defibrillator-monitors. The pictured assembly includes the printer mechanism, motor, circuit board, wiring, mounting frame, and housing. Visible markings include UR-0320 and FQSS0-2-100. The supplied configuration includes the printer mechanism, motor, circuit board, cables, and mounting components shown in the photographs. Printer paper, the external printer cover, and the complete defibrillator are not included unless specifically confirmed.

Application and Ordering Notes

Before ordering, compare the original assembly’s model, PCB marking, housing label, connectors, pin configuration, cable routing, mounting points, dimensions, paper path, and motor arrangement with the photographs. TEC-5521C and TEC-5531C hardware revisions may use different printer assemblies. The printer feed and output should be tested after installation.

Product Gallery

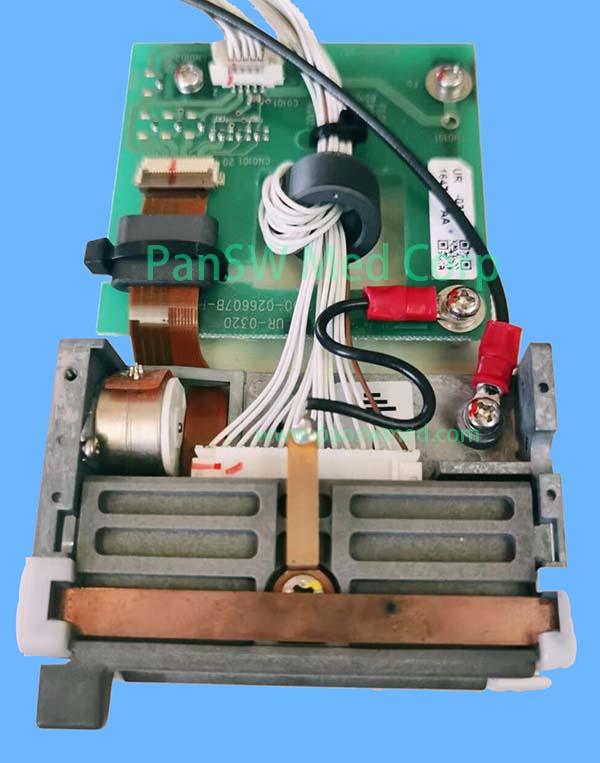

Nihon Kohden TEC-5521C TEC-5531C Defibrillator Printer Assembly image 1

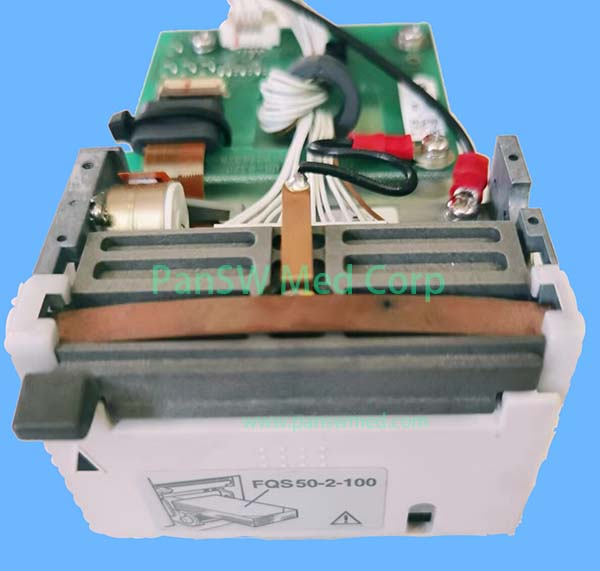

Nihon Kohden TEC-5521C TEC-5531C Defibrillator Printer Assembly image 2

Quality and Compatibility Notice

Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.

Compatibility confirmation: For Nihon Kohden TEC-5521C TEC-5531C Defibrillator Printer Assembly, please confirm connector shape, patient-end type, cable length, machine model, and OEM part number if available.
