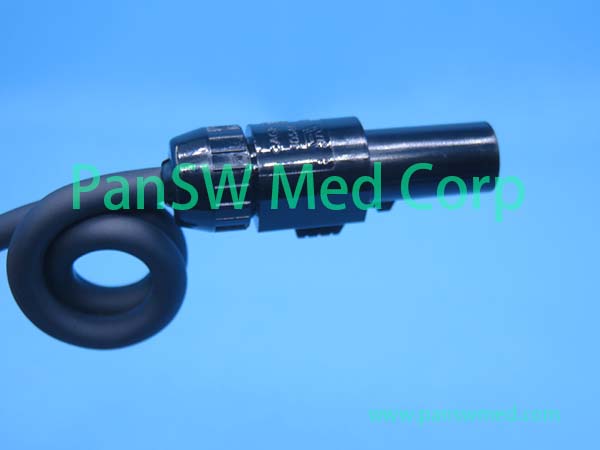

O₂ Cell Connecting Cable 1009-5570-000 for GE Datex-Ohmeda 9100 Anesthesia Machine

Breathing-system-to-O₂-cell connecting cable, part number 1009-5570-000, for compatible GE Datex-Ohmeda 9100 anesthesia systems. Confirm the equipment model and connector configuration before ordering.

O₂ Cell Connecting Cable 1009-5570-000 for GE Datex-Ohmeda 9100 Anesthesia Machine
Brand
GE Datex-Ohmeda
Compatible Model
9100
Product Type
Maintenance Part
Category
Machine maintenance parts
Product type
O₂ cell connecting cable
Official description
Cable Breathing System to O₂ Cell
Application
Anesthesia delivery system
Compatible brand
GE HealthCare / Datex-Ohmeda
Compatible model supplied
9100
Part number
1009-5570-000
Official exact replacement item
1009-8225-000
Connector configuration
Circular four-contact connector to modular plug, as pictured
Condition
Not specified
Included
One O₂ cell connecting cable as pictured
Not included
Oxygen sensor cell, breathing system, anesthesia machine or other accessories

Product Overview

This cable connects the breathing system to the oxygen sensor cell in compatible GE Datex-Ohmeda 9100 anesthesia equipment. The photographed cable is clearly marked 1009-5570-000. GE HealthCare also lists 1009-8225-000 as an exact replacement item for this part number. This listing covers the connecting cable only. It is not an SpO₂ patient-monitor cable and does not include the oxygen sensor cell.

Application and Ordering Notes

Different hardware revisions, connectors, configurations, and regional versions may exist. Before ordering, please send PanSW the equipment model, serial number, existing part number, and clear photos of the original part and connectors for compatibility confirmation.

Please confirm whether the required cable is 1009-5570-000 or the officially listed replacement 1009-8225-000.

Product Gallery

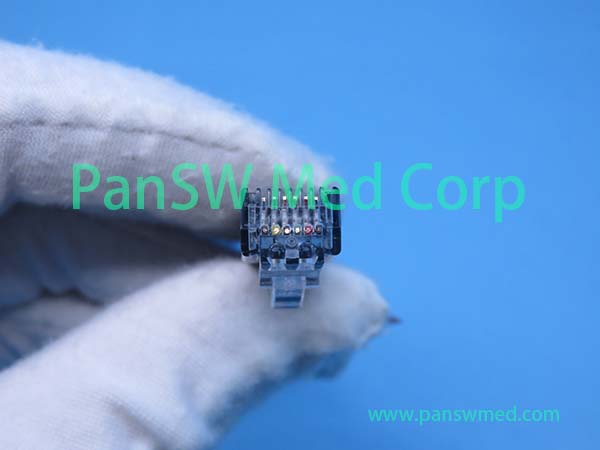

O₂ Cell Connecting Cable 1009-5570-000 for GE Datex-Ohmeda 9100 Anesthesia Machine image 1

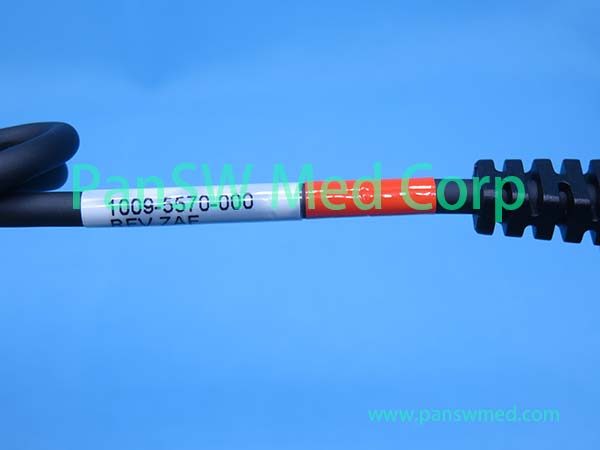

O₂ Cell Connecting Cable 1009-5570-000 for GE Datex-Ohmeda 9100 Anesthesia Machine image 2

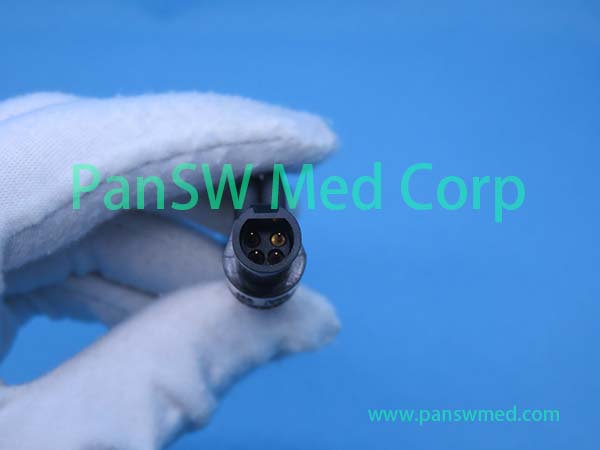

O₂ Cell Connecting Cable 1009-5570-000 for GE Datex-Ohmeda 9100 Anesthesia Machine image 3
O₂ Cell Connecting Cable 1009-5570-000 for GE Datex-Ohmeda 9100 Anesthesia Machine image 4

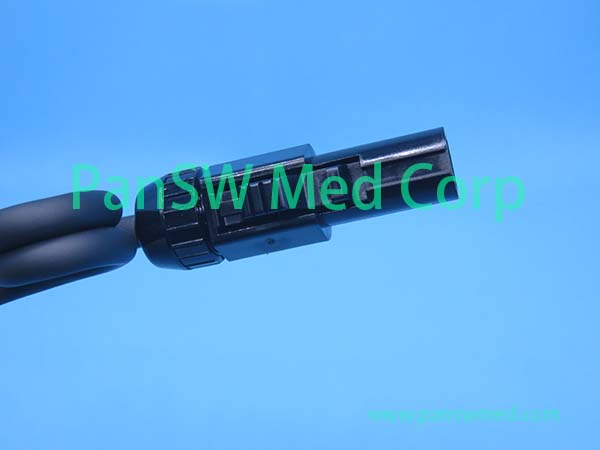

O₂ Cell Connecting Cable 1009-5570-000 for GE Datex-Ohmeda 9100 Anesthesia Machine image 5

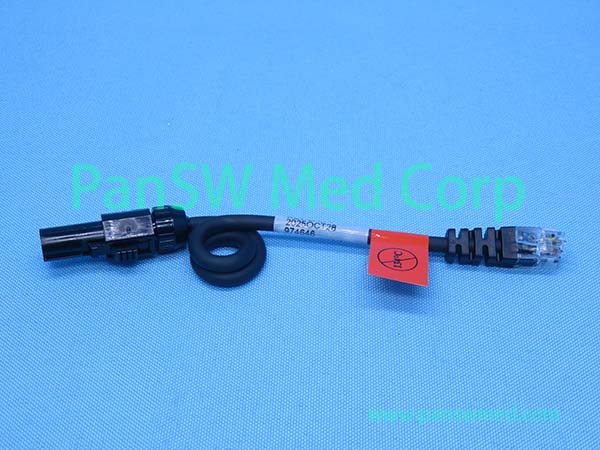

O₂ Cell Connecting Cable 1009-5570-000 for GE Datex-Ohmeda 9100 Anesthesia Machine image 6

Quality and Compatibility Notice

Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.

Compatibility confirmation: For O₂ Cell Connecting Cable 1009-5570-000 for GE Datex-Ohmeda 9100 Anesthesia Machine, please confirm connector shape, patient-end type, cable length, machine model, and OEM part number if available.
