Original Nihon Kohden Vismo PVM-2701 Patient Monitor Main Control Board Assembly
Original Nihon Kohden main control board assembly for the Vismo PVM-2701 patient monitor. Supplied with the connected indicator board and wiring shown in the product photographs.
Product Overview

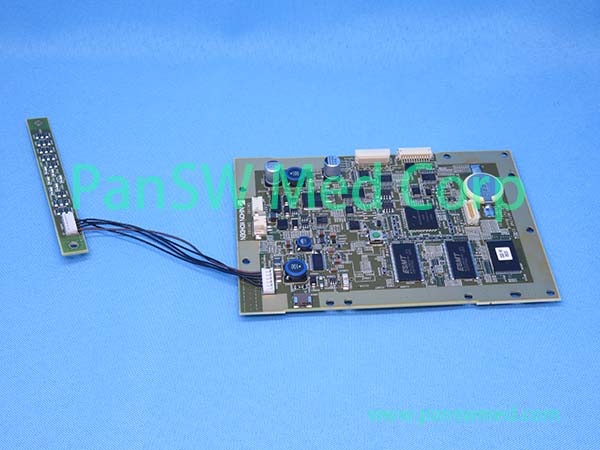

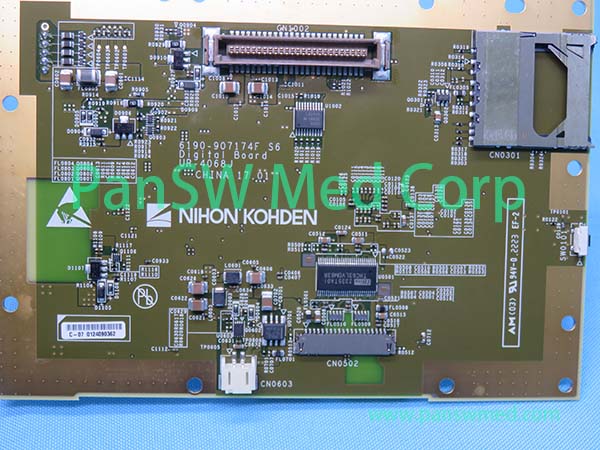

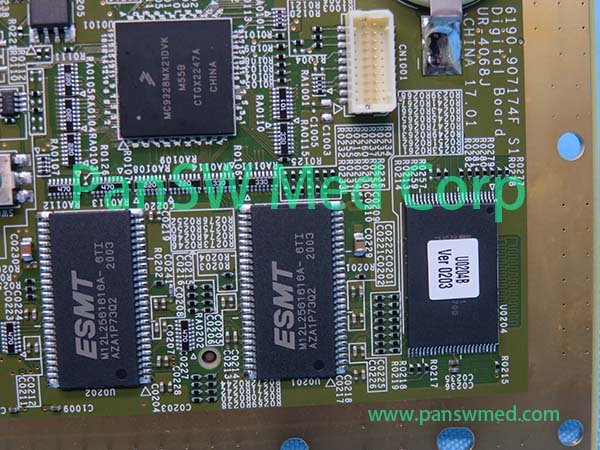

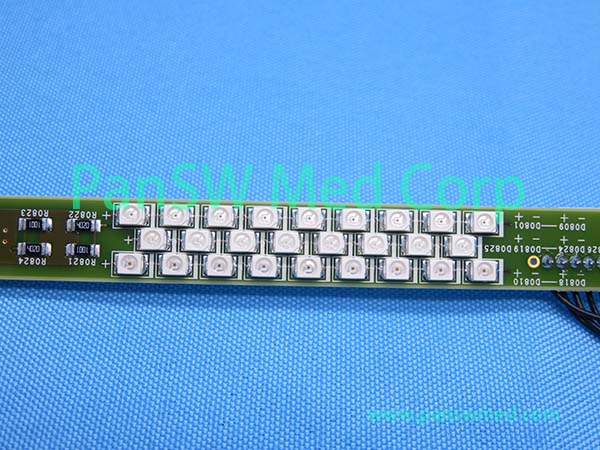

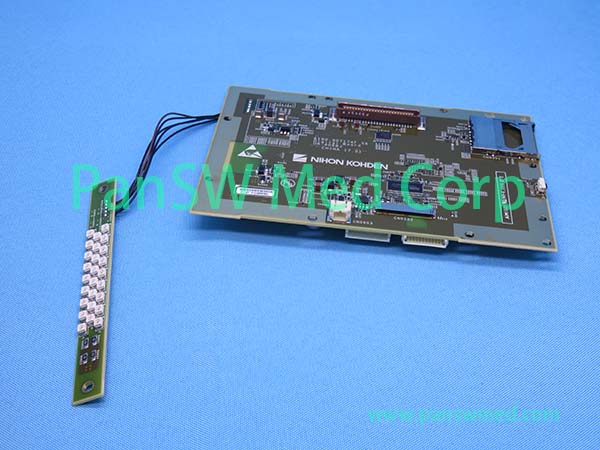

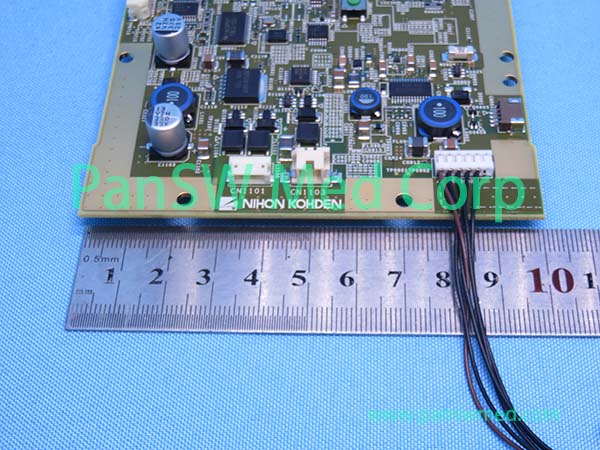

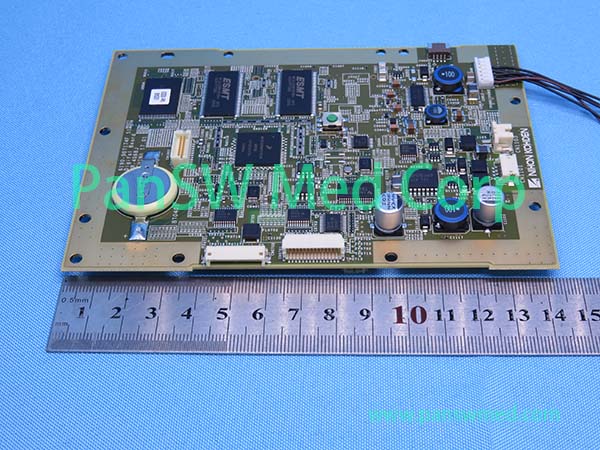

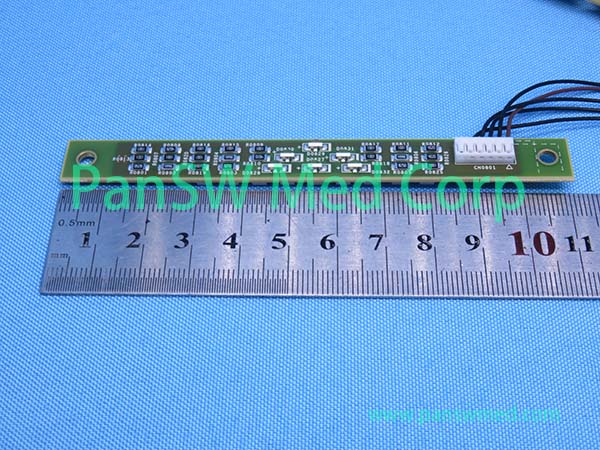

This original Nihon Kohden main control board assembly is intended for maintenance and repair of the Vismo PVM-2701 patient monitor. The photographs show the main PCB with its processors, memory components, connectors, backup battery and related circuitry. A connected narrow indicator board and cable harness are included in the photographed configuration. This is a specific main-board listing rather than a general PVM-2701 spare-parts page. It is intended for replacing a matching main control board after the original fault has been properly diagnosed. Only the boards and connected wiring shown in the photographs are included. The display, touchscreen, parameter boards, power supply, housing and complete patient monitor are not included.
Application and Ordering Notes
Nihon Kohden PVM-2701 patient monitors may use different main-board revisions or hardware configurations. Compatibility should not be determined from the monitor model alone.
Before ordering, compare:
PCB layout and printed board markings
Connector quantity, type and position
Processor and memory configuration
Mounting-hole positions
Attached indicator board and wiring
Monitor serial number and hardware revision
Please send clear photographs of both sides of the original board and all visible identification markings for confirmation.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
