Philips Efficia CM10 CM12 CM150 Patient Monitor Parameter Interface Board and Front Panel
Multiparameter connector interface board and front panel assembly for compatible Philips Efficia CM10, CM12 and CM150 patient monitors. The pictured configuration includes IBP, ECG, temperature, SpO₂ and NIBP interface positions.
Product Overview

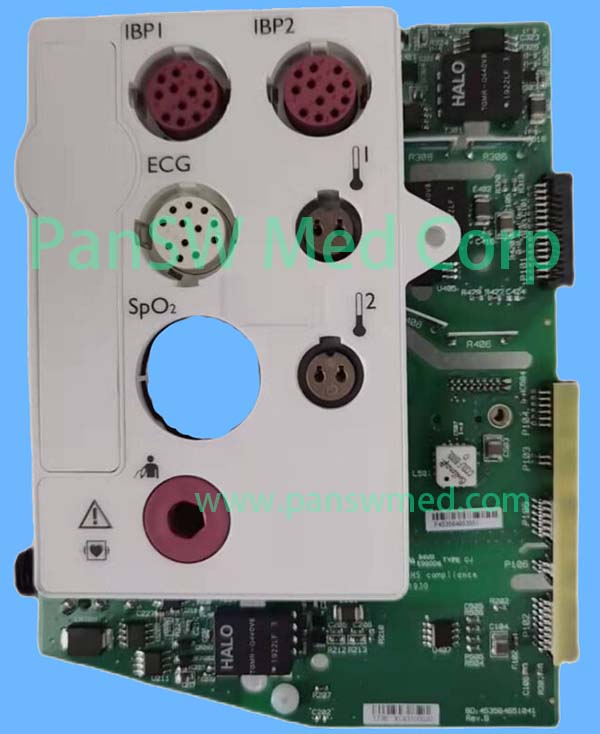

This parameter interface assembly is intended for compatible Philips Efficia CM10, CM12 and CM150 patient monitors. The complete component includes the rear circuit board and molded front connector panel shown. The faceplate provides labeled positions for IBP1, IBP2, ECG, T1, T2, SpO₂ and NIBP connections. The photographs show the exact connector configuration supplied. The SpO₂ position appears covered or unpopulated, so the installed parameter configuration should be compared carefully with the original assembly.
Application and Ordering Notes
Confirm the complete monitor model and product number, installed parameter configuration, PCB identification, revision, connector arrangement, edge connectors and faceplate layout before ordering. CM-series monitors may use different interface assemblies depending on their configured parameters.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
