Philips HeartStart XL M4735A Defibrillator 12-Pin ECG Input Socket and Cable Harness
Panel-mounted 12-pin ECG input socket and internal cable harness for compatible Philips HeartStart XL M4735A defibrillator monitors. Includes the circular receptacle, attached wiring and internal connector shown.
Product Overview

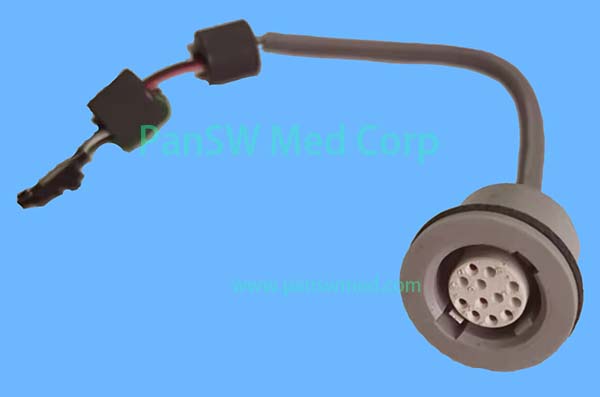

This ECG input socket assembly is intended for compatible Philips HeartStart XL M4735A defibrillator monitors. The assembly provides the machine-side connection for a compatible 12-pin ECG patient trunk cable. It includes the circular female receptacle, panel-mounting collar, attached short cable harness and internal electrical connector shown in the photograph. This listing is for the machine-side socket assembly only. The external ECG trunk cable and patient lead wires are not included.
Application and Ordering Notes
Confirm the complete defibrillator model, connector pin count, socket keying, mounting dimensions, harness length, wire arrangement and internal plug before ordering. Similar Philips ECG connectors may use different keying or internal connections.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
