Philips IntelliVue MP5 Patient Monitor IBP Parameter Interface Board Assembly

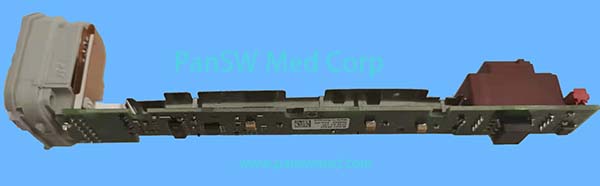

Internal parameter interface PCB assembly with an invasive blood pressure connection for compatible Philips IntelliVue MP5 patient monitors. Includes the circuit board and color-coded connector sections shown.
Product Overview
This internal parameter interface board assembly is intended for compatible Philips IntelliVue MP5 patient monitors equipped with an invasive blood pressure measurement configuration. The assembly incorporates the IBP patient-connector section together with associated interface circuitry and additional internal connectors. It may be used when repairing an MP5 monitor with a damaged IBP connector, parameter interface fault, or physically damaged circuit board. This is an internal parameter connector and interface board, not a separate external plug-in measurement module. The exact parameters supported depend on the board configuration and monitor revision.
Application and Ordering Notes
Philips MP5 parameter boards are available in different measurement configurations. Before ordering, compare the original board’s part number, enabled parameters, connector colors, connector positions, PCB layout, mounting points, and monitor hardware revision. The presence of an IBP connector alone does not confirm complete compatibility.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
