Philips V24E Patient Monitor Main Control Board Motherboard Assembly
Main processing and control board for compatible Philips V24E patient monitors. The assembly includes the processors, memory devices, communication ports, system connectors, and control circuitry shown.
Product Overview
This main control board assembly is intended for compatible Philips V24E patient monitoring systems. The PCB functions as the monitor’s central processing and system-control board. It incorporates multiple processors, memory components, communication interfaces, internal system connectors, and supporting electronic circuitry.
Application and Ordering Notes
V24E main boards may differ by hardware revision, software configuration, fitted components, and connector arrangement. Compare the original service part number, PCB revision, processor and memory configuration, connector positions, mounting holes, and communication ports before ordering.

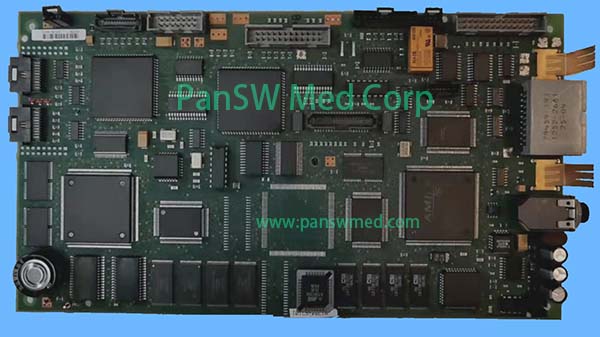

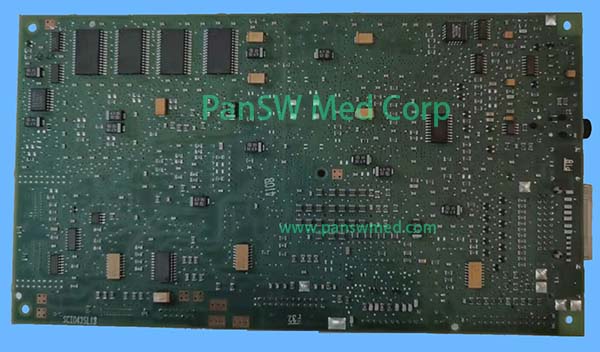

Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
