Product information
Specifications
| Brand |
Mindray |
| Compatible Model |
iPM 8 iPM 10 iPM 12 |
| Product Type |
Maintenance Part |
| Category |
Machine maintenance parts |
| Note |
Item Details |
| Note |
Condition Pre-owned / removed from equipment |
| Note |
Product Type Patient-monitor repair and replacement parts |
| Note |
Compatible Brand Mindray |
| Note |
Product Family iPM series |
| Note |
Applicable Models iPM 8, iPM 10, iPM 12 |
| Note |
Available Components Keypad board, mainboard, power board, housing and encoder |
| Note |
Example PCB Reference 050-000740-00 — verify before ordering |
| Note |
Supply Method Components sold separately |
| Note |
Installation For trained biomedical service personnel |
| Note |
Available Parts |
| Note |

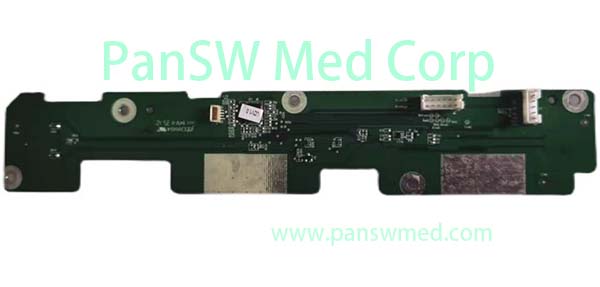

Keypad Control Board |
| Note |
Internal PCB containing the switches used by the monitor’s front-panel buttons. The silicone keypad, button caps, cables and mounting components may be supplied separately. |
| Note |
Main Control Board |
| Note |
The monitor’s main processing and system-control board. PCB revision, installed functions, software configuration and connectors must match the original unit. |
| Note |
Power-Supply Board |
| Note |
Internal board responsible for power conversion, charging and distribution. Connector arrangement and board revision should be confirmed before ordering. |
| Note |
Front and Rear Housing |
| Note |
Replacement enclosure components for repairing cracked, damaged, stained or incomplete monitor housings. The iPM 8, iPM 10 and iPM 12 use different housing sizes. |
| Note |
Rotary Encoder and Knob |
| Note |
The rotary encoder receives navigation and menu-selection input. The encoder, cable, mounting hardware and external knob cap may be separate components. |
Product Overview
PanSW supplies pre-owned electronic boards, control components and enclosure parts removed from compatible Mindray iPM-series patient monitors. Available components may include the keypad control board, main control board, power board, front and rear housing, rotary encoder and encoder knob. This is a family-level listing: parts used in the iPM 8, iPM 10 and iPM 12 are not necessarily interchangeable.
Application and Ordering Notes
The iPM 8, iPM 10 and iPM 12 belong to the same product family, but many components are model-specific. Before ordering, please provide PanSW with:
Exact monitor model and serial number
Photograph of the equipment nameplate
Original part or PCB number
Front and rear photographs of the required component
Clear photographs of all connectors
Confirmation of the exact part required
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
