Pre-Owned Original SCHILLER DEFIGARD 5000 Main Control and Defibrillation Board Assembly

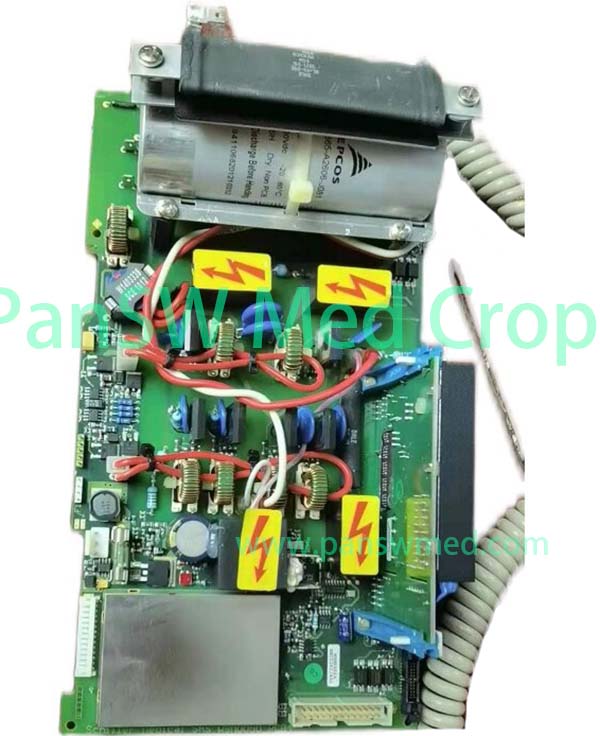

Pre-owned original internal circuit-board assembly for the SCHILLER DEFIGARD 5000 defibrillator/monitor. The pictured assembly includes control circuitry, high-voltage components and an energy-storage capacitor. Confirm the board number and complete configuration before ordering.
Product Overview
This original assembly was removed from a SCHILLER DEFIGARD 5000 and is supplied for professional equipment repair. Although it may be described commercially as a mainboard or main control board, the photograph shows substantial high-voltage defibrillation circuitry and a capacitor. The exact service designation may therefore be a main-control/defibrillation-board assembly rather than a conventional low-voltage mainboard. Product Information Brand: SCHILLER Product family: DEFIGARD Compatible model: DEFIGARD 5000 Product type: Main control/defibrillation board assembly Condition: Pre-owned original, removed from equipment Main components shown: Circuit board, high-voltage components and capacitor Supply format: Assembly as confirmed in the quotation Testing status: Confirmed before supply Price: Contact PanSW for quotation
Application and Ordering Notes
Because this assembly combines several electrical sections, please do not identify it solely as a “mainboard.” The buyer should compare:
PCB part number
Assembly part number
Capacitor label
Connector arrangement
Cable configuration
Mounting structure
PanSW can provide current-stock photographs for comparison.
Compatibility Notice
Different DEFIGARD 5000 production versions may use different board assemblies, capacitors or cable configurations. Please provide:
Complete equipment model
Defibrillator serial number
Original assembly part number
PCB revision
Photographs of both sides of the original assembly
Capacitor-label photograph
Connector and cable photographs
Description of the equipment fault
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
