PRIMEDIC XD100e M290 Defibrillator Power Supply Board 22406 Rev. 001
Power-supply and power-distribution circuit board marked Metrax GmbH 22406 Rev. 001, reported for PRIMEDIC XD100e and M290 defibrillators.
Product Overview

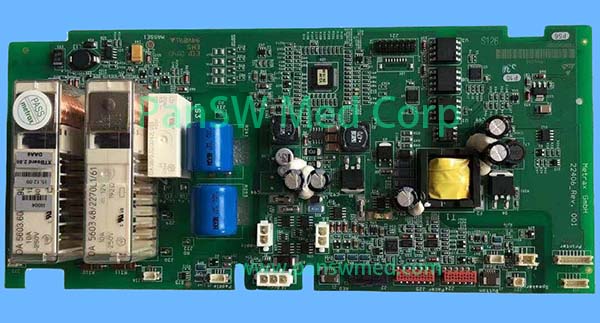

Replacement power-supply and power-distribution board for compatible PRIMEDIC XD100e and M290 defibrillators. The photographed board contains power relays, a transformer, voltage-regulation components, capacitors, and multiple connections for internal equipment assemblies. Based on this configuration, it should be classified as a power board rather than the defibrillator’s main control motherboard. Only the circuit-board assembly shown is included. The defibrillator, battery, high-voltage defibrillation board, display, cables, and other accessories are not included.
Application and Ordering Notes
Different hardware revisions, connectors, configurations, and regional versions may exist. Before ordering, please send PanSW the equipment model, serial number, existing part number, and clear photos of the original part and connectors for compatibility confirmation.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
