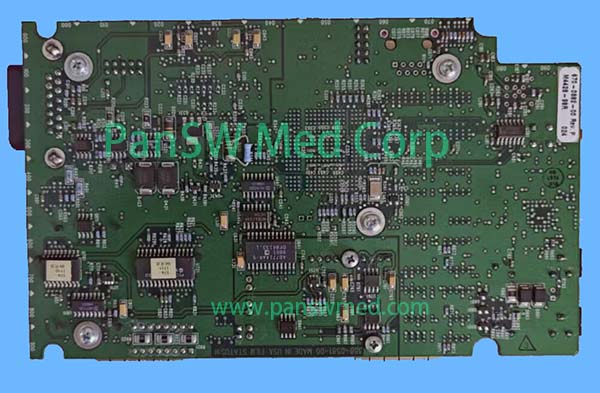

Spacelabs UltraView 90496 Command Module CPU/NIBP Main Board 670-0882-00 Rev P
Internal NIBP circuit board 670-0882-00 for compatible Spacelabs UltraView 91369 monitoring systems and 90496 parameter modules.
Product Overview
This NIBP circuit board is intended for the repair of compatible Spacelabs UltraView monitoring equipment associated with references 91369 and 90496. The board forms part of the non-invasive blood pressure measurement assembly inside the applicable parameter module. It carries the electronic control and interface circuitry required by the associated NIBP system. The product supplied is one circuit board as shown. The NIBP pump, valves, pressure transducer assembly, pneumatic manifold, tubing, module housing and complete patient monitor are not included.
Application and Ordering Notes
Compatibility must be determined from the board part number and revision, not only from the monitor or module model.
Before ordering, confirm:
Required board number is 670-0882-00
Required revision is compatible with Revision P
Existing equipment reference is 91369 or 90496
PCB shape and mounting-hole arrangement match
All connector positions and contact counts match
Associated NIBP pneumatic assembly is compatible
Software and hardware revisions support the replacement board
After installation, the NIBP system should undergo the manufacturer-specified pressure-accuracy, leakage, overpressure and functional safety tests by qualified service personnel.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
