Spacelabs UltraView 91369 91387 90496 SDLC Backplane Interface Board Assembly
SDLC backplane and interface-board assembly for compatible Spacelabs UltraView equipment references 91369, 91387 and 90496.
Product Overview

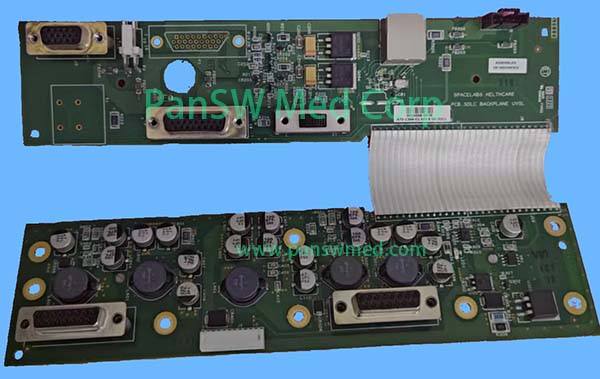

This internal SDLC backplane and interface-board assembly is intended for compatible Spacelabs UltraView monitoring equipment identified by references 91369, 91387 and 90496. The photographed component consists of two printed circuit-board assemblies connected by a ribbon cable. The upper PCB is marked “PCB, SDLC BACKPLANE UVSL” and incorporates several equipment connectors and internal interfaces. This product is supplied as the two-board assembly with the connecting ribbon cable as shown. Patient-parameter modules, patient cables, display assemblies, power supplies and complete monitors are not included.
Application and Ordering Notes
The references 91369, 91387 and 90496 may identify different monitors, modules or system configurations. Compatibility must therefore be confirmed using the board identifiers rather than the equipment model alone.
Before ordering, compare:
Complete equipment model and serial number
PCB part number and revision
“SDLC BACKPLANE UVSL” board marking
Number and position of all connectors
Ribbon-cable width and orientation
Mounting-hole arrangement
Dimensions and board shape
Configuration of the associated parameter module
This is different from the Spacelabs board with multiple color-coded patient-parameter connectors. Please provide clear photographs of both sides of the existing boards if confirmation is required.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
