Spacelabs Ultraview SL 91369 AFE Parameter Interface Board 91496

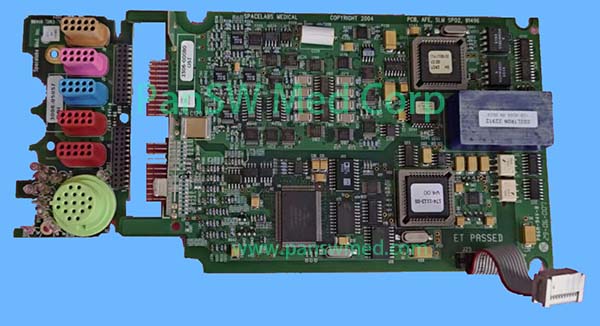

parameter-interface board assembly marked 91496 for compatible Spacelabs Ultraview SL 91369 patient monitors, supplied with the color-coded connector panel.
Product Overview
This AFE parameter-interface board assembly is intended for compatible Spacelabs Ultraview SL 91369 patient monitors. The assembly provides the internal electronic and physical interface between compatible patient-parameter connections and the monitor system. It may be used during repairs involving damaged input connectors, parameter-interface faults or a defective analog front-end board. The product supplied includes the main PCB, attached parameter-connector board and internal ribbon cable as shown. Patient cables, parameter sensors, other internal boards and the complete monitor are not included.
Application and Ordering Notes
Spacelabs SL 91369 monitors may use different parameter, SpO₂ and hardware configurations. Before ordering, confirm:
Monitor model is Ultraview SL 91369
Required PCB marking includes 91496
Existing board is an AFE/SLM SpO₂ version
Connector quantity, colours and arrangement match
Main edge connector and ribbon-cable connection match
Board revision and installed parameter configuration are compatible
This is an internal AFE parameter-interface board assembly. It should not be confused with a power-supply board, main control board, LCD backlight inverter board or external plug-in parameter module.
Please provide photographs of the original board markings, connector panel and monitor model label if compatibility confirmation is required.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
