Used Original Mindray Keypad Board for PM-7000 PM-8000E PM-9000E Patient Monitors

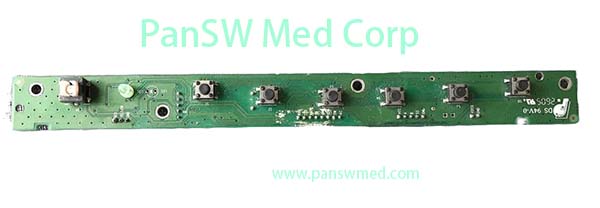

Used original Mindray front keypad PCB for selected PM-7000, PM-8000E and PM-9000E patient monitors. The board includes the tactile switches and indicator components shown in the photograph.
Product Overview
This equipment-pull keypad board receives input from the monitor’s front-panel buttons and transfers the commands to the monitor’s control system. It is suitable for repairing unresponsive, intermittent or physically damaged front-panel controls. Mindray identifies the PM7000, PM8000 and PM9000 as legacy patient-monitoring equipment in its service documentation. Mindray service notice Product Information Product type: Front keypad board / control-button PCB Brand: Mindray Applicable models: Selected PM-7000, PM-8000E and PM-9000E versions Condition: Used original equipment pull Board components: Tactile switches, indicator LED and PCB Included: Keypad board shown Not included: External button membrane, plastic keycaps, rotary encoder, connection cable, front housing or complete monitor Functional status: Confirmed separately in the quotation
Application and Ordering Notes
PM-7000, PM-8000E and PM-9000E monitors may use different keypad-board revisions. Please compare the PCB number, board dimensions, connector position, switch arrangement and monitor serial number before ordering.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
