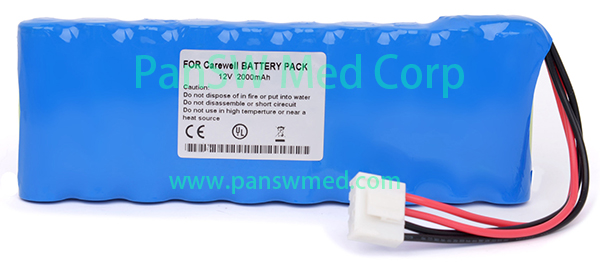

Compatible Ni-MH Battery for Carewell ECG-1101 Series – HX-AA-12-1500, 12V 2000mAh
Blue 12V 2000mAh Ni-MH replacement battery for selected Carewell ECG-1101, ECG-1101G, and ECG-1101B electrocardiographs. Compatible battery reference: HX-AA-12-1500; material number: M05-31152N-04.
Product Overview
This rechargeable Ni-MH battery is designed as a complete compatible replacement for selected Carewell ECG-1101 series electrocardiographs. The replacement battery provides a nominal voltage of 12V, a rated capacity of 2000mAh, and a calculated nominal energy of 24Wh. It has a blue outer covering, measures approximately 143.5 × 50 × 14.5mm, and weighs approximately 293g. The original reference HX-AA-12-1500 appears to indicate a lower-capacity battery version. This PanSW replacement provides 2000mAh, but charging compatibility, connector configuration, and physical fit must be confirmed before ordering. Key Features Compatible with selected Carewell ECG-1101 series machines Complete replacement battery pack Replaces battery reference HX-AA-12-1500 Material reference M05-31152N-04 Rechargeable Ni-MH chemistry Nominal voltage: 12V Rated capacity: 2000mAh Nominal energy: 24Wh Blue outer covering Compatibility confirmation available from PanSW
Application and Ordering Notes
Suitable for:
ECG-1101 series battery replacement
Electrocardiograph maintenance
Hospital biomedical engineering departments
Cardiology-equipment servicing
Medical equipment repair companies
Preventive replacement of aged Ni-MH batteries
PanSW Compatibility Service
PanSW can help confirm compatibility before ordering. Please provide:
Complete ECG-machine model
Photograph of the equipment rating plate
Photograph of the original battery label
Original battery chemistry and capacity
Photograph of the connector and wires
Original battery dimensions
Connector polarity, if available
Equipment serial number or production revision
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
