Replacement Battery for Schiller AT10 / AT10plus / AT110 ECG Machine
Replacement battery for Schiller AT10+, AT10plus, and AT110 ECG machines. Available references include 3.920511 Ni-MH 9.6V 2.5Ah and 3.920509 rechargeable lithium 21.6V 2.3Ah. Related part numbers include 02175, 506161, and 4.350027C. Professional-use replacement battery; please confirm the original battery label, voltage, chemistry, connector, and charger compatibility before ordering.
Product Overview

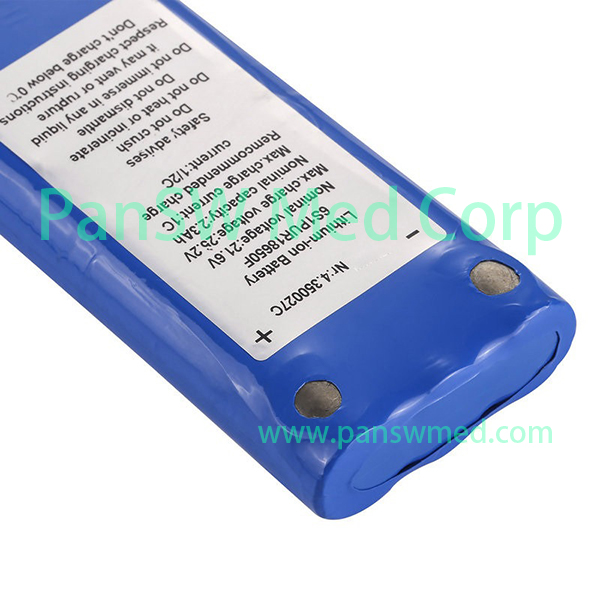

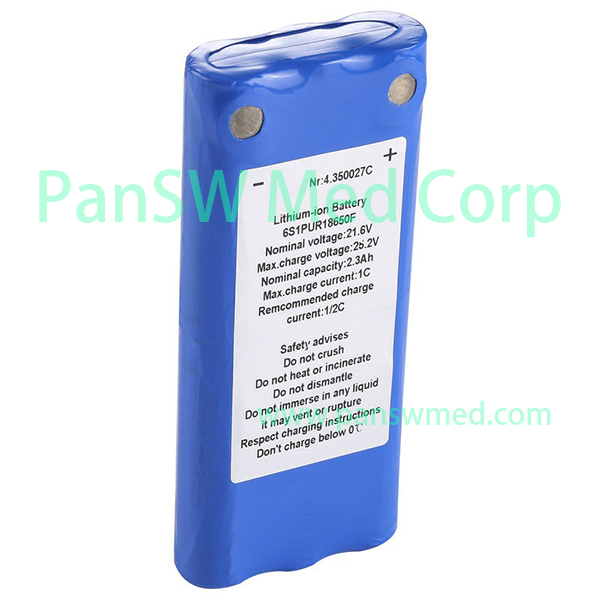

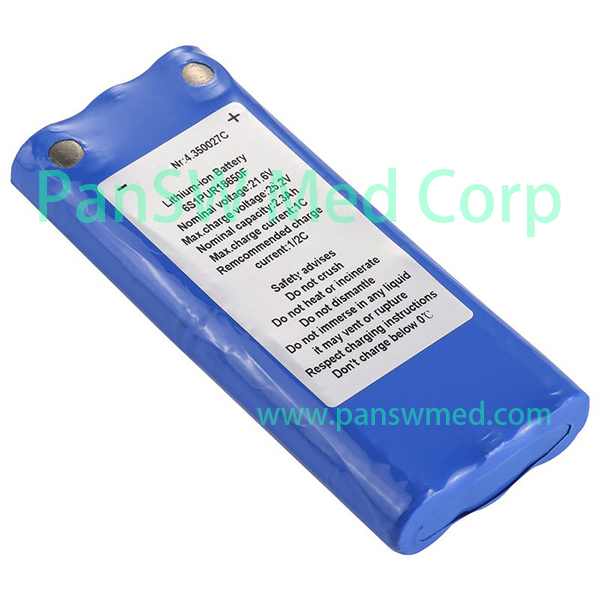

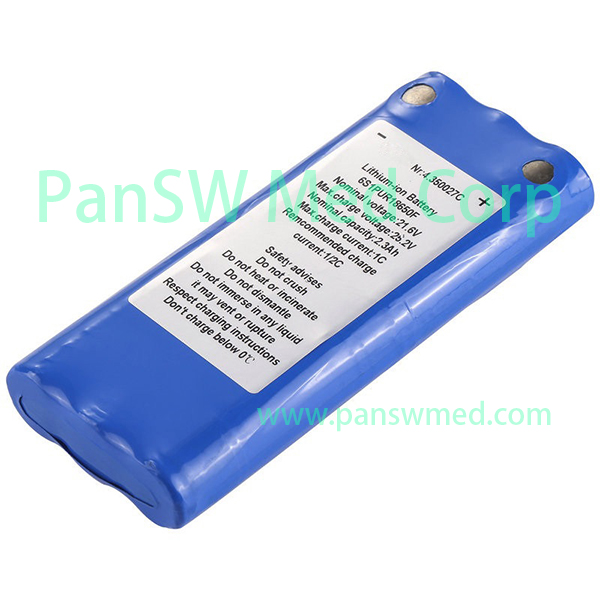

This replacement battery is suitable for compatible Schiller AT10+, AT10plus, and AT110 ECG machine applications. It is designed for professional ECG equipment maintenance, battery replacement, and backup power support. There appear to be two different battery versions for this application, so the original battery label must be confirmed before ordering. One version is listed as a Ni-MH OEM battery, reference 3.920511, rated 9.6V 2.5Ah. Another version is listed as a rechargeable lithium battery, reference 3.920509, rated 21.6V 2.3Ah, with dimensions 139 × 58 × 19 mm and weight approximately 290g. Related part numbers include 02175, 506161, and 4.350027C. Because the voltage and chemistry are very different between the Ni-MH and lithium versions, these batteries should not be treated as automatically interchangeable. Please confirm the ECG model, original battery part number, voltage, chemistry, connector, polarity, and charger compatibility before ordering.
Application and Ordering Notes
Each battery can be checked for voltage, capacity, appearance, connector condition, polarity, and basic charge-discharge performance before shipment.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
