Replacement Battery for TRISMED CARDIPIA 400 400H 800H – 35010014 – 19.2V 2200mAh Ni-MH
Rechargeable 19.2V 2200mAh Ni-MH replacement battery for selected TRISMED CARDIPIA electrocardiographs, including CARDIPIA 400, 400H, 800H, 406NH and 406RH. Compatible battery reference: 35010014.
Product Overview

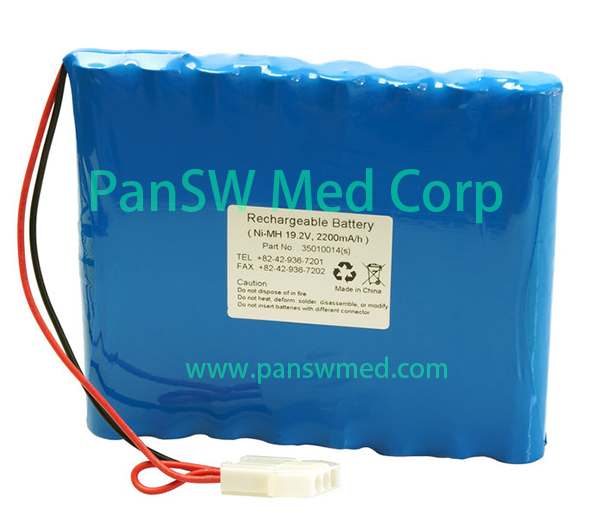

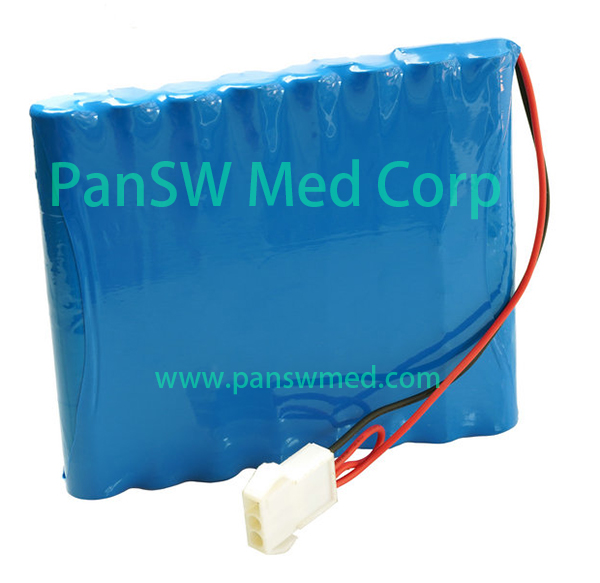

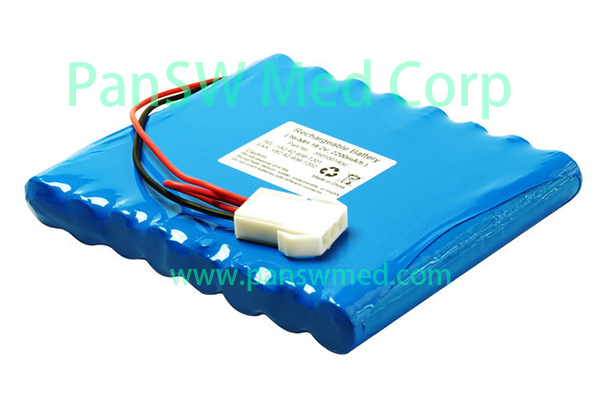

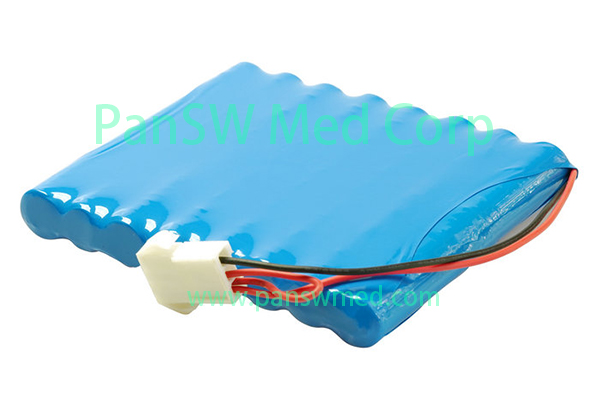

This rechargeable Ni-MH battery is designed as a compatible replacement for selected TRISMED CARDIPIA electrocardiographs. It provides a nominal voltage of 19.2V and a rated capacity of 2200mAh, equivalent to approximately 42.2Wh. The battery is designed to provide temporary internal power when AC power is unavailable or interrupted. Specifications Battery type: Rechargeable Ni-MH Nominal voltage: 19.2V Rated capacity: 2200mAh / 2.2Ah Rated energy: Approximately 42.2Wh Colour: Blue Weight: Approximately 451g Dimensions: 117 × 100 × 15mm Application: Electrocardiograph Condition: Compatible replacement battery
Application and Ordering Notes
TRISMED documentation indicates that some CARDIPIA 400H versions originally used a lower-capacity battery, while the CARDIPIA 800H uses the 2200mAh version. Replacement suppliers also list upgraded 2000–2200mAh packs for several 400-series machines.
Please confirm the original voltage, battery dimensions, connector, cable arrangement and available compartment space with PanSW before ordering.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
