Rotary encoder control-board assembly for the front-panel navigation control of a compatible Biocare iM12 patient monitor.
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
WhatsApp: +86 136 8886 0726
sales@panswmed.com
| Brand | Biocare |
|---|---|
| Compatible Model | iM12 |
| Product Type | Maintenance Part |
| Category | Machine maintenance parts |
| Compatible brand | Biocare |
| Compatible model | iM12 |
| Equipment type | Patient monitor |
| Product type | Rotary encoder control board |
| Assembly configuration | Encoder mounted on PCB |
| Control shaft | Metal |
| PCB mounting holes | Two visible |
| External control knob included | No |
| Wiring harness included | Not shown |
| Front housing included | No |
| Complete monitor included | No |
| Individual part number | Not visible |

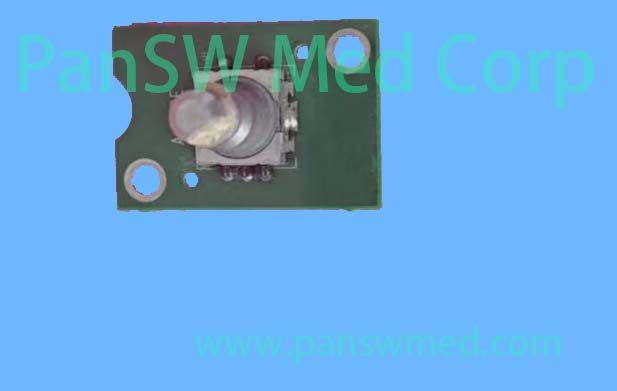

This rotary encoder control-board assembly is intended for the repair of a compatible Biocare iM12 patient monitor. The assembly consists of a rotary encoder mounted on a dedicated printed circuit board with equipment mounting points. It is installed behind the monitor’s front panel and provides rotary control input for navigating menus and adjusting monitor settings. The product supplied is one encoder PCB assembly as shown. The external control knob, wiring harness, front housing, main board and complete patient monitor are not included unless specifically stated.
Before ordering, compare:
Exact monitor model and hardware revision
PCB dimensions and shape
Mounting-hole positions
Encoder shaft diameter, length and profile
Number of encoder positions or detents
Push-switch function, if required
Electrical interface and pin arrangement
Board markings and part number
Orientation behind the front housing
Please provide photographs of both sides of the existing board and its electrical connection if compatibility confirmation is required.
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
Send the model, part number and a clear photo.
