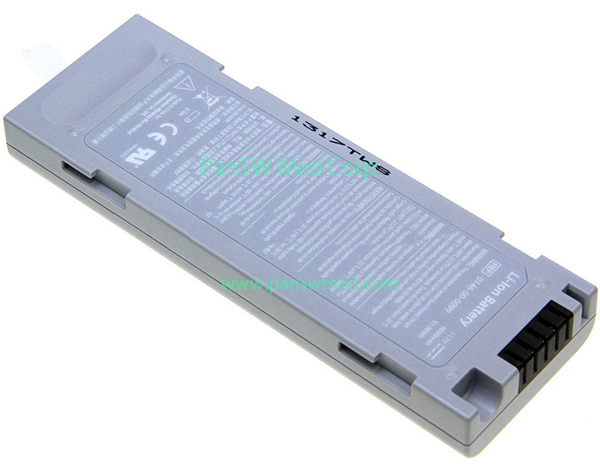

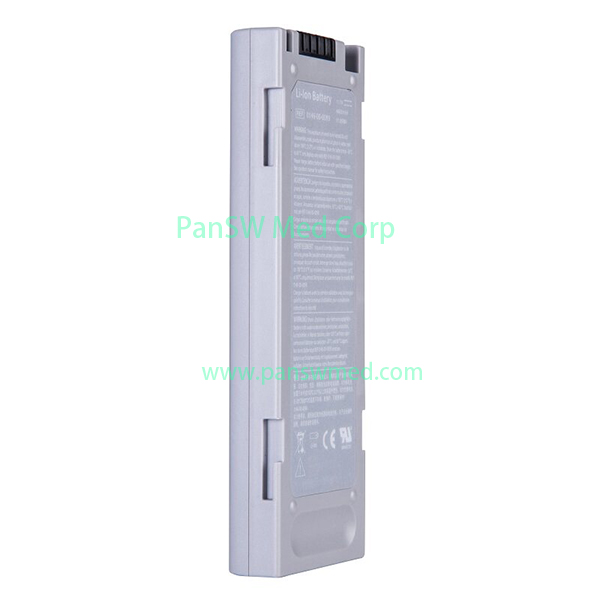

This rechargeable Li-ion battery is designed as a compatible replacement for selected Mindray and Datascope patient monitors, including the DPM3, DPM4, DPM5, PM7000, Passport, Spectrum and Accutorr series. The battery provides a nominal voltage of 11.1V, a rated capacity of 4600mAh and nominal energy of 51.06Wh. It cross-references battery part numbers 0146-00-0069, 0146-00-0099 and M05-010001-06. Specifications Battery type: Rechargeable Li-ion Nominal voltage: 11.1V Rated capacity: 4600mAh Nominal energy: 51.06Wh Dimensions: 181 × 61.5 × 22.9mm Approximate weight: 390g Product type: Compatible patient-monitor battery
Application and Ordering Notes
The listed monitors may have different battery versions depending on their production date and hardware configuration. Please confirm the original battery part number, dimensions, connector and polarity before ordering.
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
