Compatible HP M1733A M1735A 3-lead defibrillation patient monitor ECG cable withleadwire

Compatible HP M1733A M1735A 3-lead defibrillation patient monitor ECG cable withleadwire is a compatible ecg cable / ecg leads supplied by PanSW Med for patient monitor maintenance, replacement, and distributor ordering.

Product Details

Product type: Compatible ECG cable / ECG leads
Compatibility: 43100A/43110A/43110M/43120A/MC Defib, 43200A Portable, M3500B,77000AC/77020A,77010AC Sonos/AC/AR, 77025A, 77030A, 77035A, 77040A, 78208A, 78210A, 78330A, 78331A, 78332A, 78333A, 78341A, 78342A, 78345A, 78346A, 78351T, 78
Description: Connector: round 8 pin; 3-leadwire, with defibrillation resistor; terminal:4.0 snap.TPU jacket cable; dual shielding structure; Compatible with: 43100A/43110A/43110M/43120A/MC Defib, 43200A Portable, M3500B,77000AC/77020A,77010AC Sonos/AC/AR, 77025A, 77030A, 77035A, 77040A, 78208A, 78210A, 78330A, 78331A, 78332A, 78333A, 78341A, 78342A, 78345A, 78346A, 78351T, 78352A/C, 78353A/B, 78354A, 78532A/B, 78534A/B/C, 78619A, 78620A, 78660A/B, 78661A/B, 78670A, 78671A, M1722A/B, M1723A/B, M2400A, M2406A, Sonos2000/2500,tems,M2425A,M2475B; Sono 5500; HEARTSTART XLT
heartstart xlt ECG cable connector

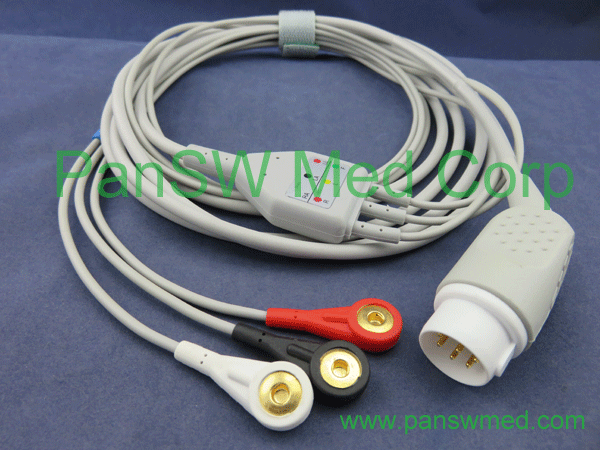

ECG cable for Philips heartstart xlt 3 leads IEC snap

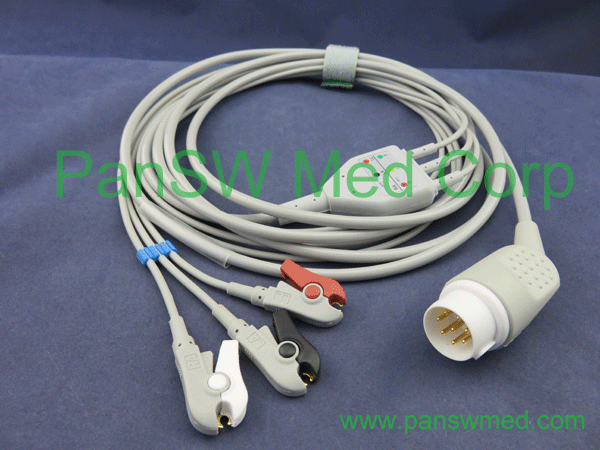

ECG cable for heartstart xlt 3 leads AHA clip

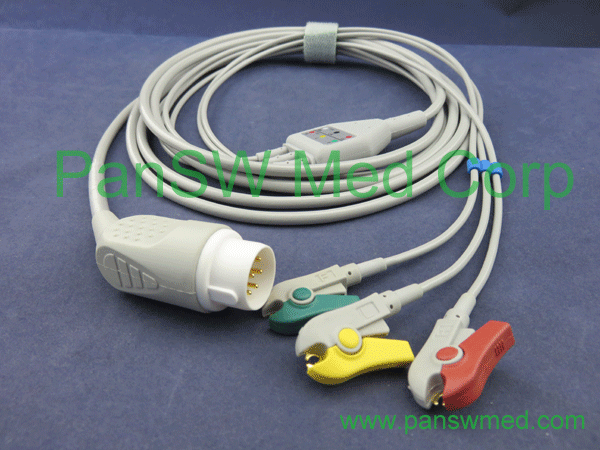

ECG cable for heartstart xlt 3 leads IEC clips

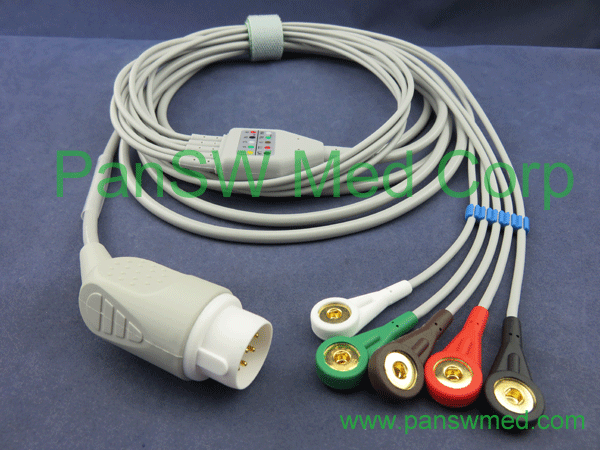

heartstart xlt ECG cable 5 leads AHA snap

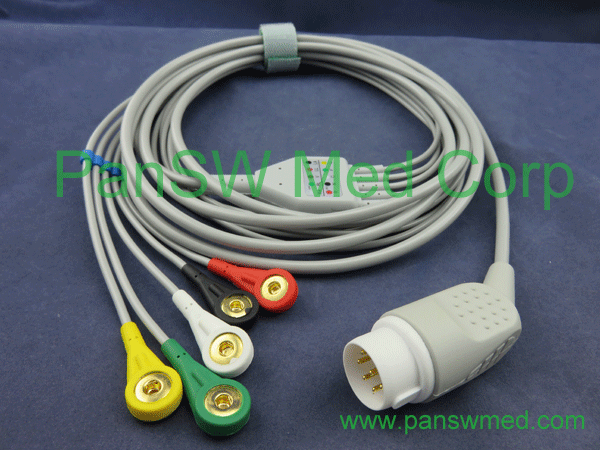

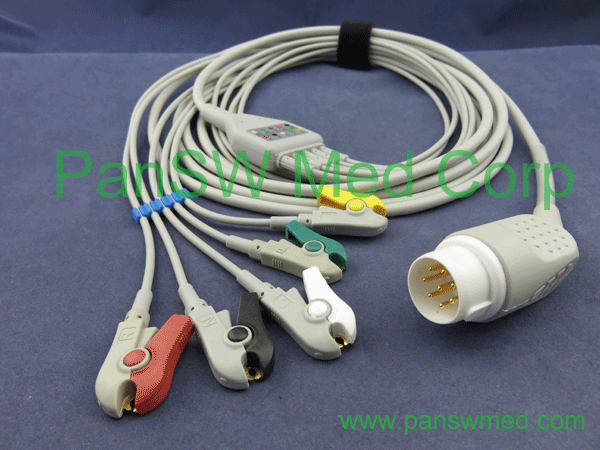

ECG cable for heartstart xlt IEC snap 5 leads
ECG cable for philips heartstart xlt 5 leads ECG clip AHA color

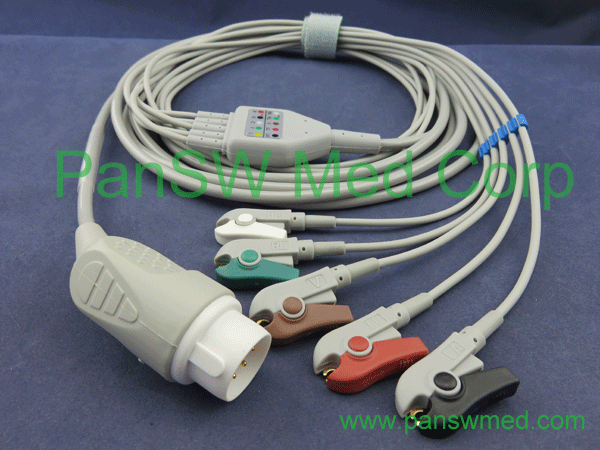

ECG cable for heartstart xlt 5 leads AHA clip
Medical TPU jacket cable with shielded conductor design for stable ECG signal transmission.
AHA/AAMI and IEC color coding options can be supplied according to the requested configuration.
Snap, clip/grabber, and other patient-end options are available when applicable.
Confirm connector style, lead count, color standard, and electrode terminal before ordering.

Part Numbers and Configuration Notes

Part No	OEM No	Description
ECG-10013A	M1733A	3-lead, AHA, Snap
ECG-10013B	M1735A	3-lead, IEC, Snap
ECG-10013C		3-lead, AHA, Clip
ECG-10013D		3-lead, IEC, Clip
ECG-10013E	M1734A	5-lead, AHA, Snap
ECG-10013F	M1736A	5-lead, IEC, Snap
ECG-10013G		5-lead, AHA, Clip
ECG-10013H		5-lead, IEC Clip

Application and Ordering Notes

Used for ECG signal connection between compatible patient monitors/modules and patient-side ECG electrodes. Please confirm monitor model, monitor-side connector, lead count, color standard, cable length, and patient-end terminal before ordering.
